Beretta V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>

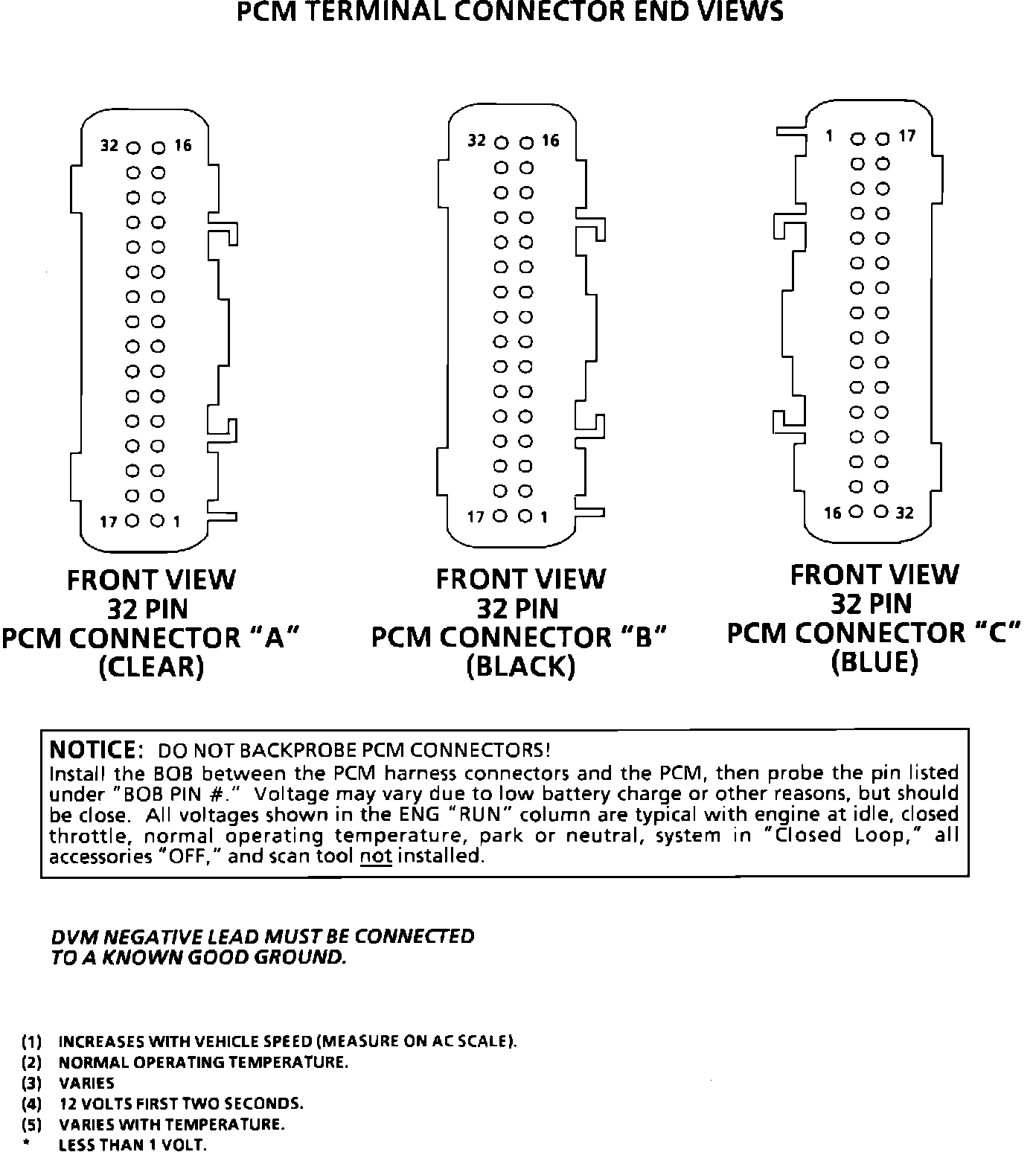

PCM Terminal Connector End Views
PCM Terminal Connector End Views
PCM Connector Pin-Out:
