SIR Wiring Diagrams

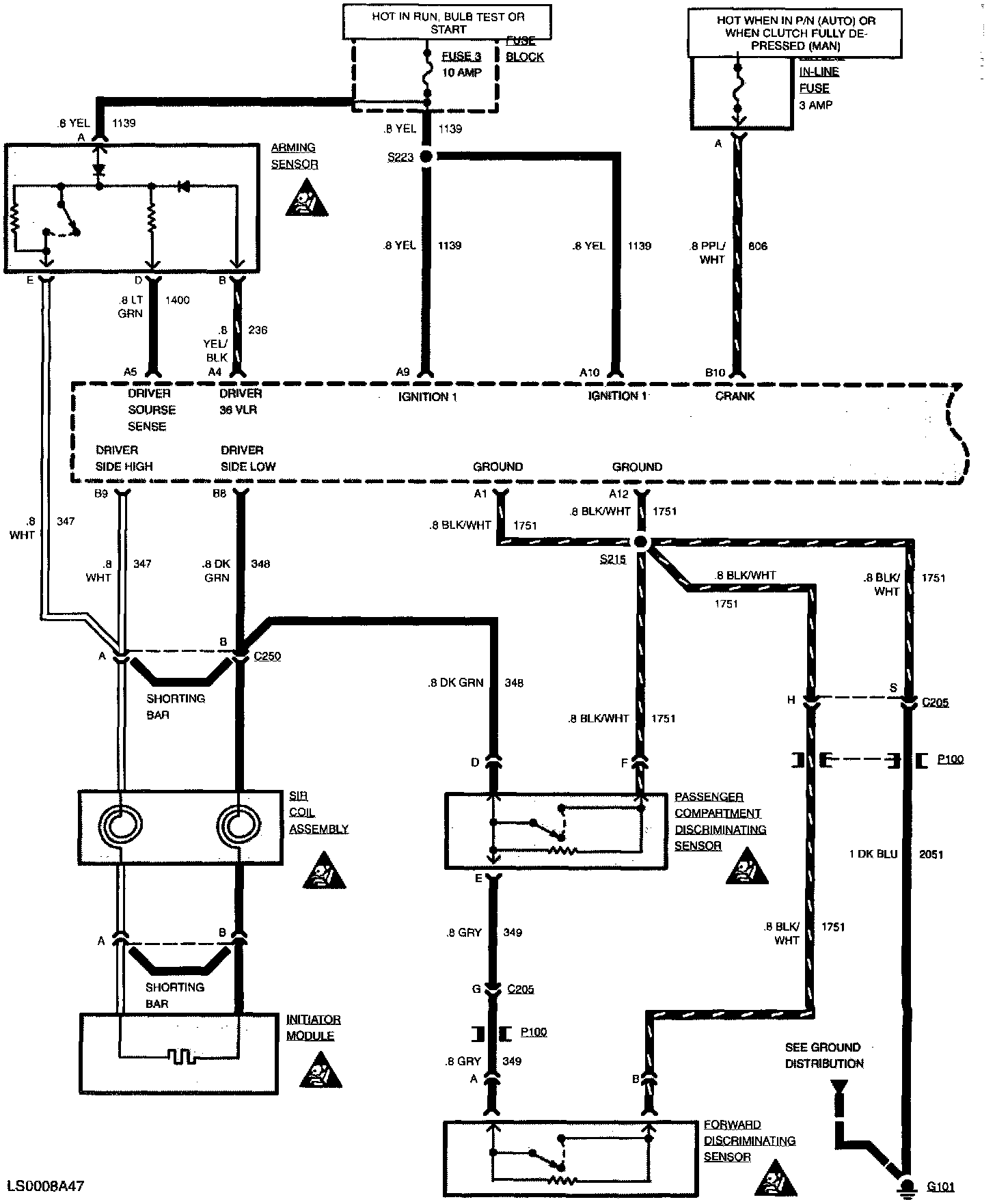

Supplemental Inflatable Restraint (SIR) (1 Of 2 ):



Supplemental Inflatable Restraint (SIR) ( 2 Of 2 ):
