System Diagnosis

Air Valve Position Chart:

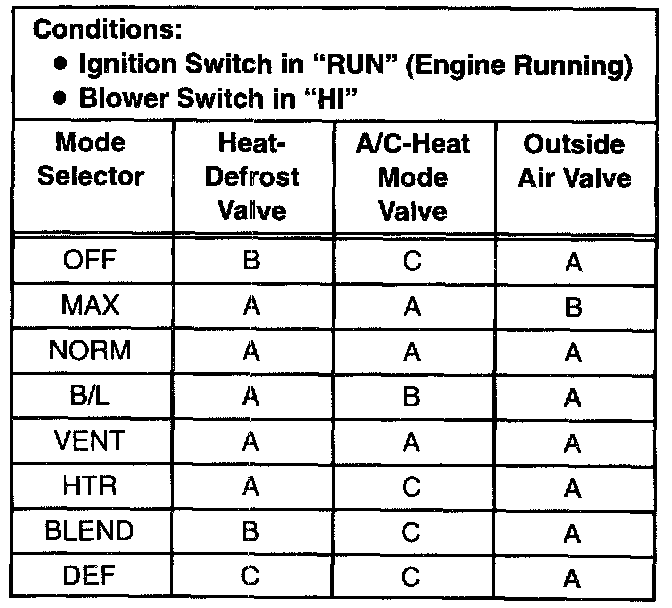

AIR VALVE POSITION CHART
^ If airflow does not come from the proper outlets under one or more operating models, check the operation of the valves using the following chart.
^ Detailed tests of the HVAC Vacuum System are given in
