Gauges Cluster

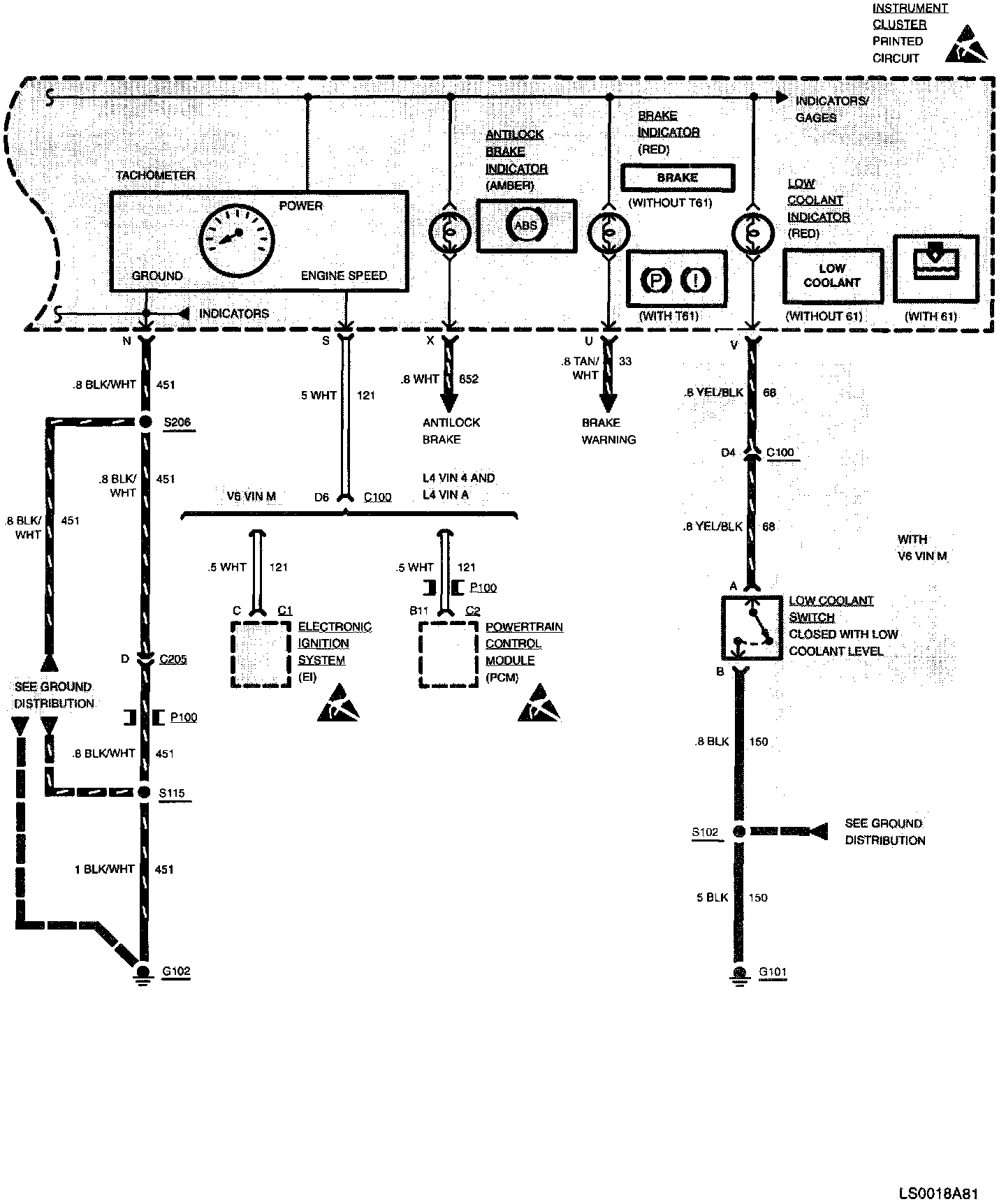

Instrument Panel : With Gages Cluster UB3 ( 1 Of 5 ):

Part 1 of 5

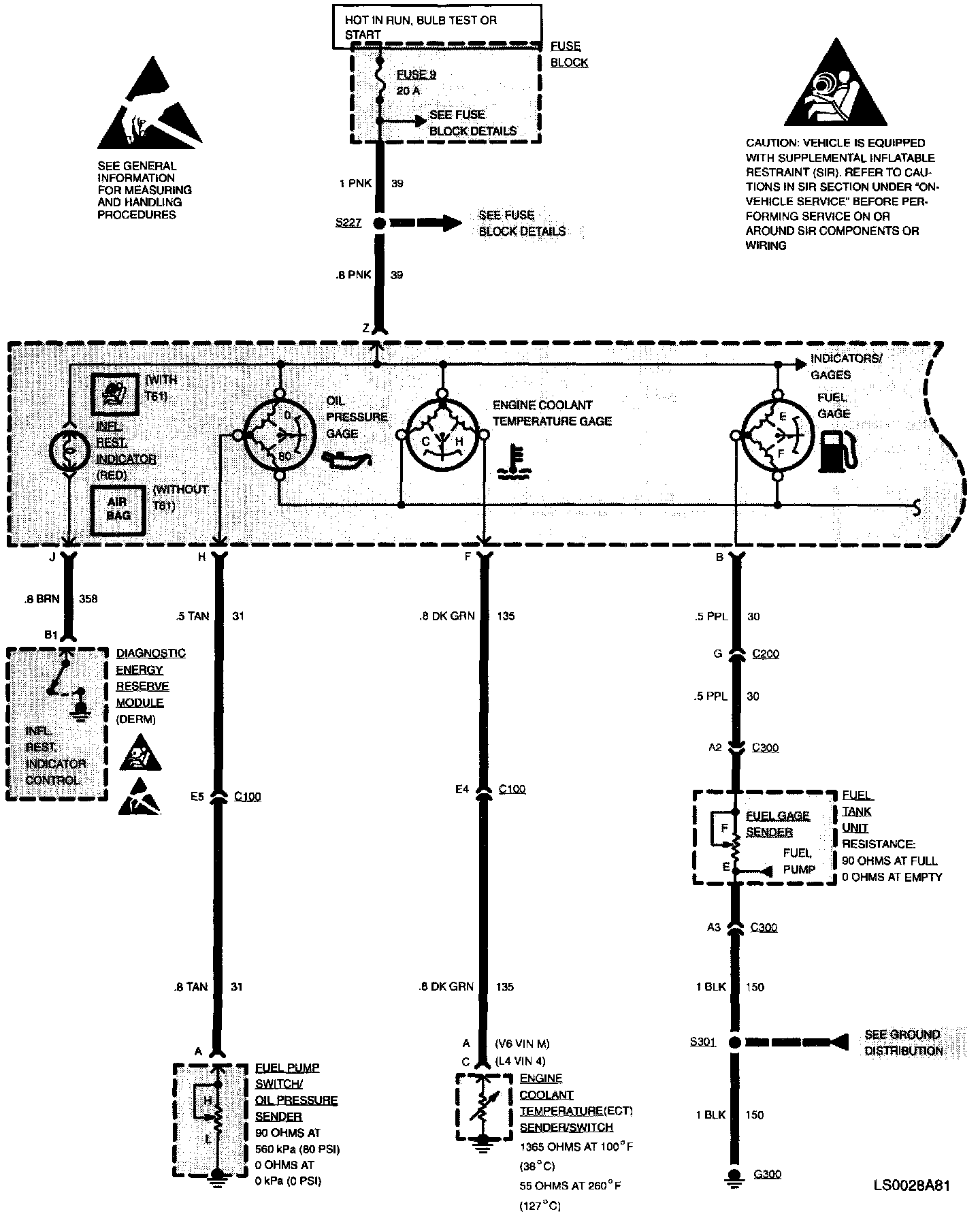

Instrument Panel : With Gages Cluster UB3 ( 2 Of 5 ):

Part 2 of 5

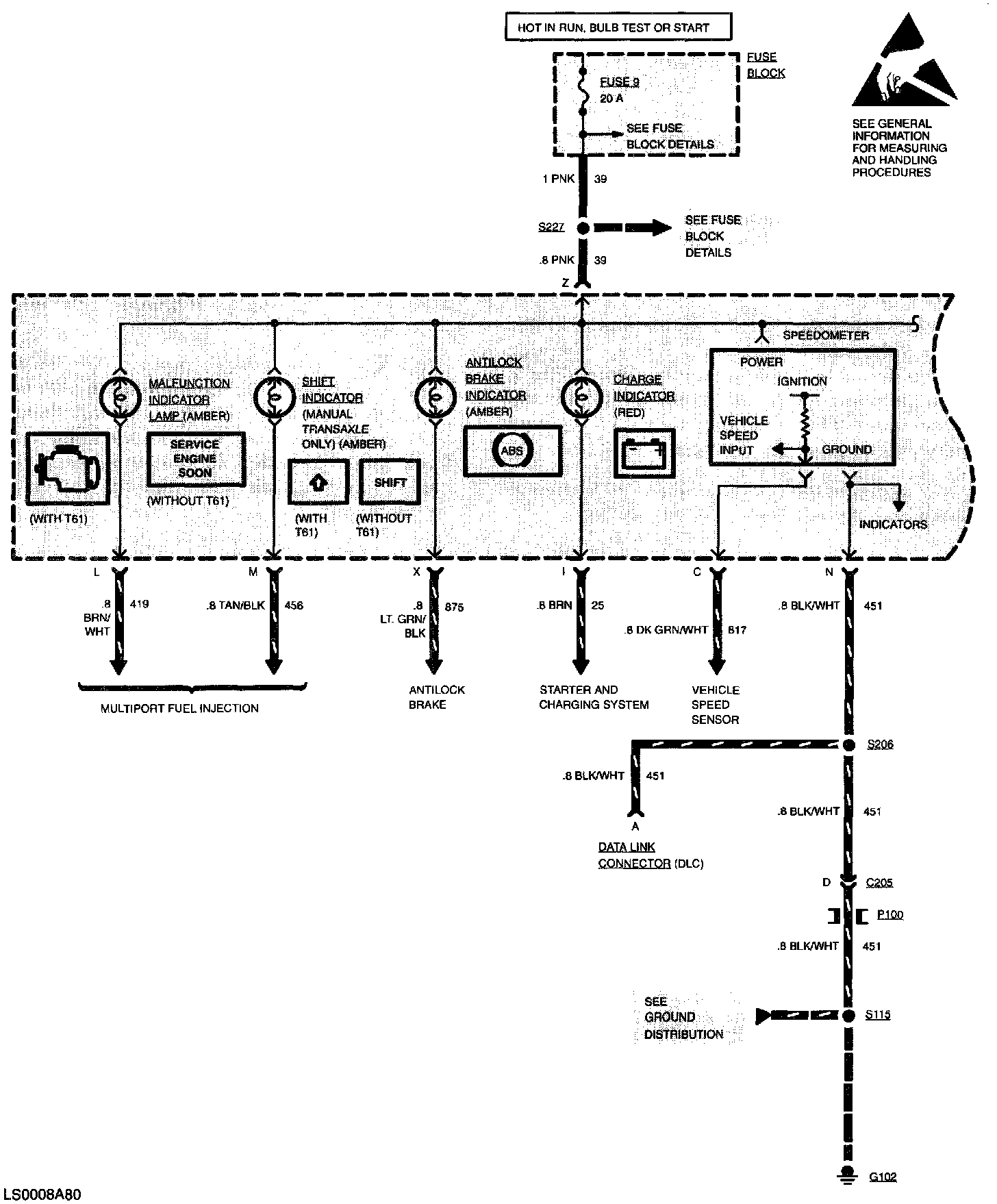

Instrument Panel : With Gages Cluster UB3 ( 3 Of 5 ):

Part 3 of 5

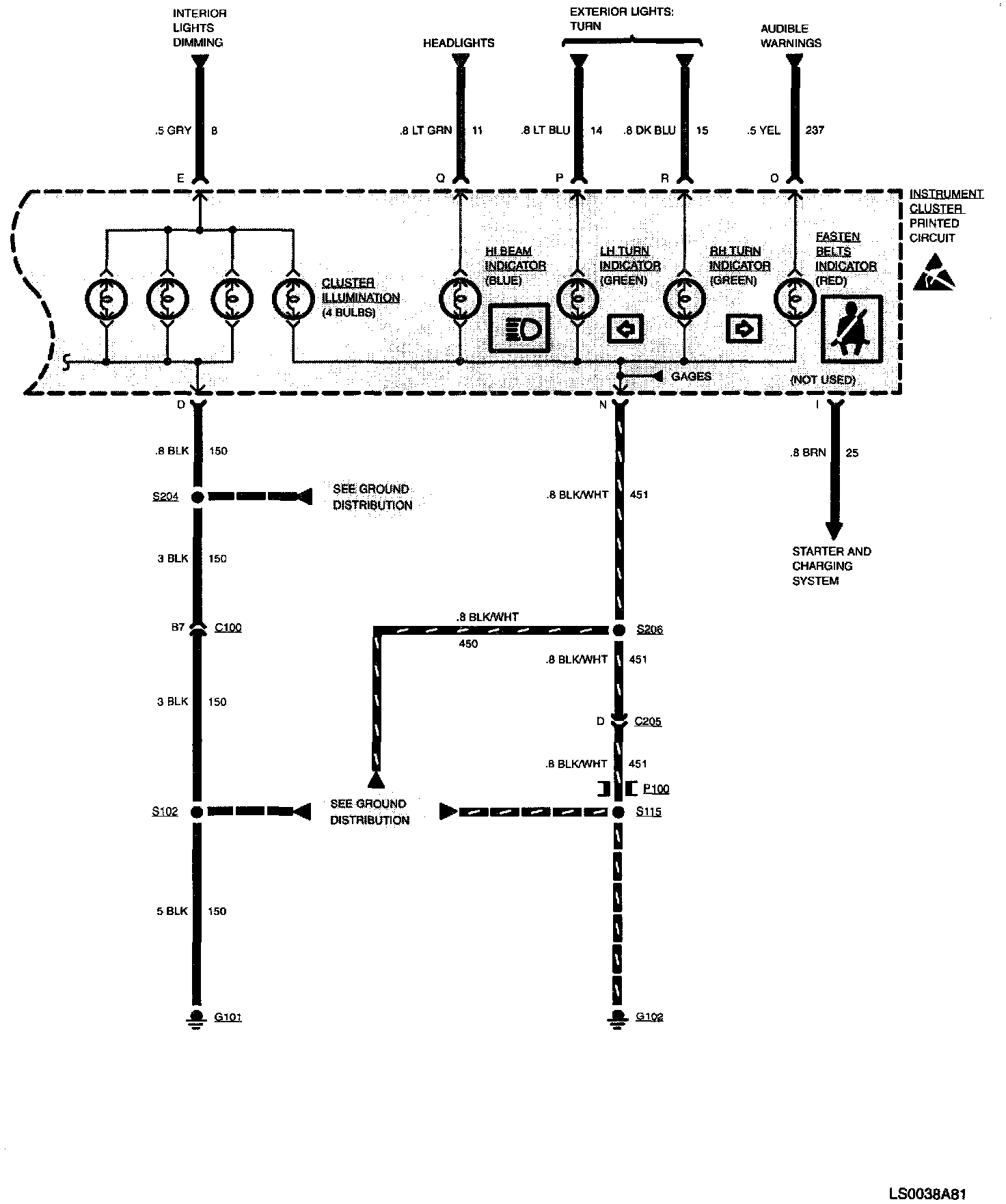

Instrument Panel : With Gages Cluster UB3 ( 4 Of 5 ):

Part 4 of 5

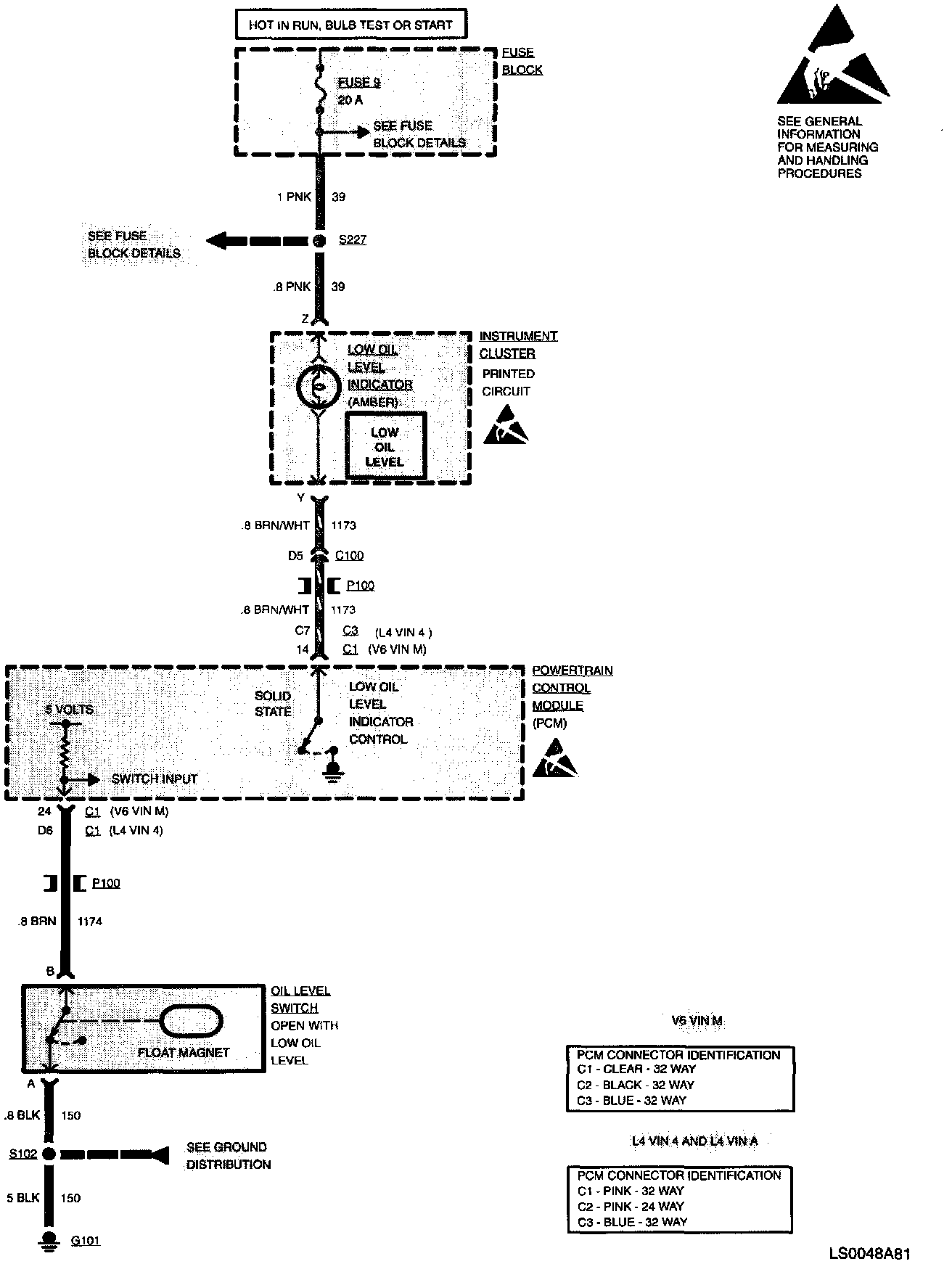

Instrument Panel : With Gages Cluster UB3 ( 5 Of 5 ):

Part 5 of 5
