Beretta V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Charts - Base Cluster
>>
Chart 3 Low Coolant Indicator Doesn't Operate Properly
Chart 3 Low Coolant Indicator Doesn't Operate Properly

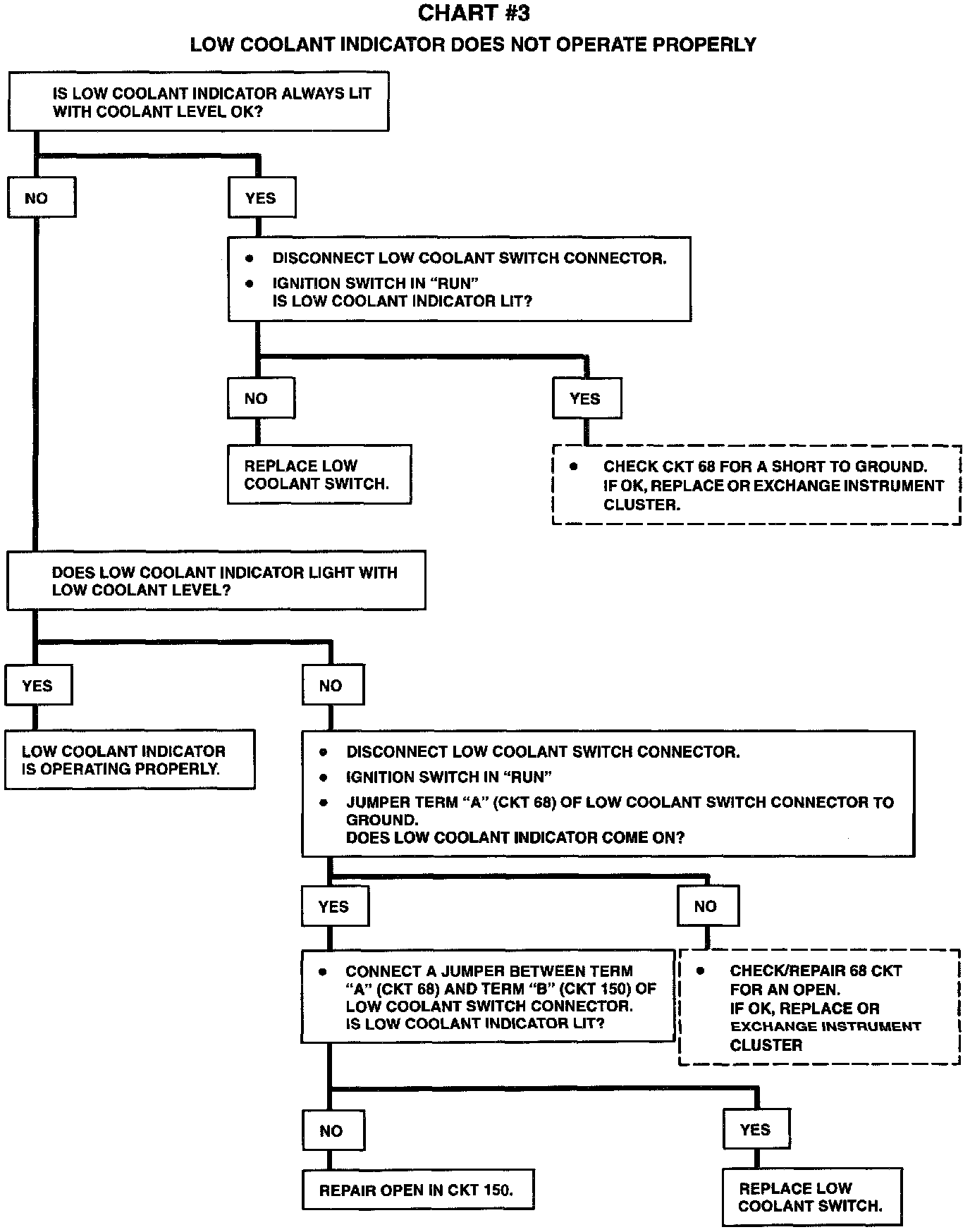

Chart # 3 - Low Coolant Indicator Does Not Operate Properly:
