Beretta V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Fuses
>>
Fuses 2, 3, 5 and 8
Fuses 2, 3, 5 and 8

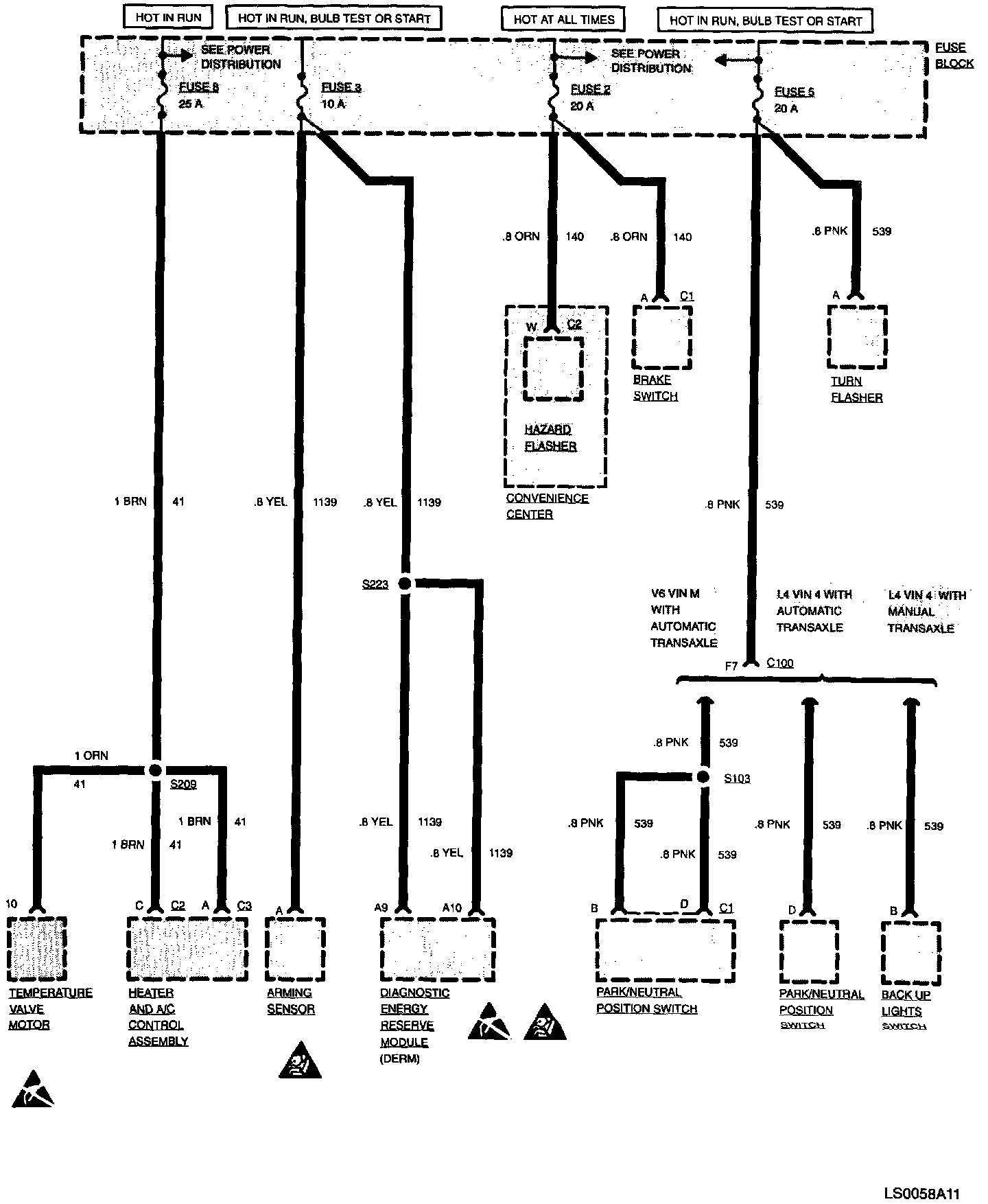

Fuse Block Details: Fuses 2,3,5 And 8:
