Home >> Chevrolet >> 1995 >> Beretta V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> Fuses 7 and 13

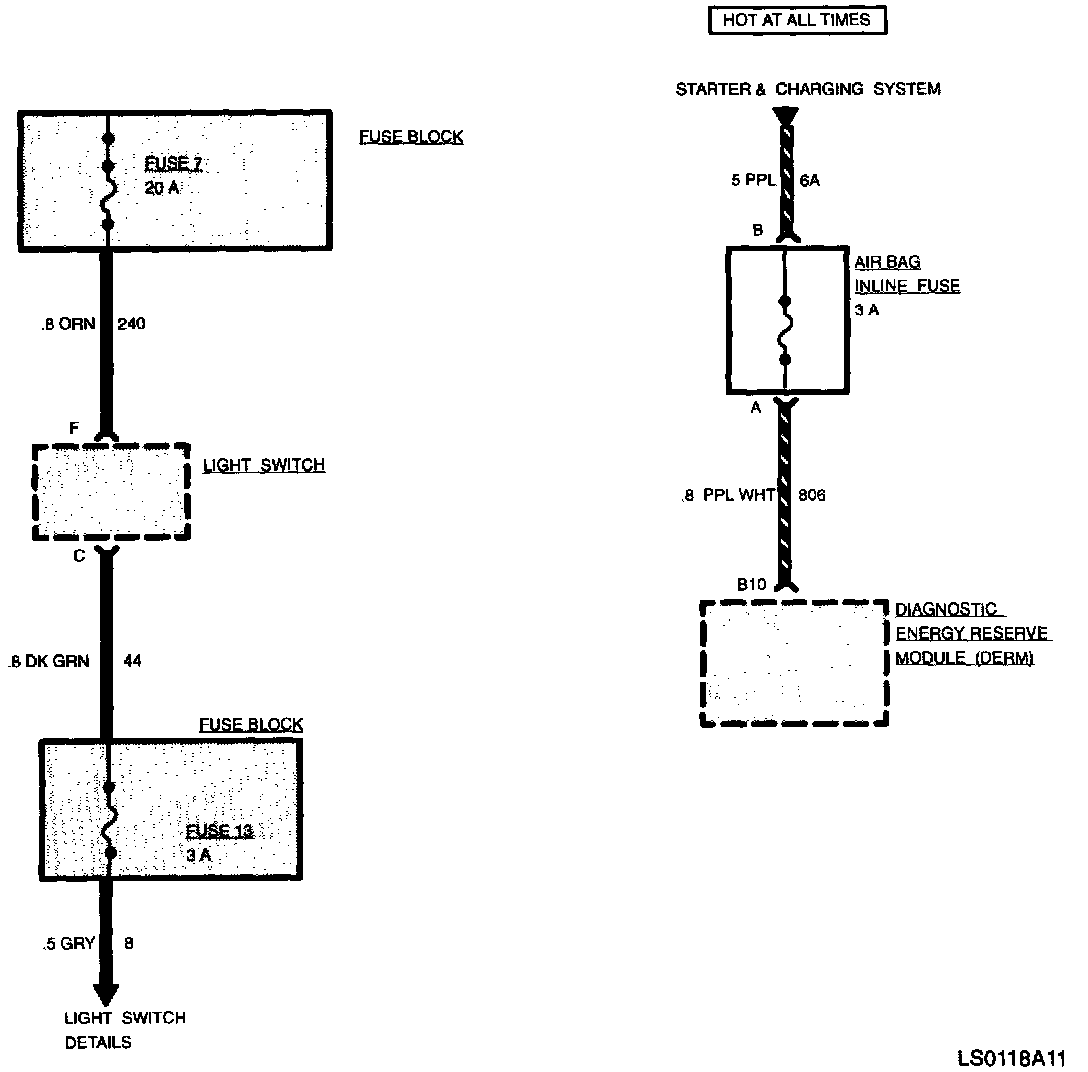

Fuses 7 and 13

Fuse Block Details: Fuses 7 And 13:
