Home >> Chevrolet >> 1995 >> Beretta V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Power and Ground Distribution >> Technical Service Bulletins >> All Technical Service Bulletins >> Various Body Electrical Systems - Manual Update >> Cruise Control Module Wiring Diagram Pg. 8A-34-1

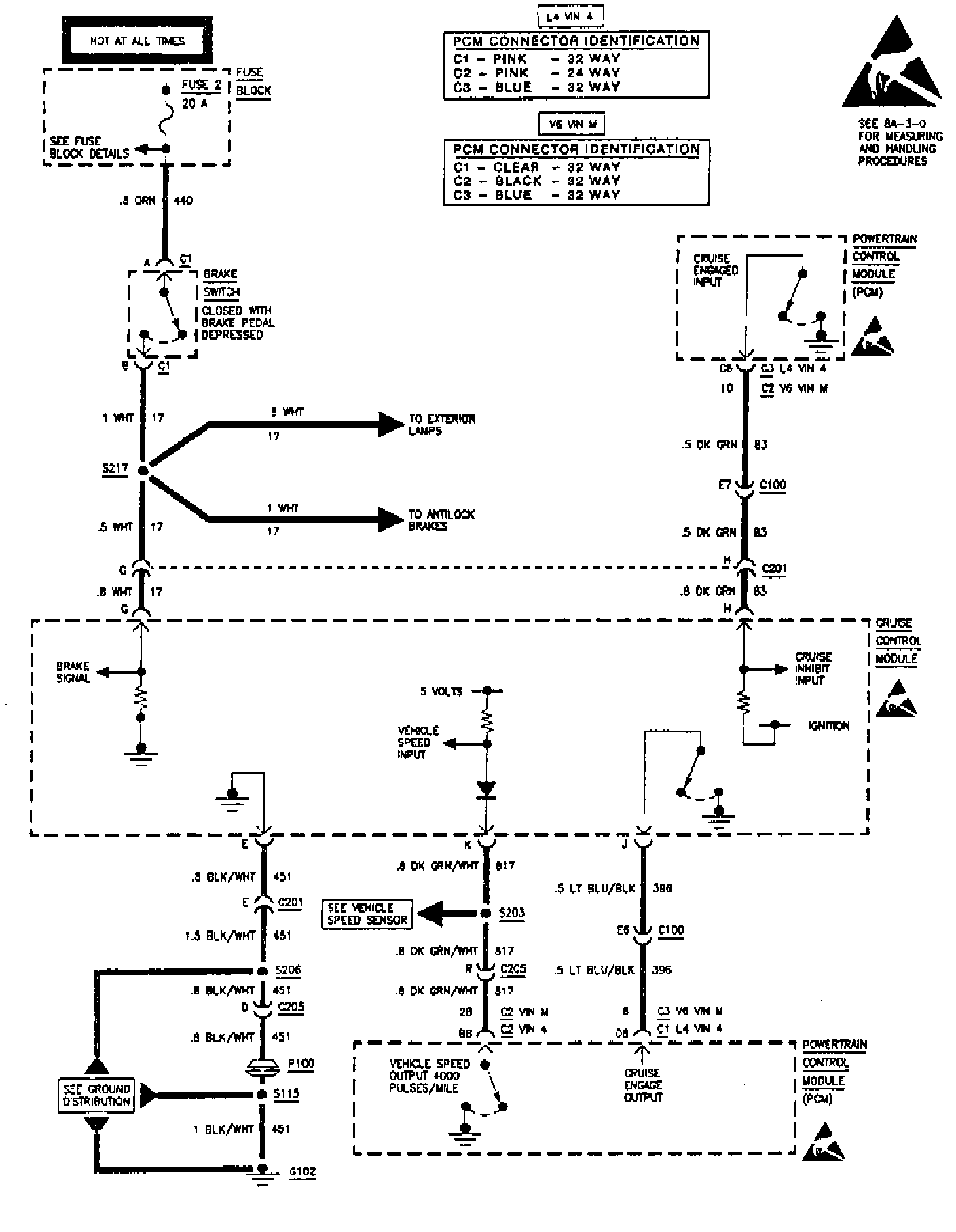

Cruise Control Module Wiring Diagram Pg. 8A-34-1
