Manifold Pressure/Vacuum Sensor: Service and Repair

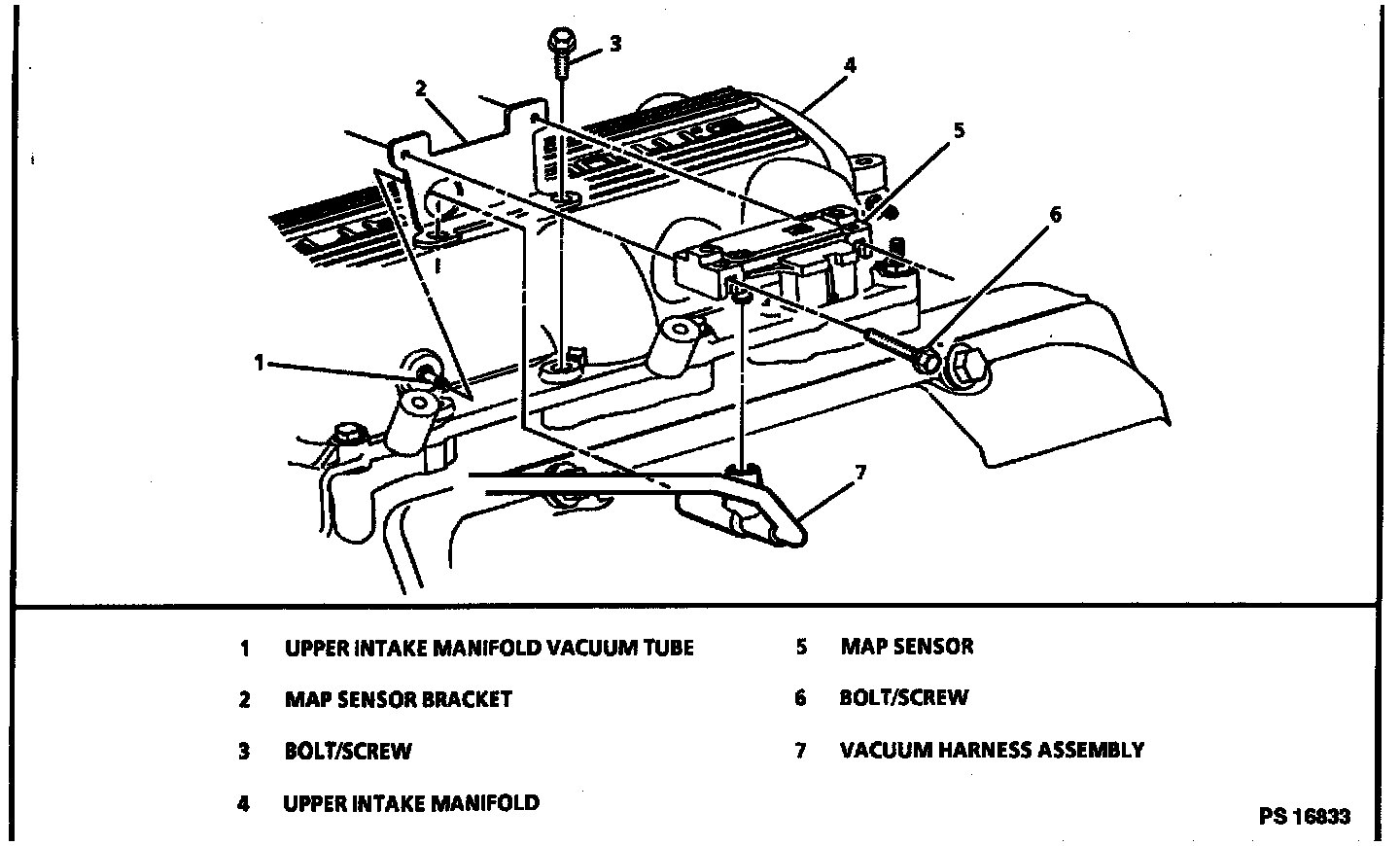

Manifold Absolute Pressure (MAP) Sensor Service:

REMOVE OR DISCONNECT

1. Negative battery cable.
2. MAP sensor retaining clip from engine bracket.
3. Electrical connector.
4. Inlet vacuum hose.
5. MAP sensor retainer and MAP sensor.
6. Retainer from MAP sensor.

INSTALL OR CONNECT

1. MAP sensor to retainer.
2. Electrical connector.
3. Inlet vacuum hose.
4. MAP sensor and retainer to engine bracket.
5. Negative battery cable.
6. Retaining clip.
