Brake Switch, Solenoids and TFT Sensor
Brake Switch, Solenoids and TFT Sensor

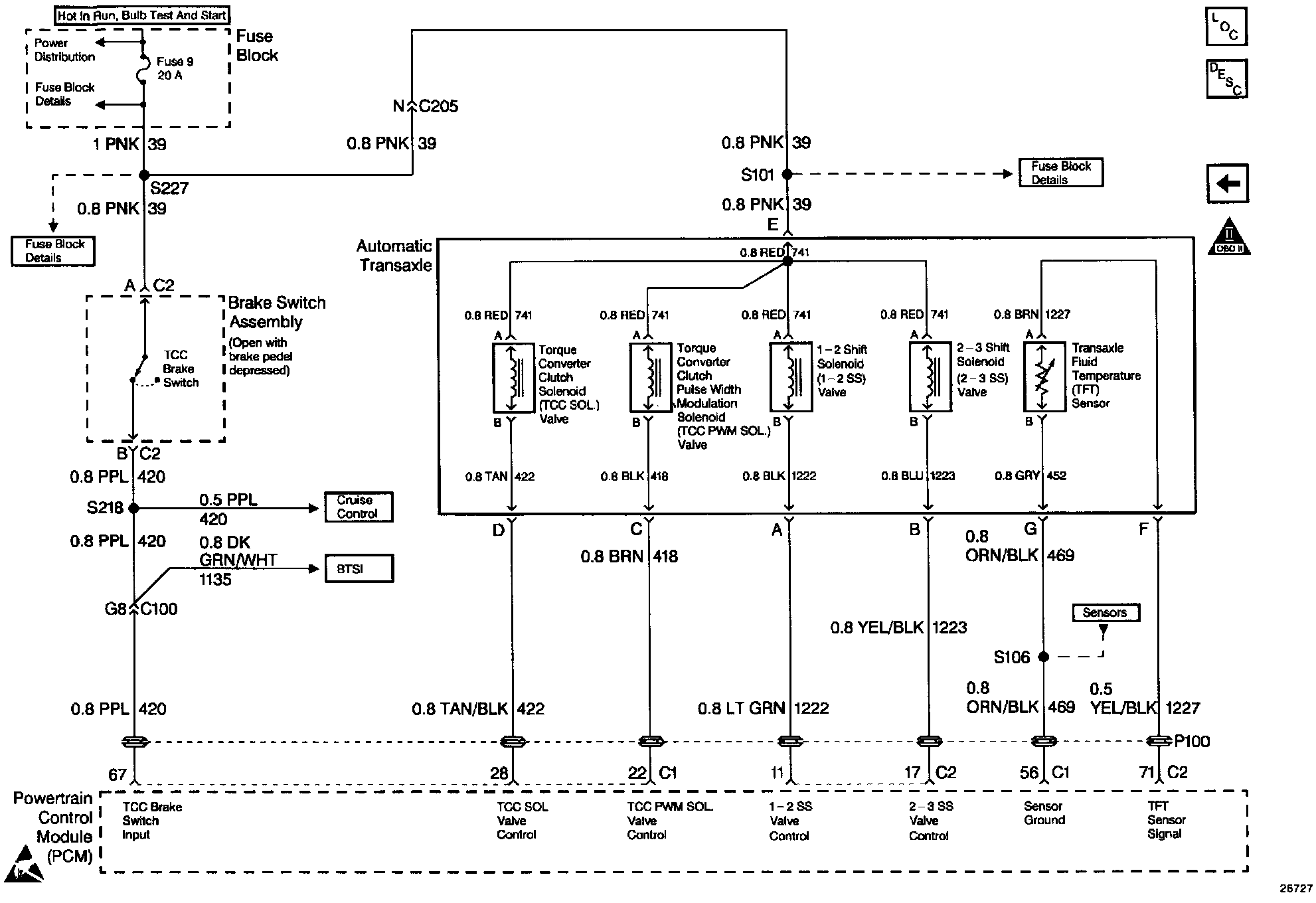

Automatic Transmission Controls - (Brake Switch, Solenoids, And TFT Sensor):
