Power Window Switch: Diagrams

Console Window Switch:

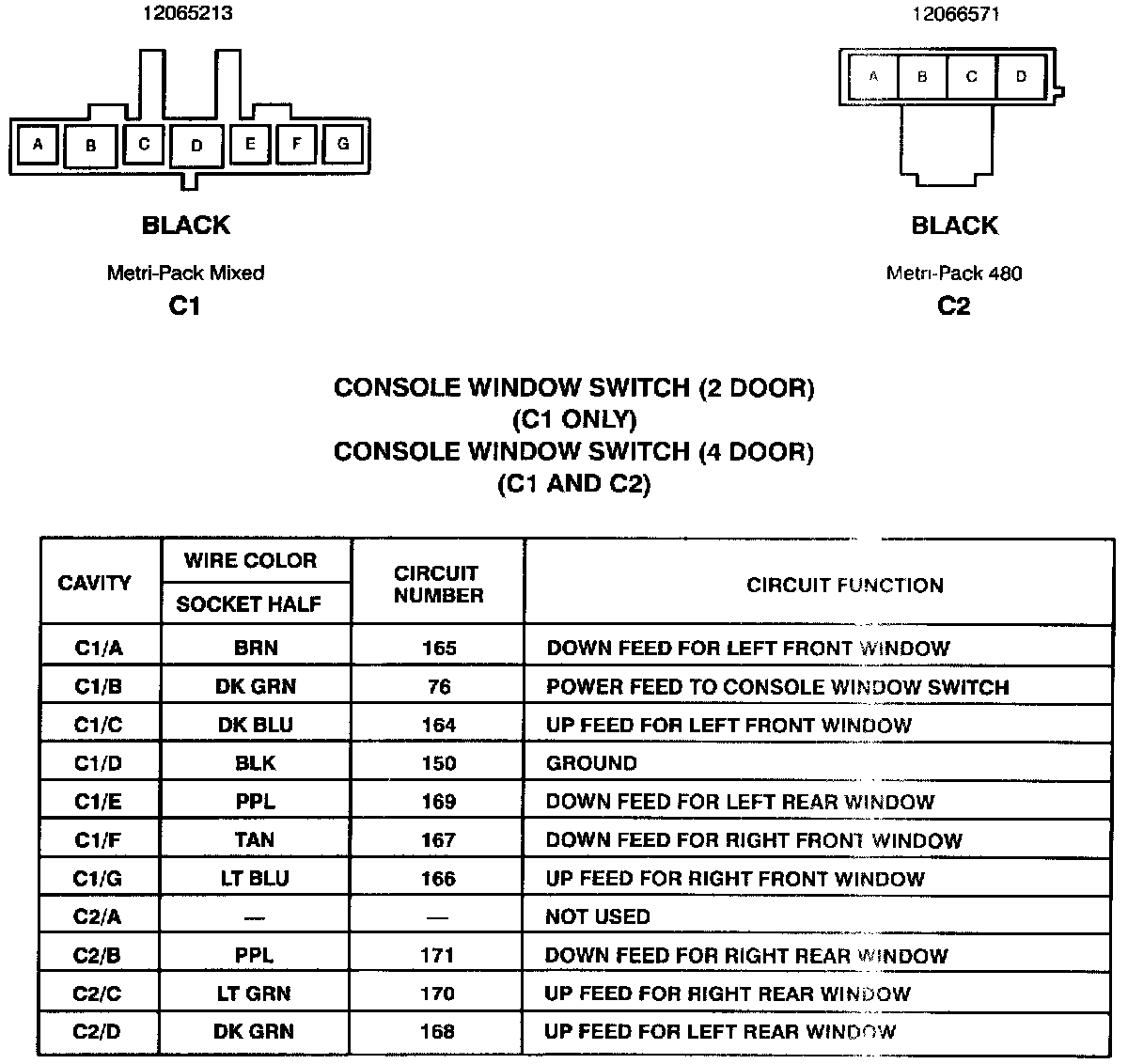

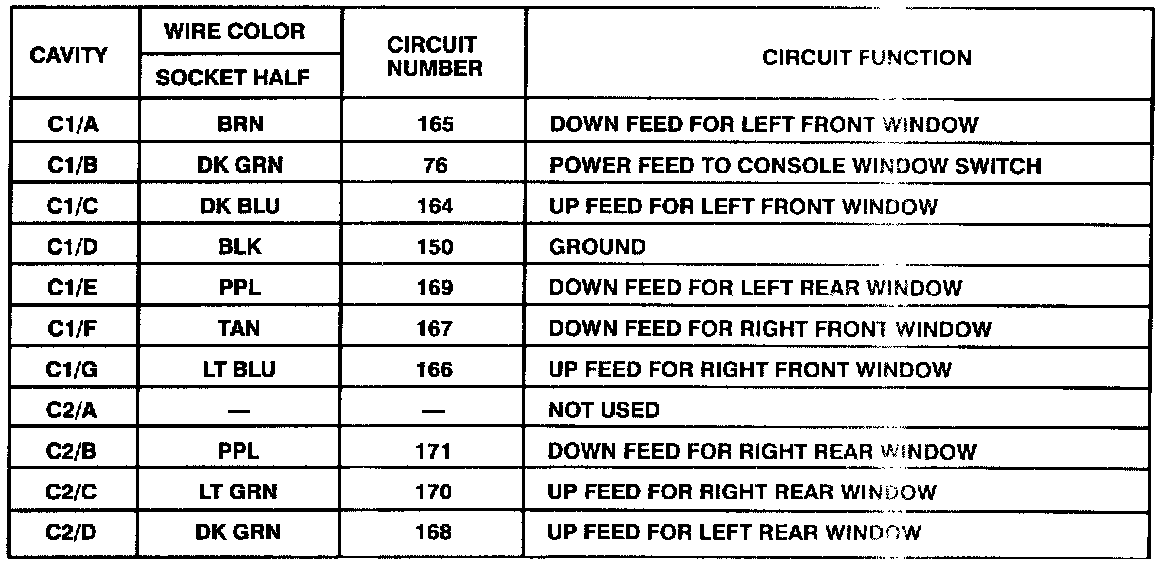

Console Window Switch (2 And 4 Door):

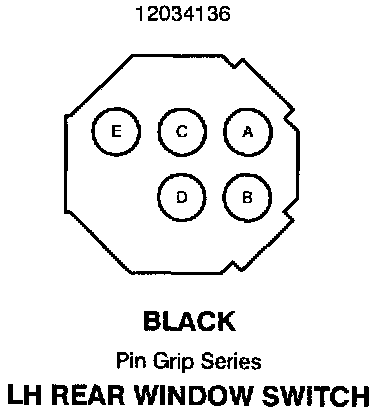

LH Rear Window Switch:
