Door Glass, Front - Binding or Popping
File In Section: 10 - BodyBulletin No.: 93-10-09
Date: September, 1994
Subject:
Binding or Popping Front Door Glass/Road Noise
(Adjust Stabilizer)
Models:
1988-95 Chevrolet Beretta, Corsica
This bulletin is being revised to add 1990-95 model years.
Previous divisional publication numbers were:
Chevrolet 89-131-10
GM of Canada 89-2-149
Condition
Some owners may comment on a binding or popping noise on the front door glass when the glass is initially rolled down, or road noise caused by a gap between the front door glass and inner belt sealing strip with the glass in full up position.
Cause
The conditions may be caused by a misadjusted regulator arm stabilizer plate.
Correction (See Illustration)
The stabilizer may be adjusted inboard or outboard by bending with locking pliers. It may be considered to be adjusted properly when:
1. There is enough inboard pressure to prevent glass moving outboard, creating gaps of inner belt strip to glass, BUT;
2. Not so much inboard pressure to increase binding of the regulator arm to the stabilizer.
3. After necessary adjustment has been completed, lightly coat the outboard surface of the regulator arm and the inboard surface of the stabilizer arm where they come in contact with Lubriplate GM P/N 1052196 or equivalent.
Parts Information
Parts are currently available from GMSPO.

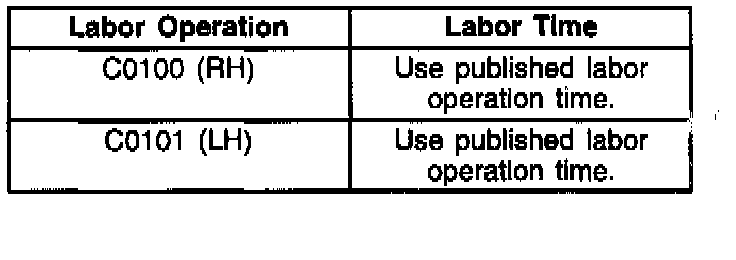

Warranty Information
