Home >> Chevrolet >> 1995 >> Corvette V8-350 5.7L VIN P MFI >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Distributor >> Diagrams

Distributor: Diagrams

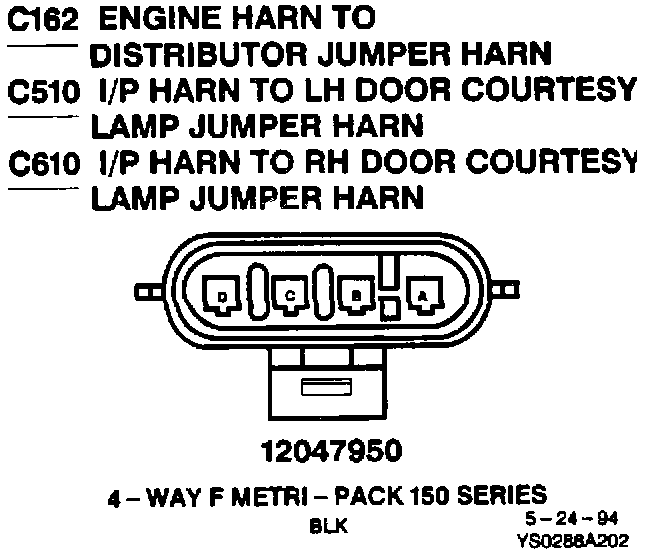

C162: ENG Harn To Distributor JMP Harn, C510: I/P Harn To LH & RH Door CTSY LMP JMP Harn And C610:

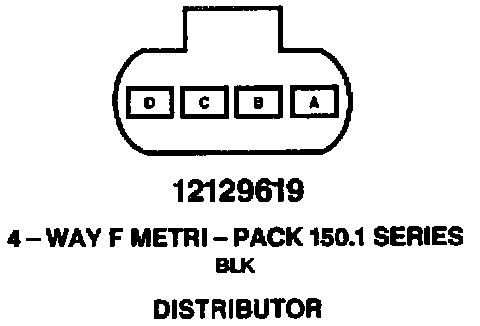

Distributor:
