Accelerator Pedal Position Sensor: Service and Repair

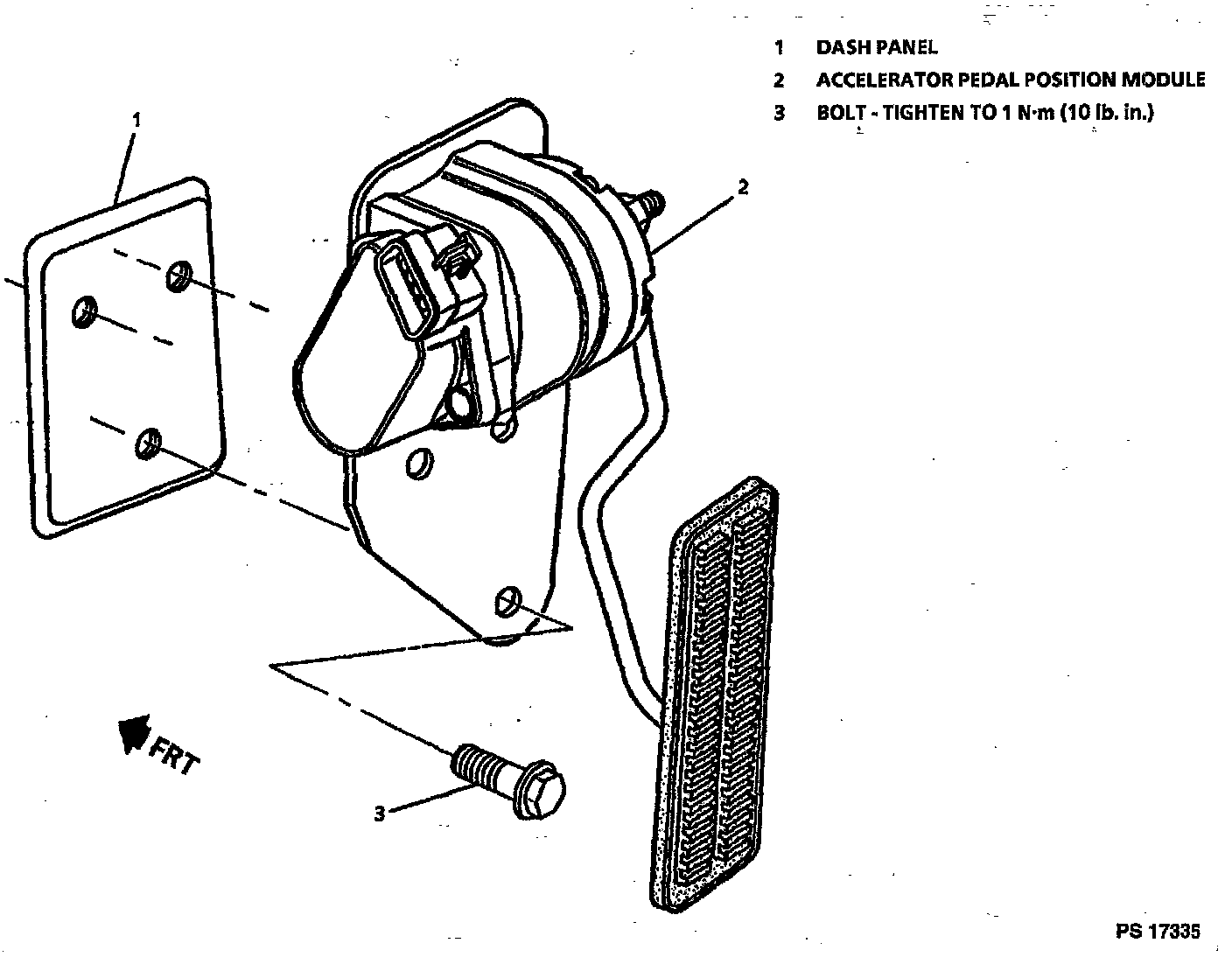

Accelerator Pedal Position Module:

Observe the following when performing service on the accelerator pedal position module:

^ The mounting surface between the support and the dash panel, must be free of insulation; The carpet and padding in the pedal and tunnel area must be positioned to lay flat and be free of wrinkles and bunches.
