Crankshaft Position Sensor: Service and Repair

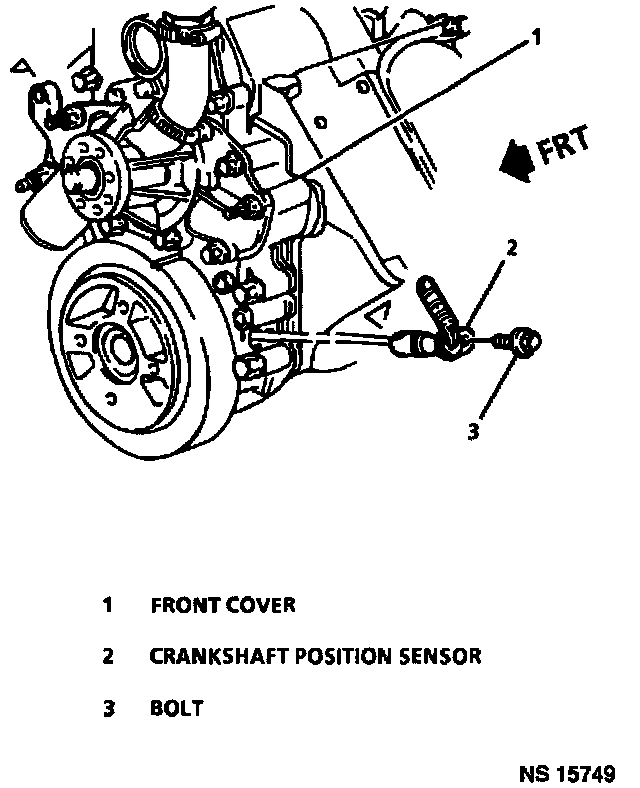

Crankshaft Position Sensor:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Sensor electrical connector.
3. Sensor bolt.
4. Sensor from engine

INSPECT
Sensor O-ring for wear, cracks or leakage. Replace if necessary. Lube new O-ring with engine oil before installing.

INSTALL OR CONNECT
1. Sensor in engine.
2. Sensor bolt, tighten to 25 Nm (17 lb ft).
3. Sensor electrical connector.
4. Negative battery cable.

NOTE: The procedure, called the TDC Offset Program Procedure, utilizes the capabilities of the Tech 1 scan tool. This procedure must he done when a crankshaft position sensor is replaced. Refer to TDC Offset Program Procedure. Service and Repair
