Oil Pressure Sensor: Service and Repair

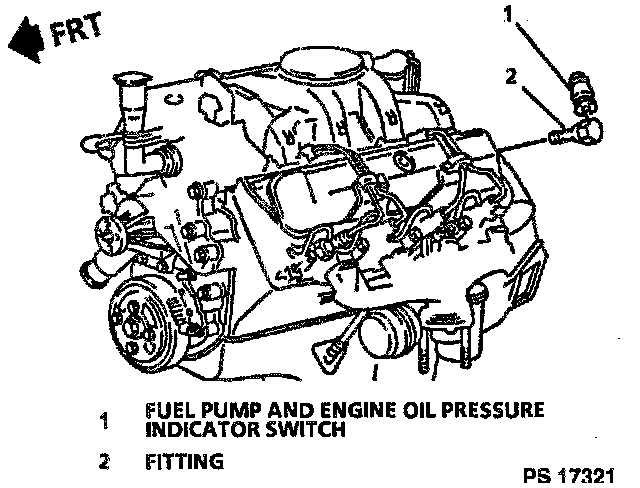

Oil Pressure Switch:






REMOVE OR DISCONNECT
1. Electrical connector.
2. Oil pressure switch using wrench J 35748.

INSTALL OR CONNECT
1. Oil pressure switch.
2. Electrical connector.
