Glow Plug Relay: Service and Repair

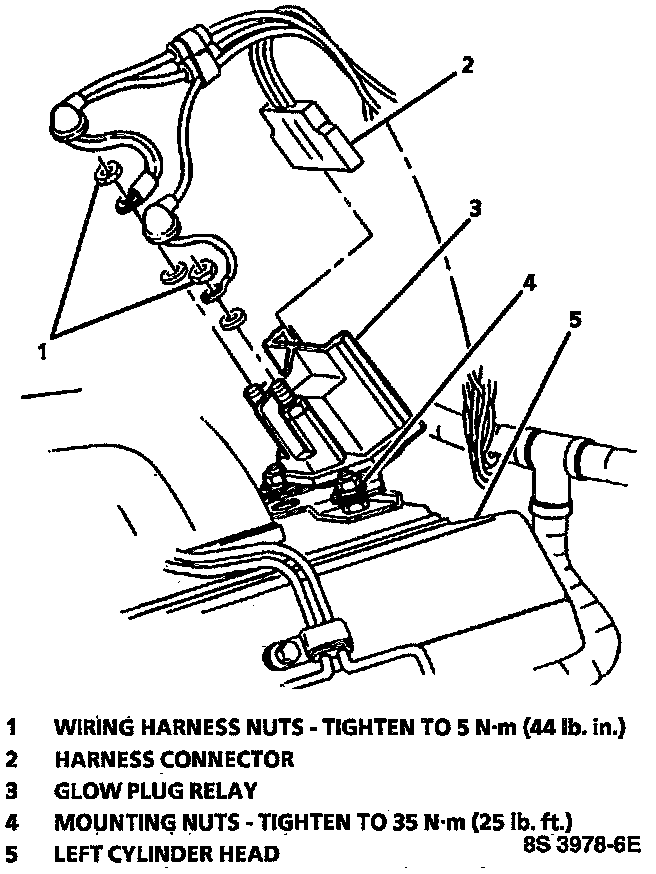

Glow Plug Relay:
REMOVE OR DISCONNECT 1.
Negative battery cables.
2.
Wiring connector to the
relay.
3.
Relay mounting nuts.
4.
Relay from the studs on the engine.
INSTALL OR CONNECT 1.
Relay to the studs on the engine.
2.
Relay mounting nuts.
Tighten ^
Nuts to
35 Nm (25 lb. ft.).
3.
Wiring connector to the
relay.
Tighten ^
Wiring harness nuts to
5 Nm (44 lb. in.).
4.
Negative battery cables.
