Monte Carlo V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
A
>>
Pinout Description
Pinout Description

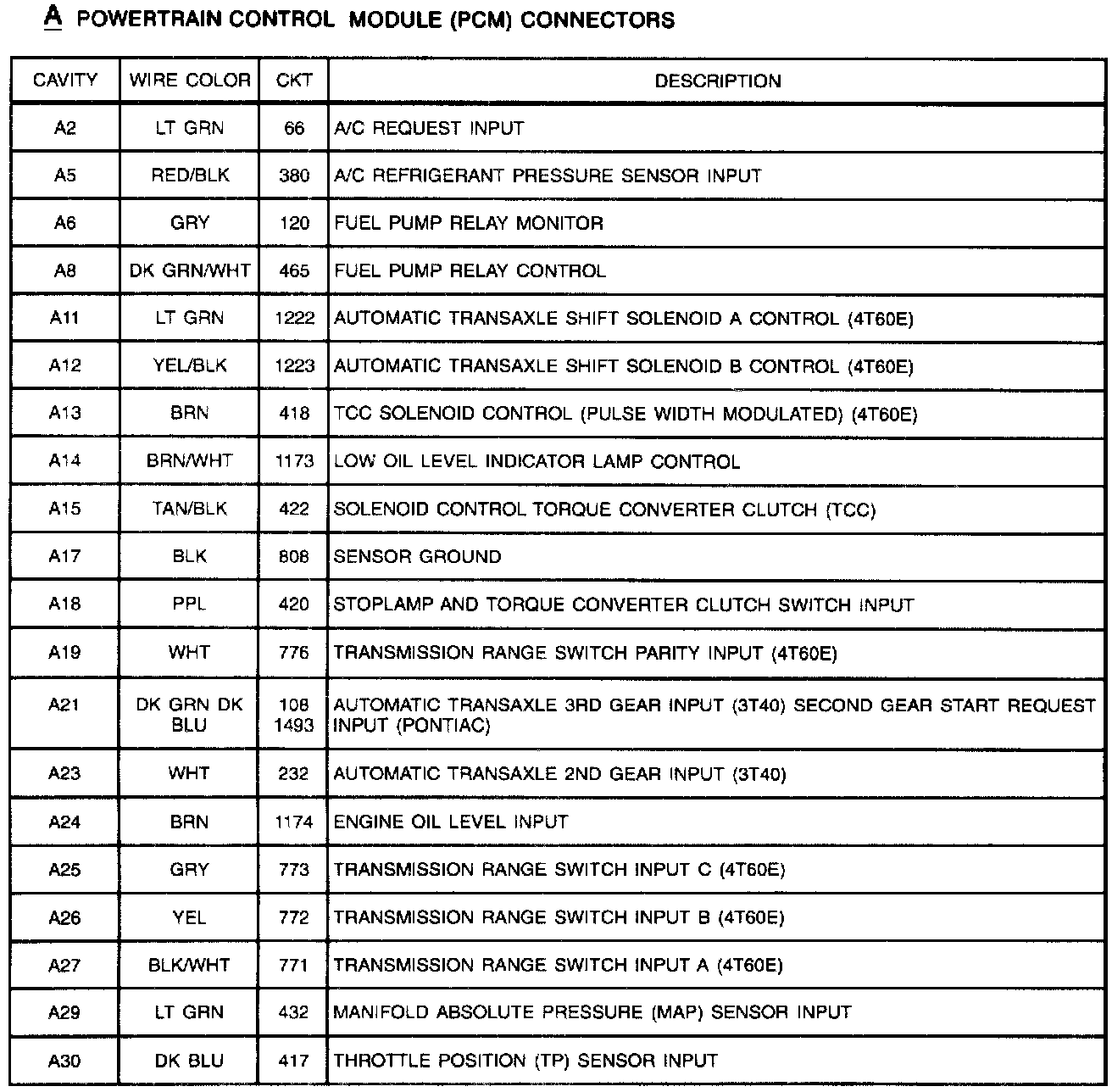

A: Powertrain Control Module (PCM) Connectors (Part 1 Of 2):
A: Powertrain Control Module (PCM) Connectors (Part 2 Of 2):
