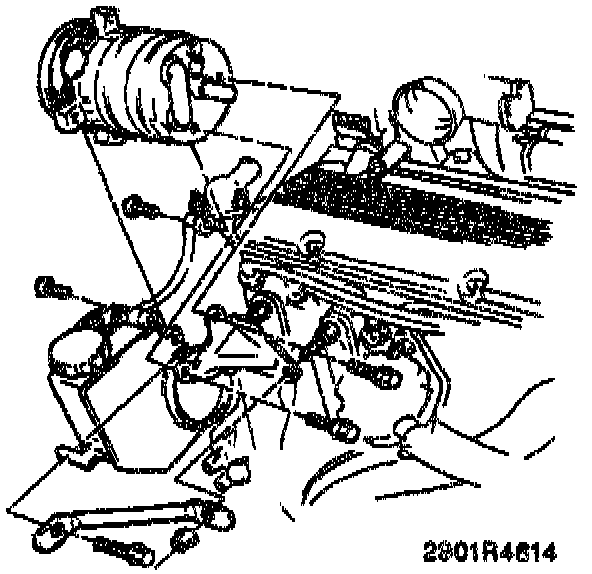

Compressor Replacement

Compressor Replacement:

REMOVE OR DISCONNECT

1. Negative battery cable.
2. Recover refrigerant from the system.
3. Drive belt.
4. Electrical connectors, as necessary.
5. Compressor and condenser hose assembly.
6. Compressor bolts.
7. Compressor rear bracket bolts.
8. Compressor from brackets.

INSTALL OR CONNECT

1. Compressor into brackets.

NOTICE: For steps 2 and 3 refer to "Fasteners" under "Vehicle Damage Warnings."

2. Compressor rear bracket bolts.
3. Compressor bolts.

Tighten

- Compressor bolts to 50 Nm (37 lbs. ft.).
- Compressor rear bracket bolts to 31 Nm (23 lbs. ft.).

4. Compressor and condenser hose assembly.
5. Electrical connectors, as necessary.
6. Drive belt.
7. Negative battery cable.
8. Refrigerant to the system.

- Check the system for leaks.
