Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Injector
Fuel Injector

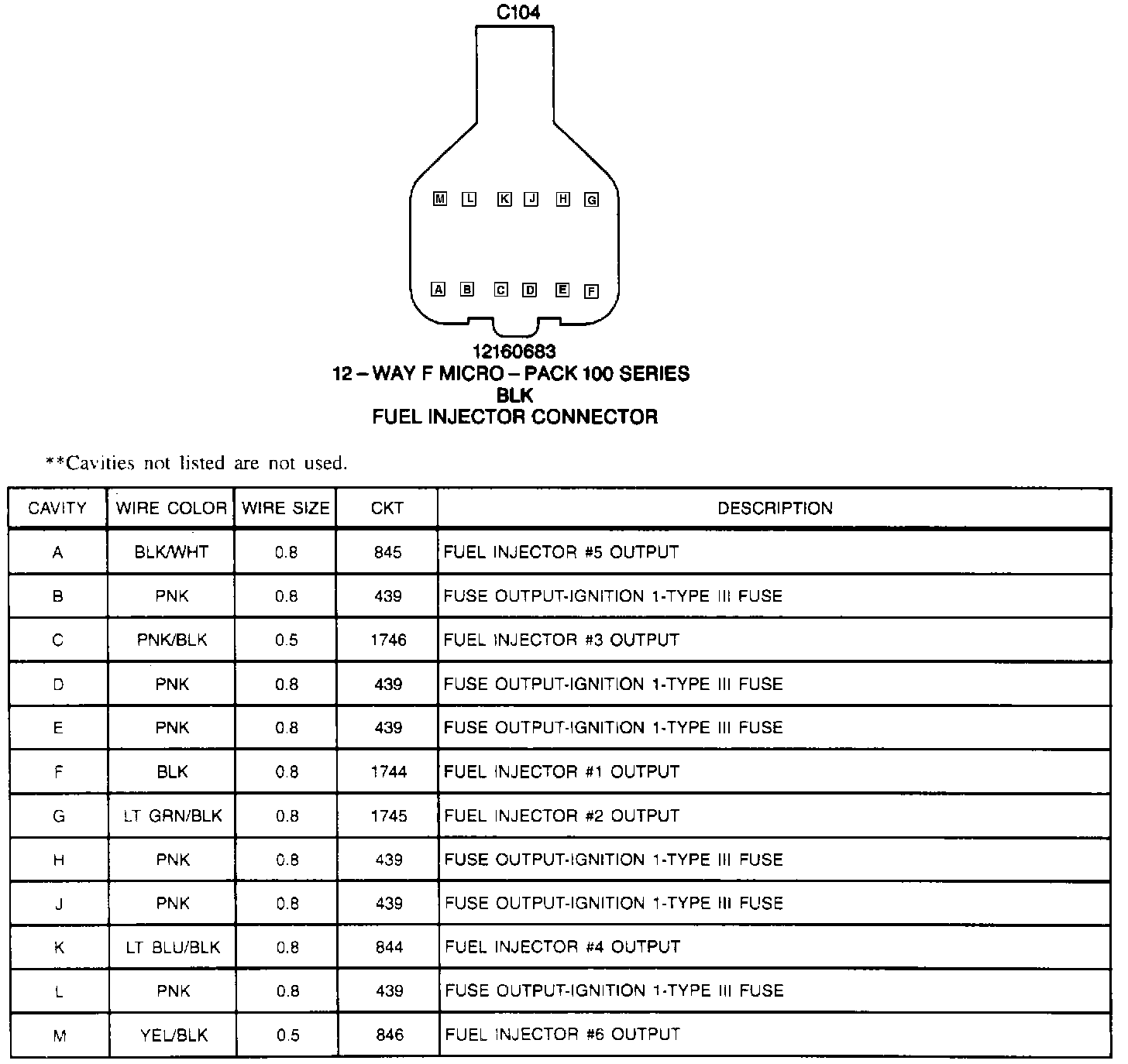

C104: Fuel Injector Connector:
