Engine Cover Guide Assembly

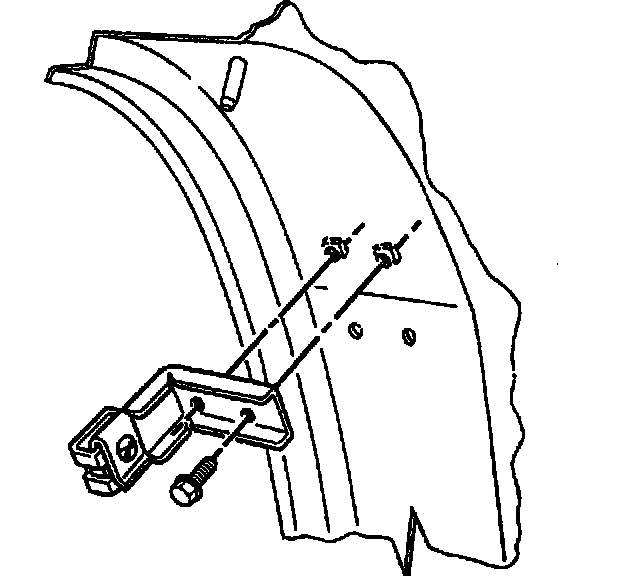

Engine Cover Guide Assembly:
Remove or Disconnect 1.
Engine cover.
2.
Two bolts retaining engine cover guide assembly to vehicle.
3.
Engine cover guide assembly from vehicle.
Install or Connect 1.
Engine cover guide assembly.
2.
Two bolts retaining engine cover guide assembly to vehicle.
Tighten ^
Bolts to
8.5 N.m (75 lb. in.).
3.
Engine cover.
