Instrument Panel Extension

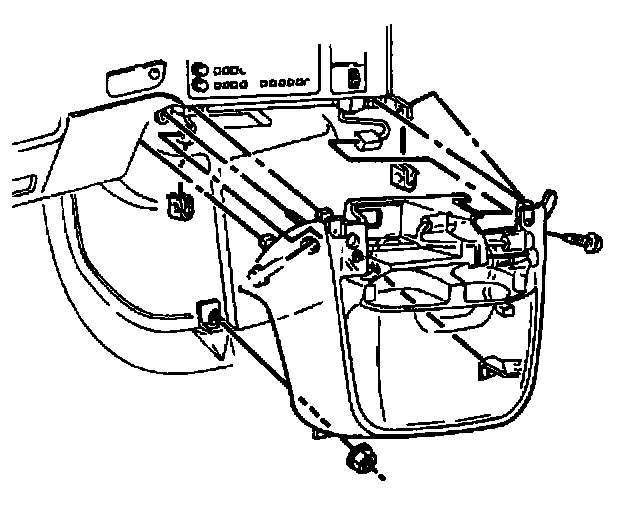

I/P Extension:

Remove or Disconnect

1. Two screws on the sides of the extension.
2. Two nuts at the bottom of the extension.
3. Extension from I/P by pulling toward the rear of the vehicle to release.
4. Electrical connectors.

Install or Connect

1. Electrical connectors.
2. Extension to I/P by aligning fasteners and pressing into place until fasteners are seated.
3. Two nuts retaining extension to the floor.

Tighten
^ Nuts to 8 N.m (71 lb. in.).

4. Two retaining screws.

Tighten
^ Screws to 8 N.m (71 lb. in.).
