Wiper/Washer Switch

Harness Connector View - C211

C211: I/P To Steering Column Harness Connector:




Washer/Wiper Switch Connector

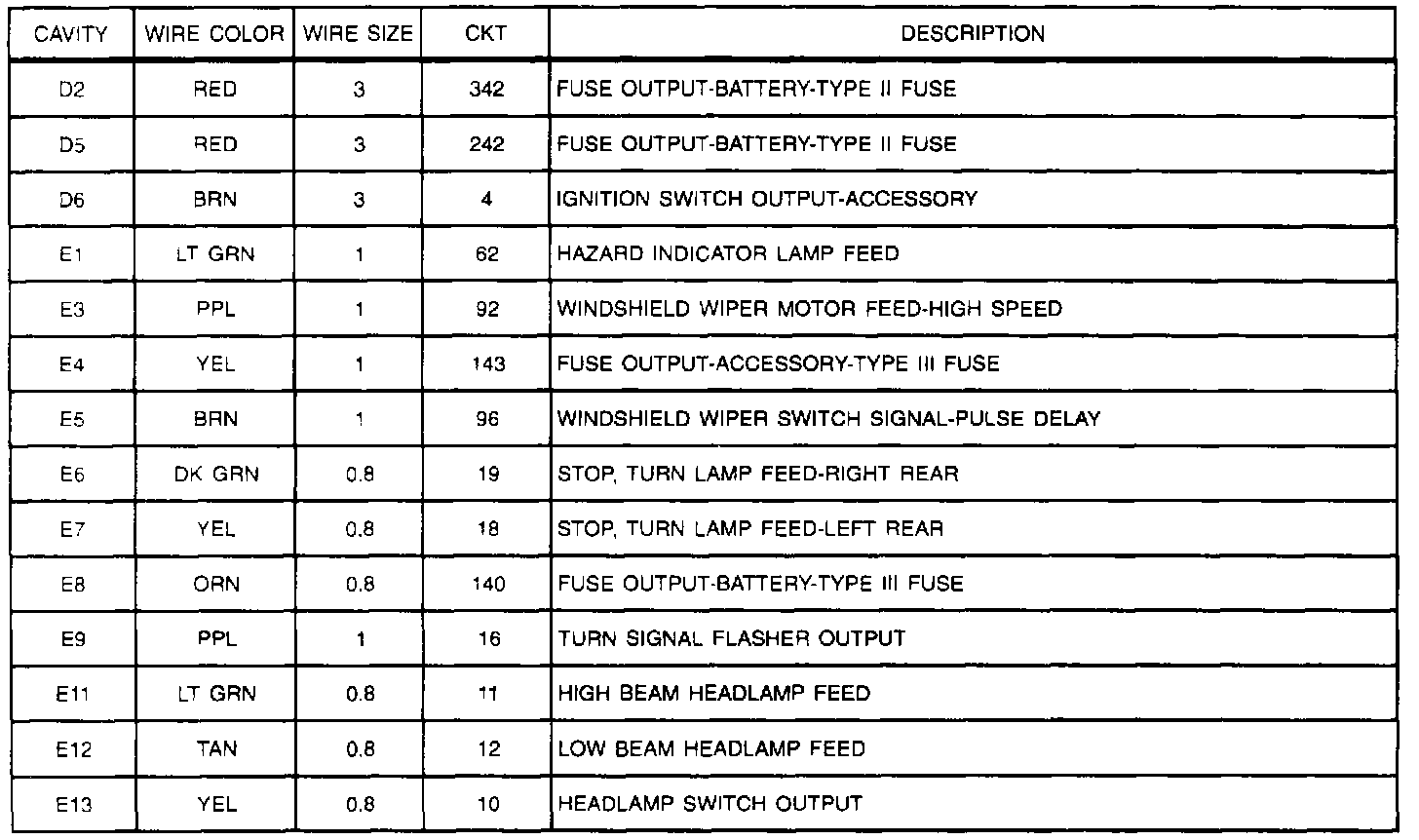

C211: I/P To Steering Column Harness Connector (Part 1 Of 2):




C211: I/P To Steering Column Harness Connector (Part 2 Of 2):




Pinout Description
