Engine Control - Omitted From Service Manual

File In Section: 8 - Chassis/Body Electrical

Bulletin No.: 86-81-08

Date: August, 1998

SERVICE MANUAL UPDATE

Subject:
Section 8A-20 - Engine Controls - Section 8A-20 Omitted from Service Manual

Models:

1996 Chevrolet and GMC M/L Models

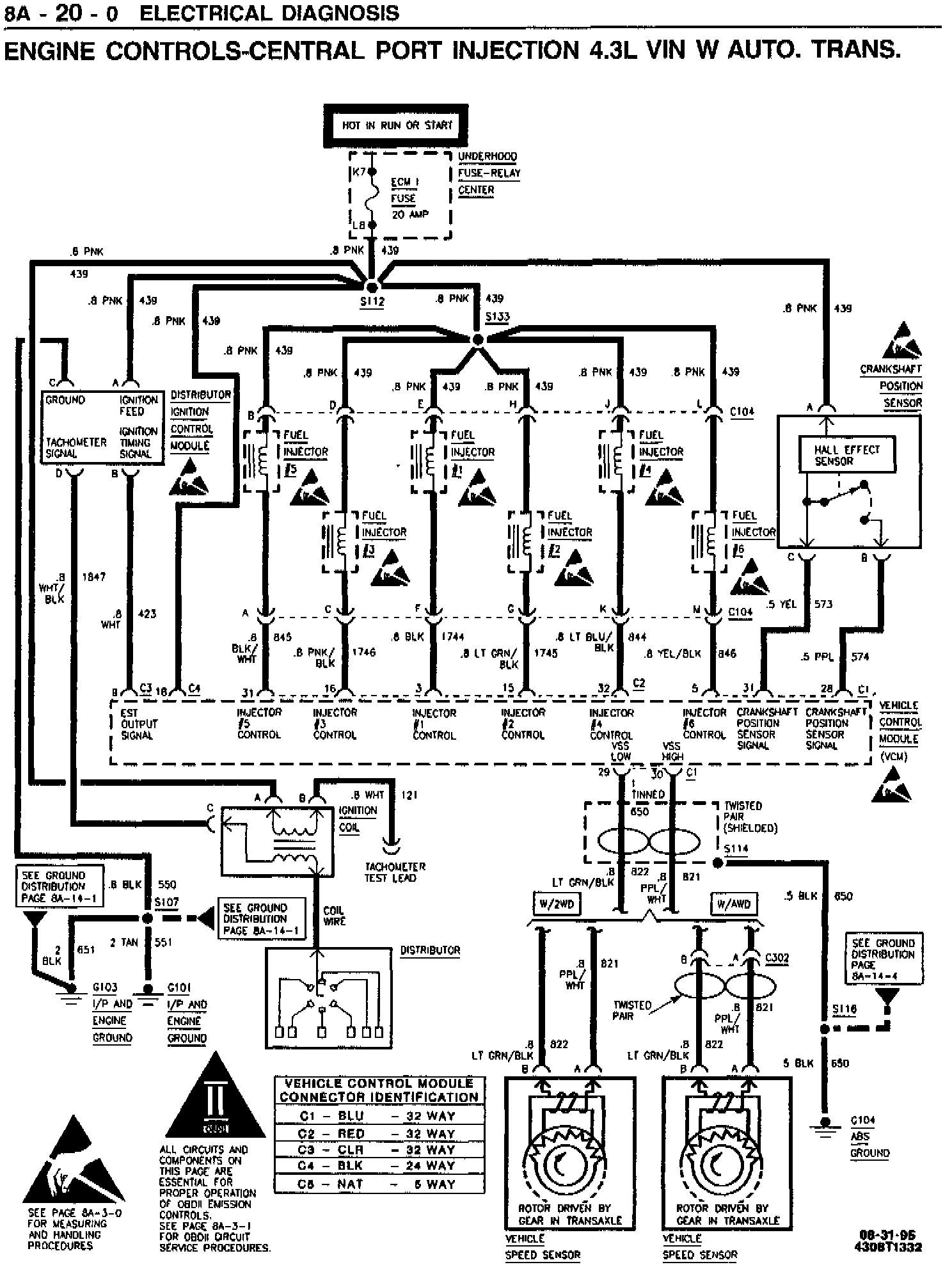

8A-20-0 ELECTRICAL DIAGNOSIS

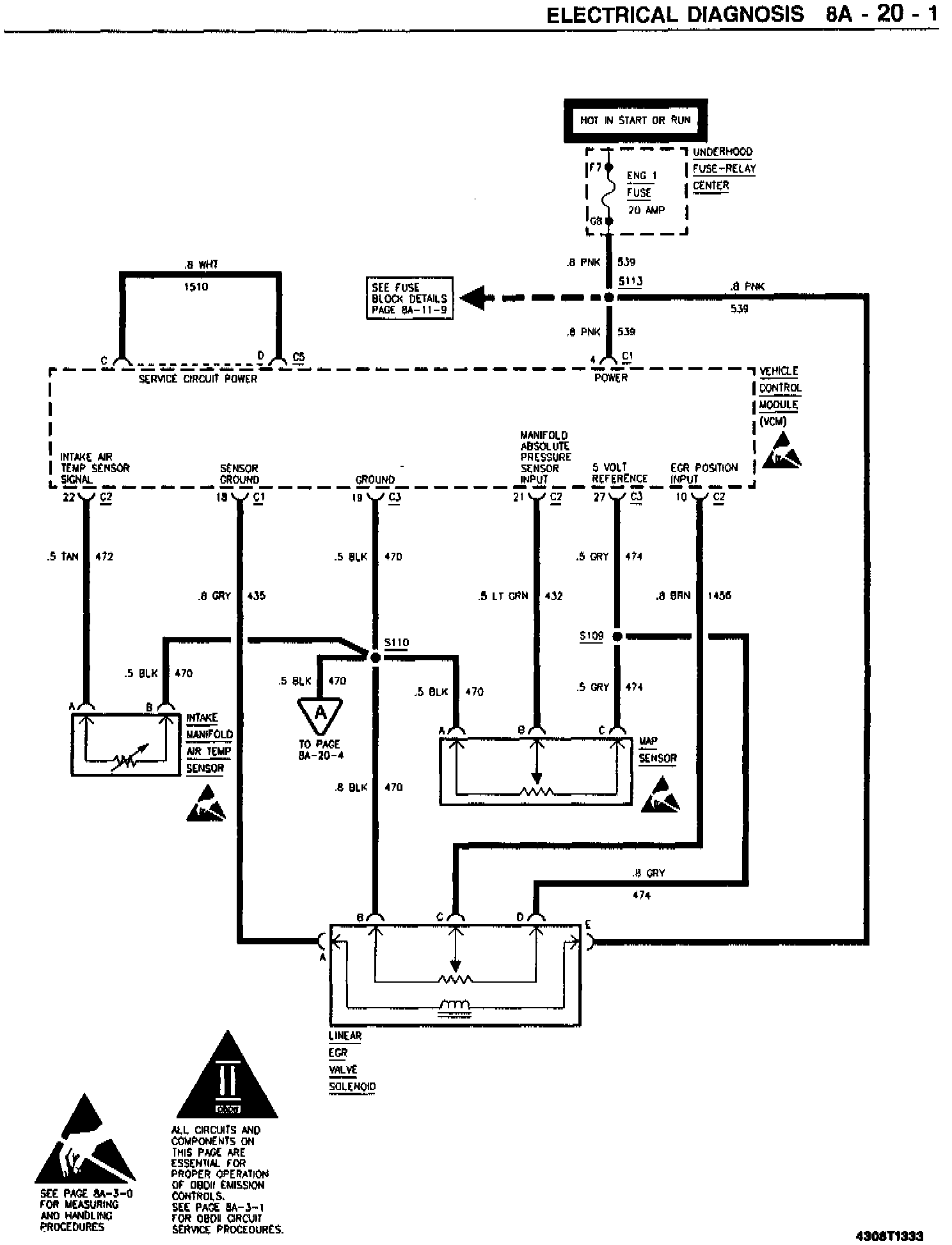

ELECTRICAL DIAGNOSIS 8A-20-1

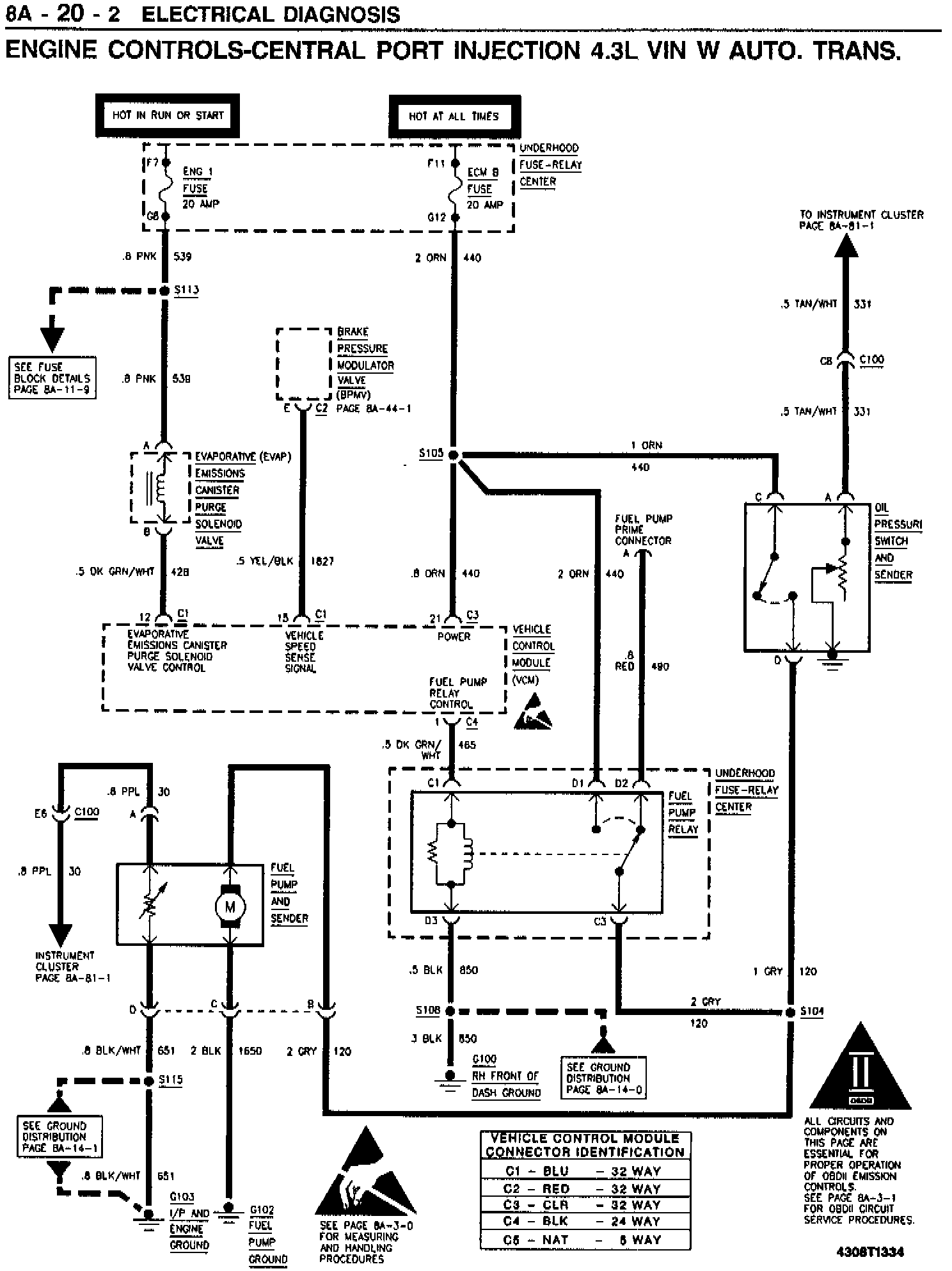

8A-20-2 ELECTRICAL DIAGNOSIS

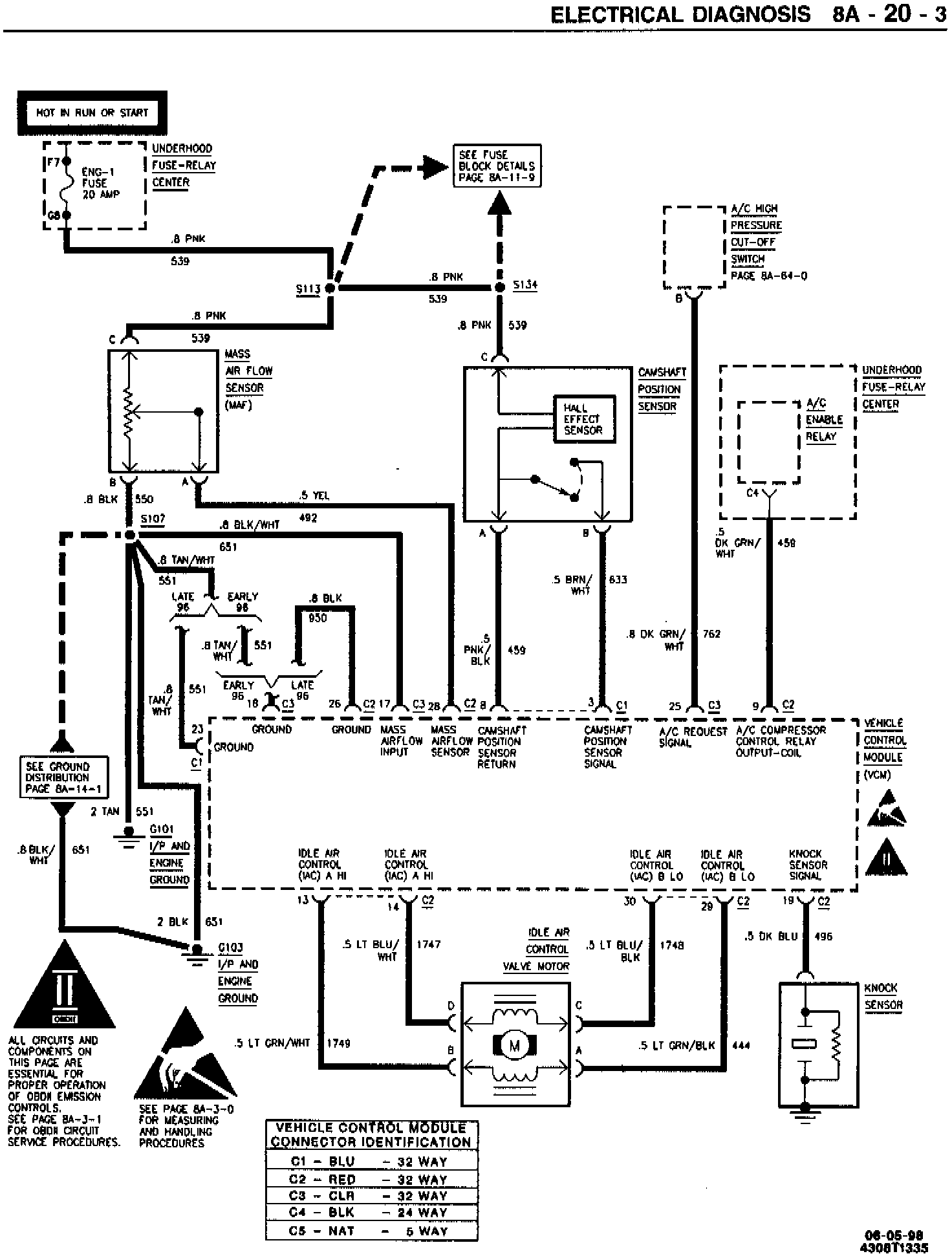

ELECTRICAL DIAGNOSIS 8A-20-3

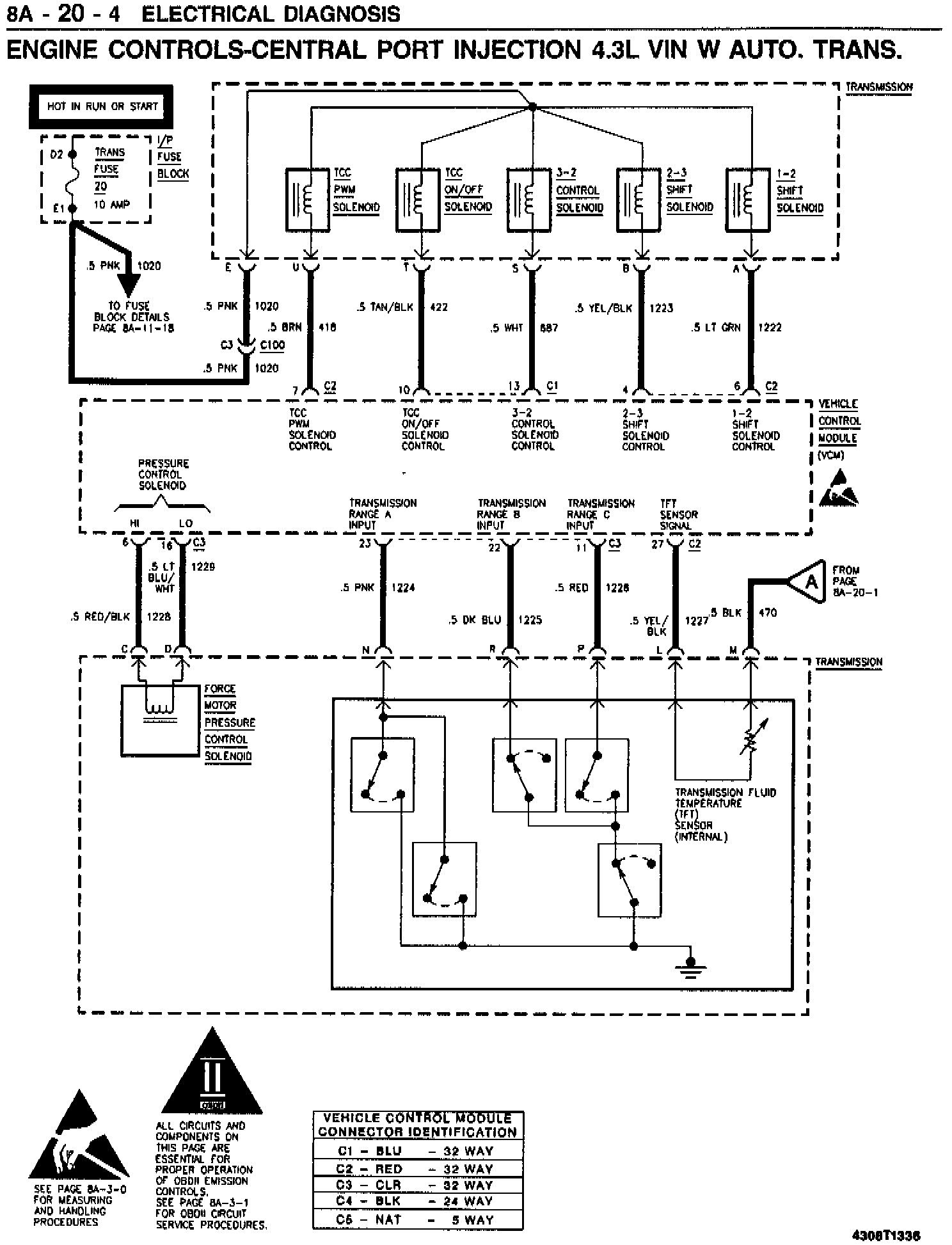

8A-20-4 ELECTRICAL DIAGNOSIS

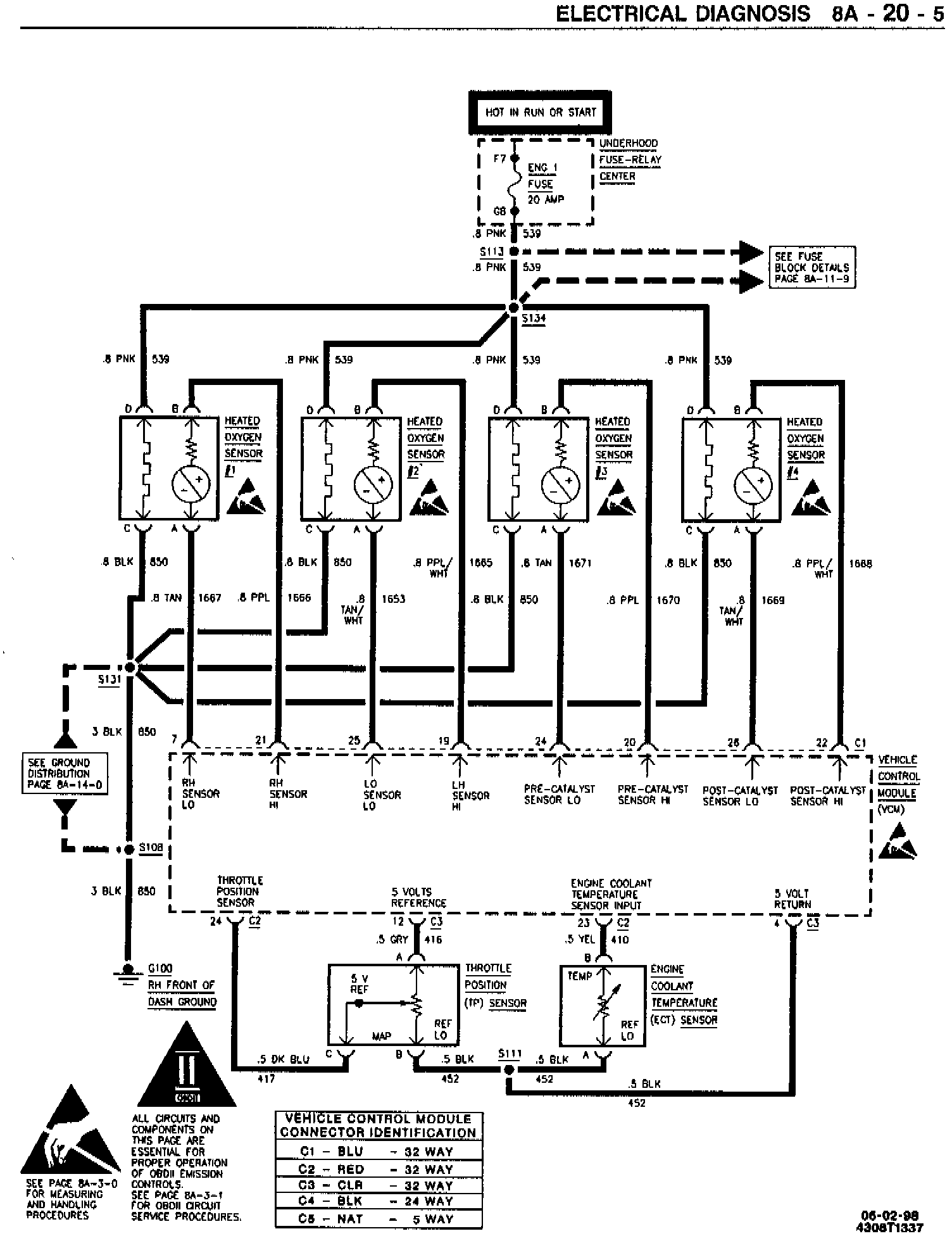

ELECTRICAL DIAGNOSIS 8A-20-5

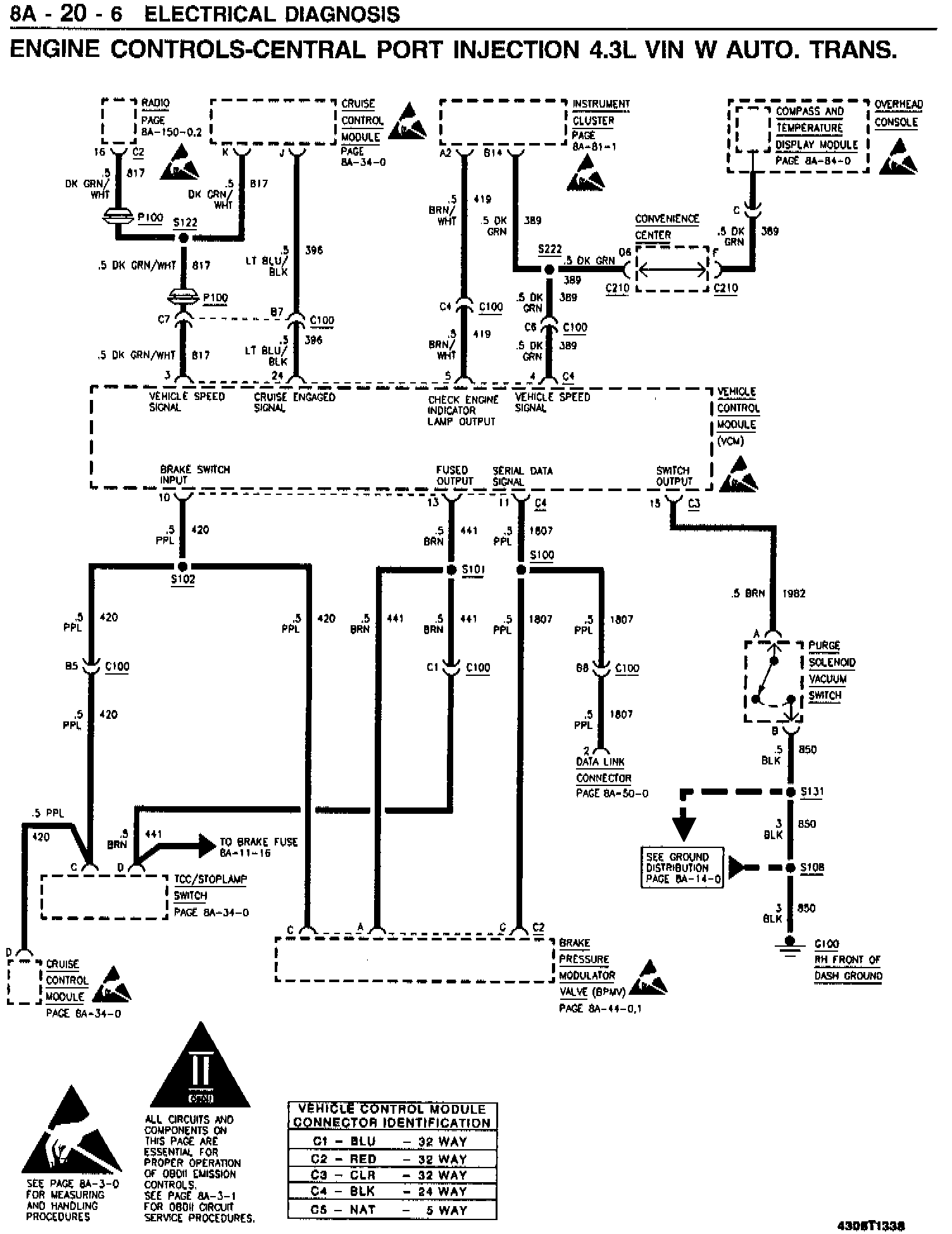

8A-20-6 ELECTRICAL DIAGNOSIS

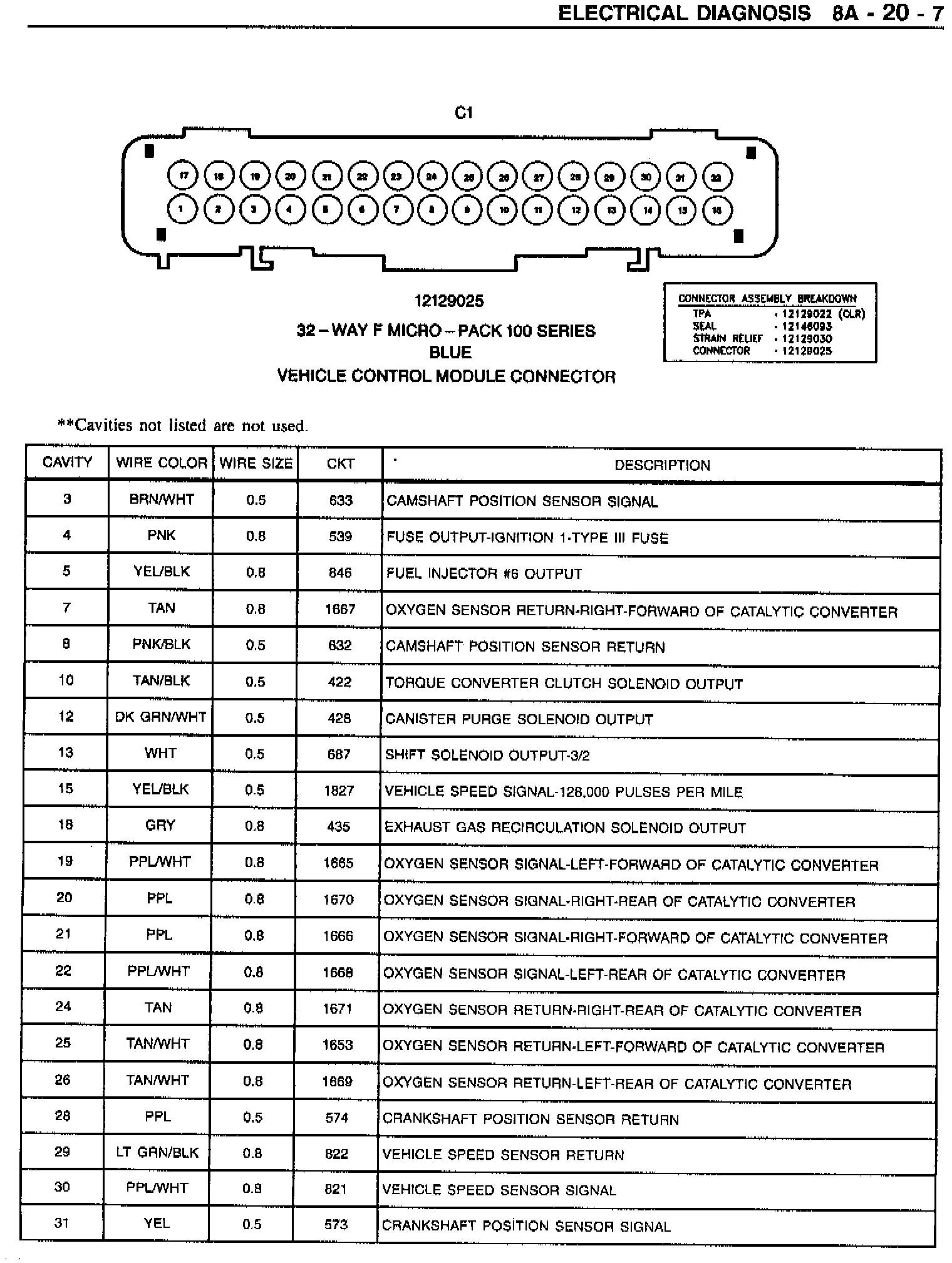

ELECTRICAL DIAGNOSIS 8A-20-7

P^C :

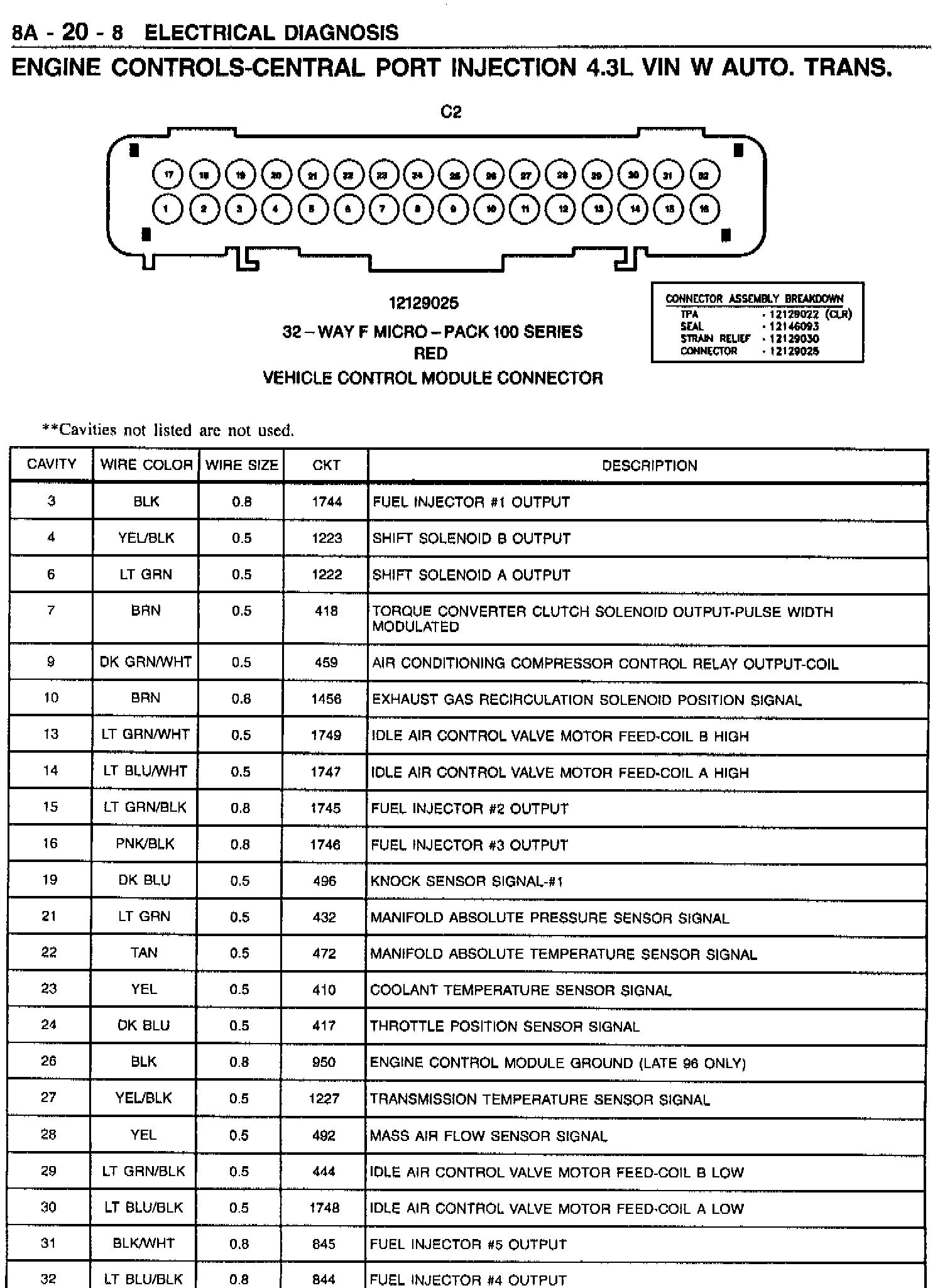

8A-20-8 ELECTRICAL DIAGNOSIS

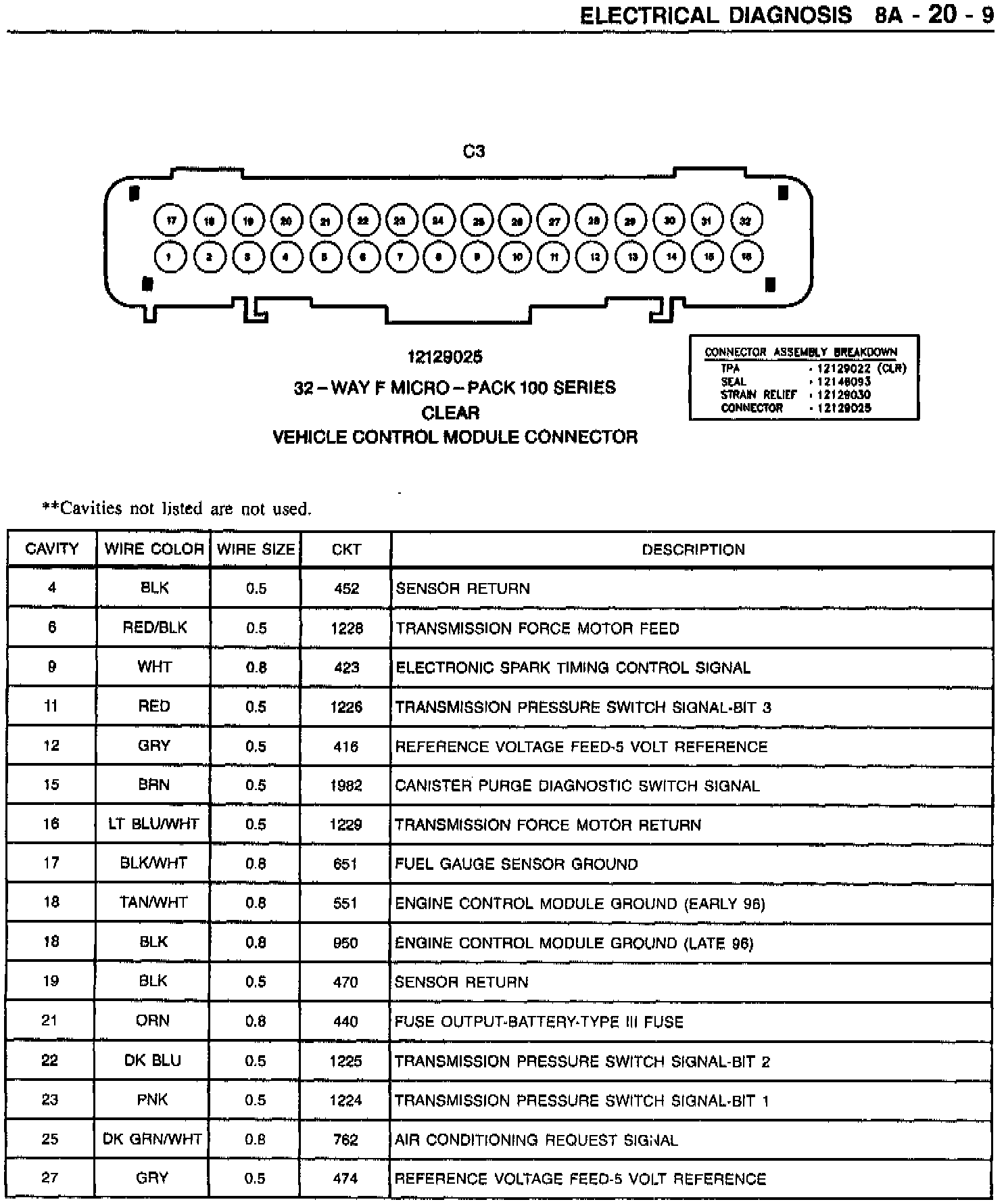

ELECTRICAL DIAGNOSIS 8A-20-9





8A-20-10 ELECTRICAL DIAGNOSIS

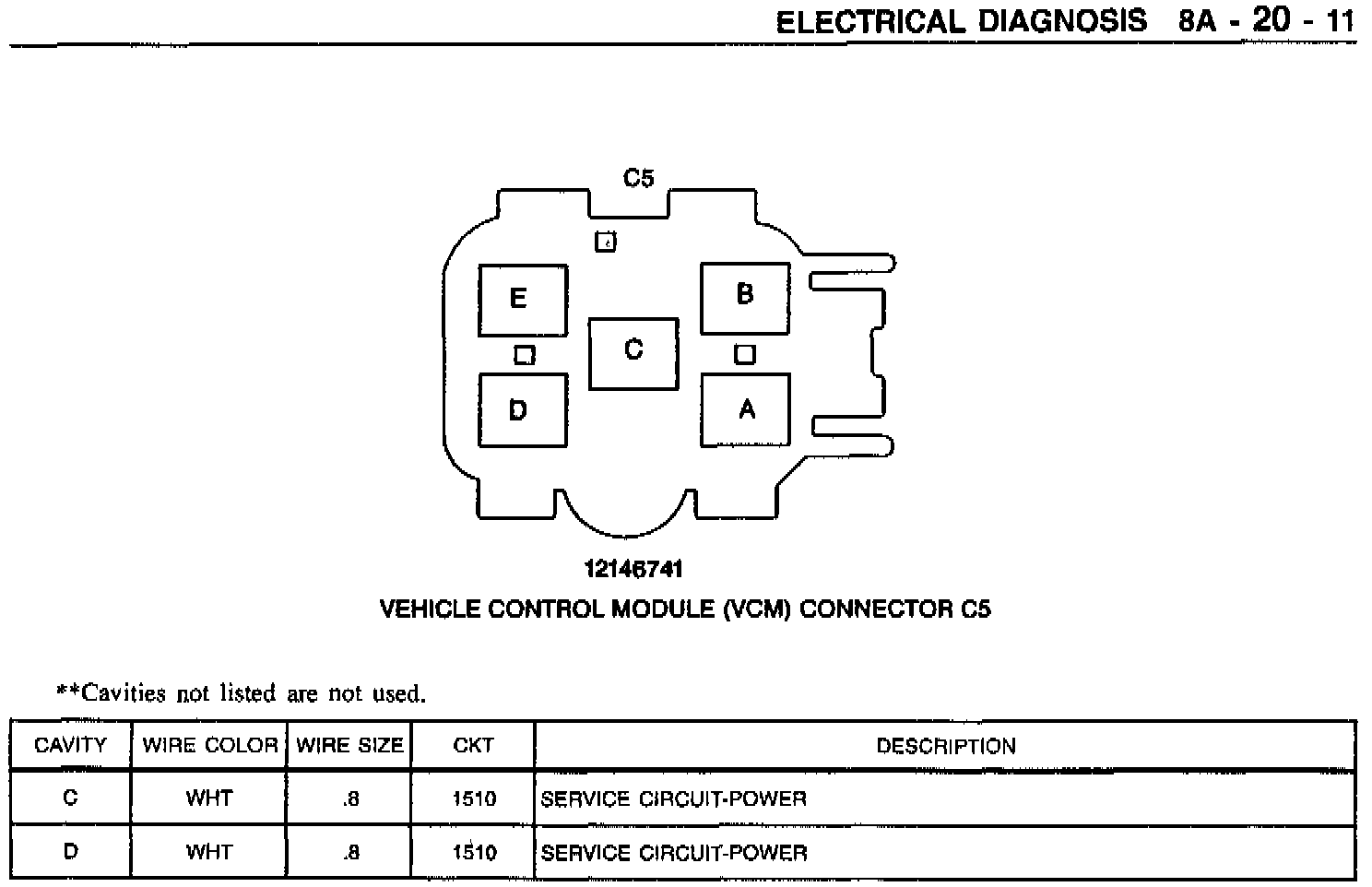

ELECTRICAL DIAGNOSIS 8A-20-11

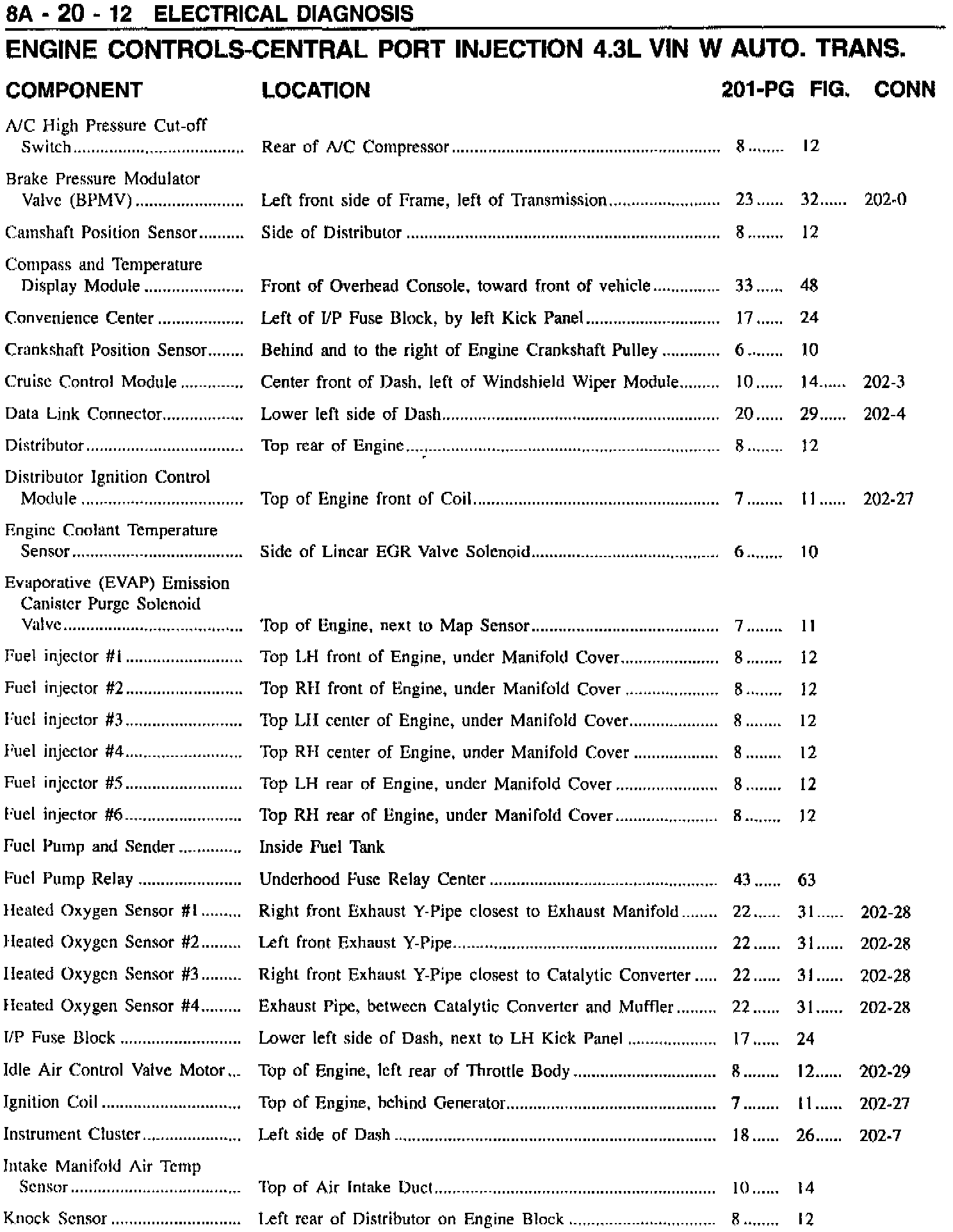

8A-20-12 ELECTRICAL DIAGNOSIS

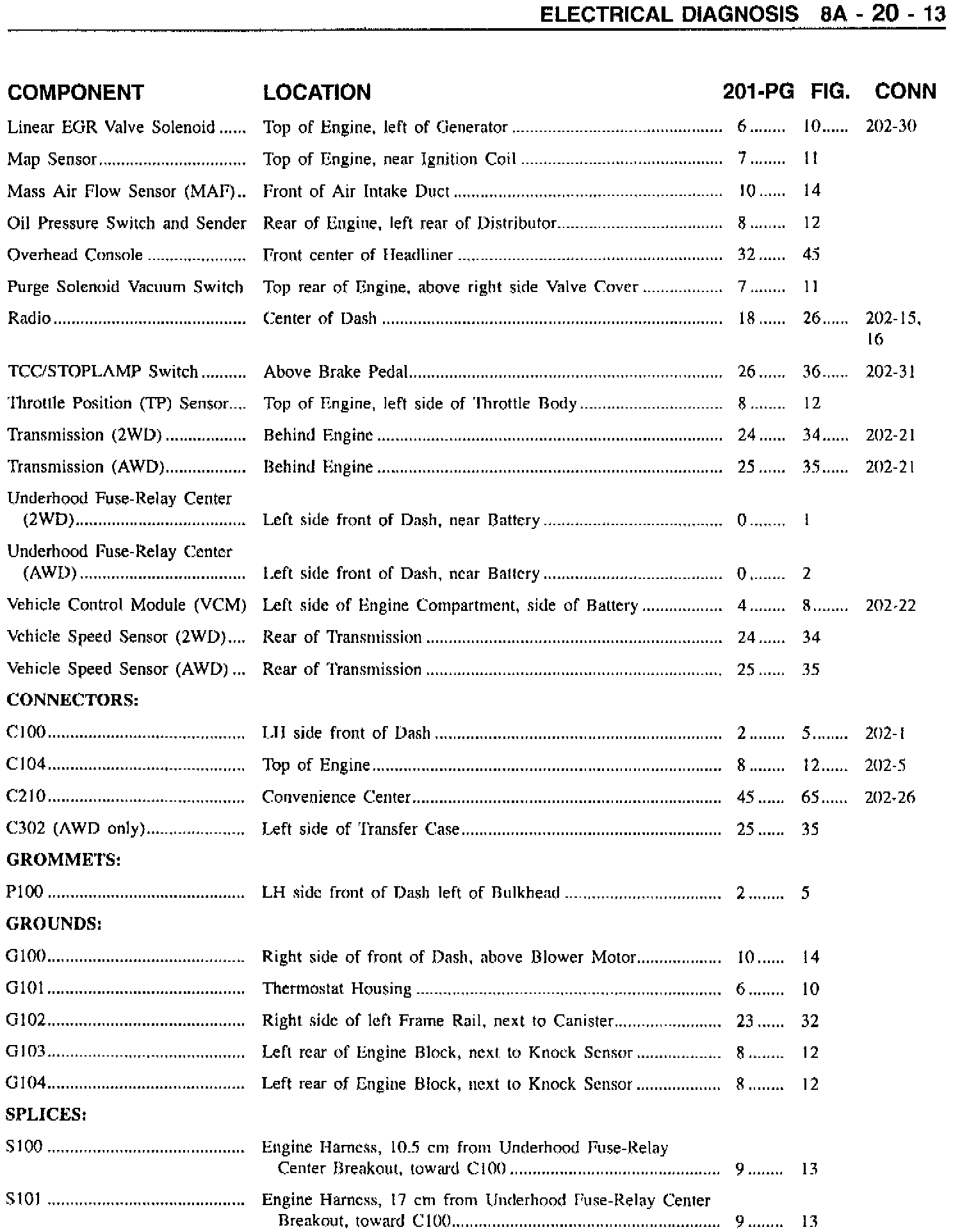

ELECTRICAL DIAGNOSIS 8A-20-13

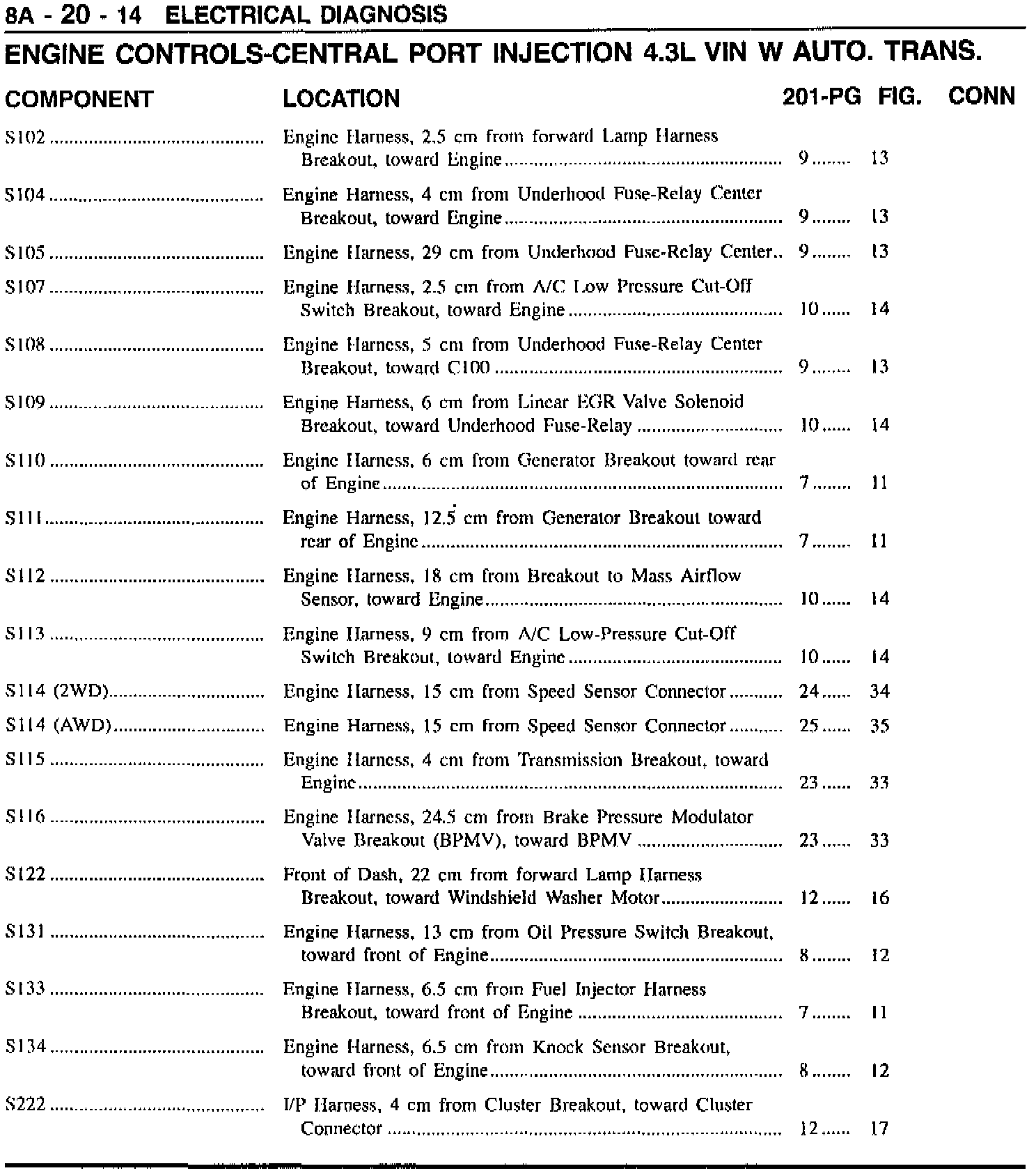

8A-20-14 ELECTRICAL DIAGNOSIS

This bulletin is being issued to include Section 8A-20 (Central Port Injection 4.3L VIN W w/Automatic Transmission) which was omitted from the 1996 M/L Service Manual.
