Home >> Chevrolet >> 1996 >> Beretta L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Front End Panel

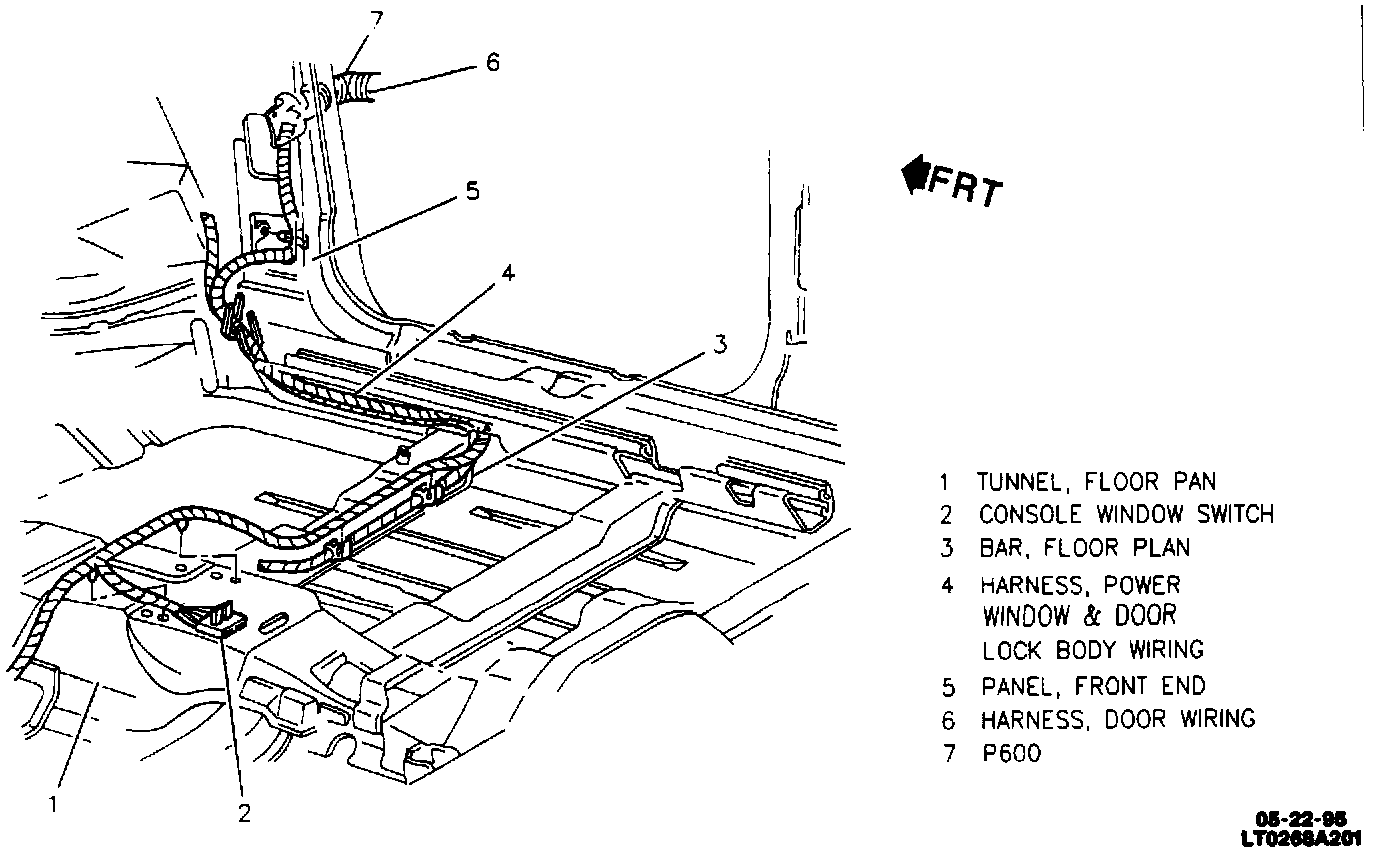

Front End Panel

RH Front Passenger Compartment:
