Home
>>
Chevrolet
>>
1996
>>
Beretta L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Vehicle Speed Sensor Branch
Vehicle Speed Sensor Branch

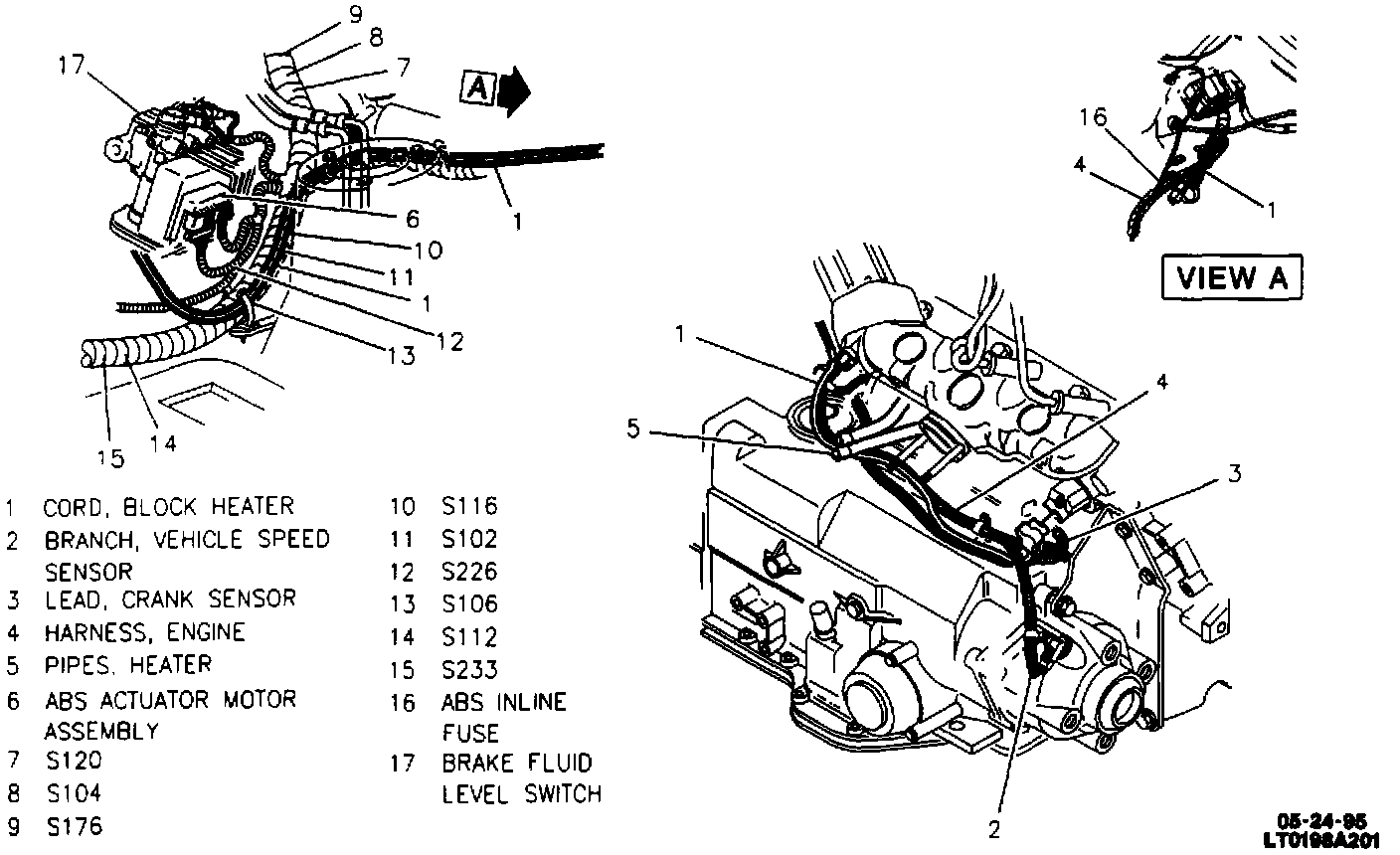

LH Rear Of Engine Compartment:
