Pinout Description

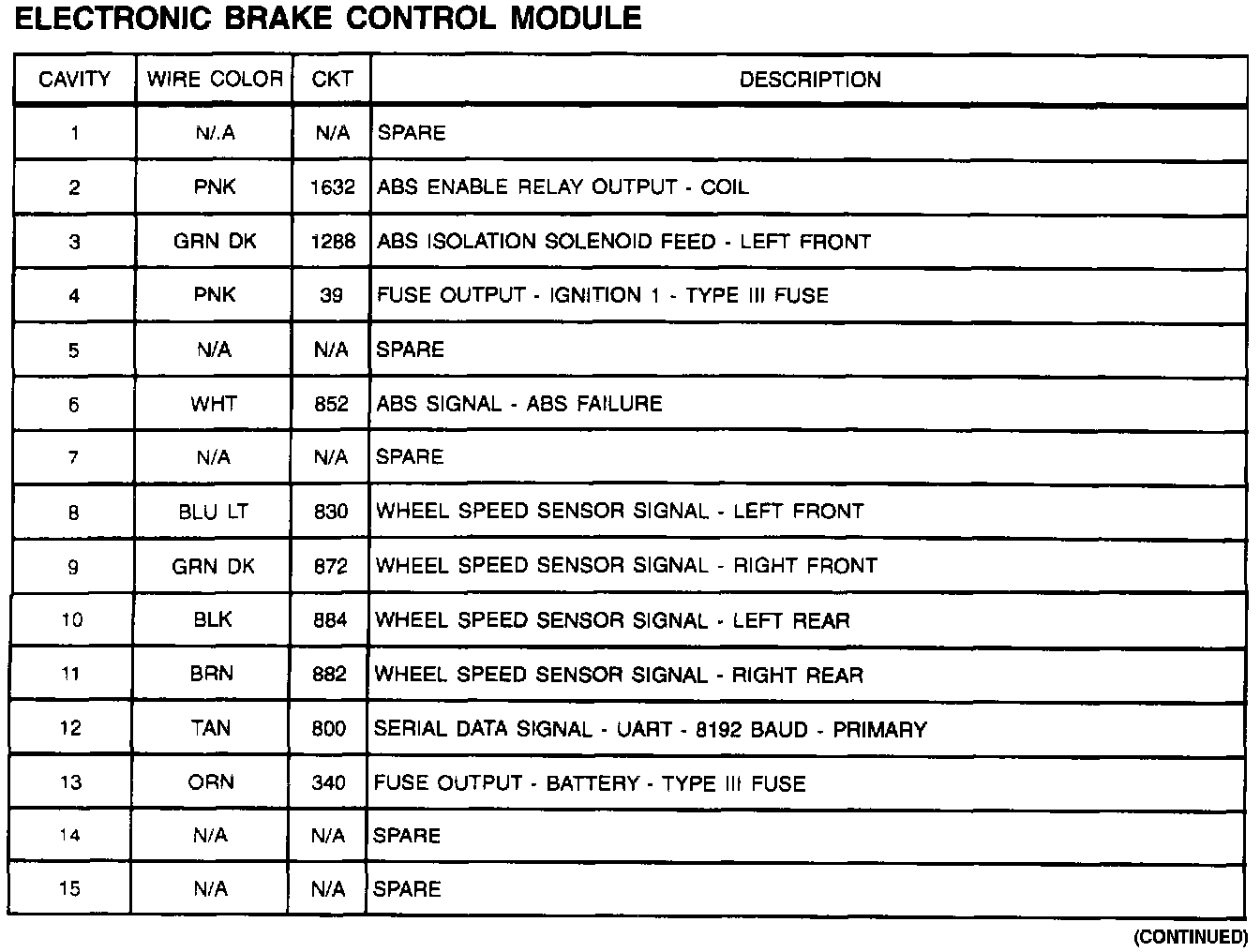

Electronic Brake Control Module (Part 1 Of 2):

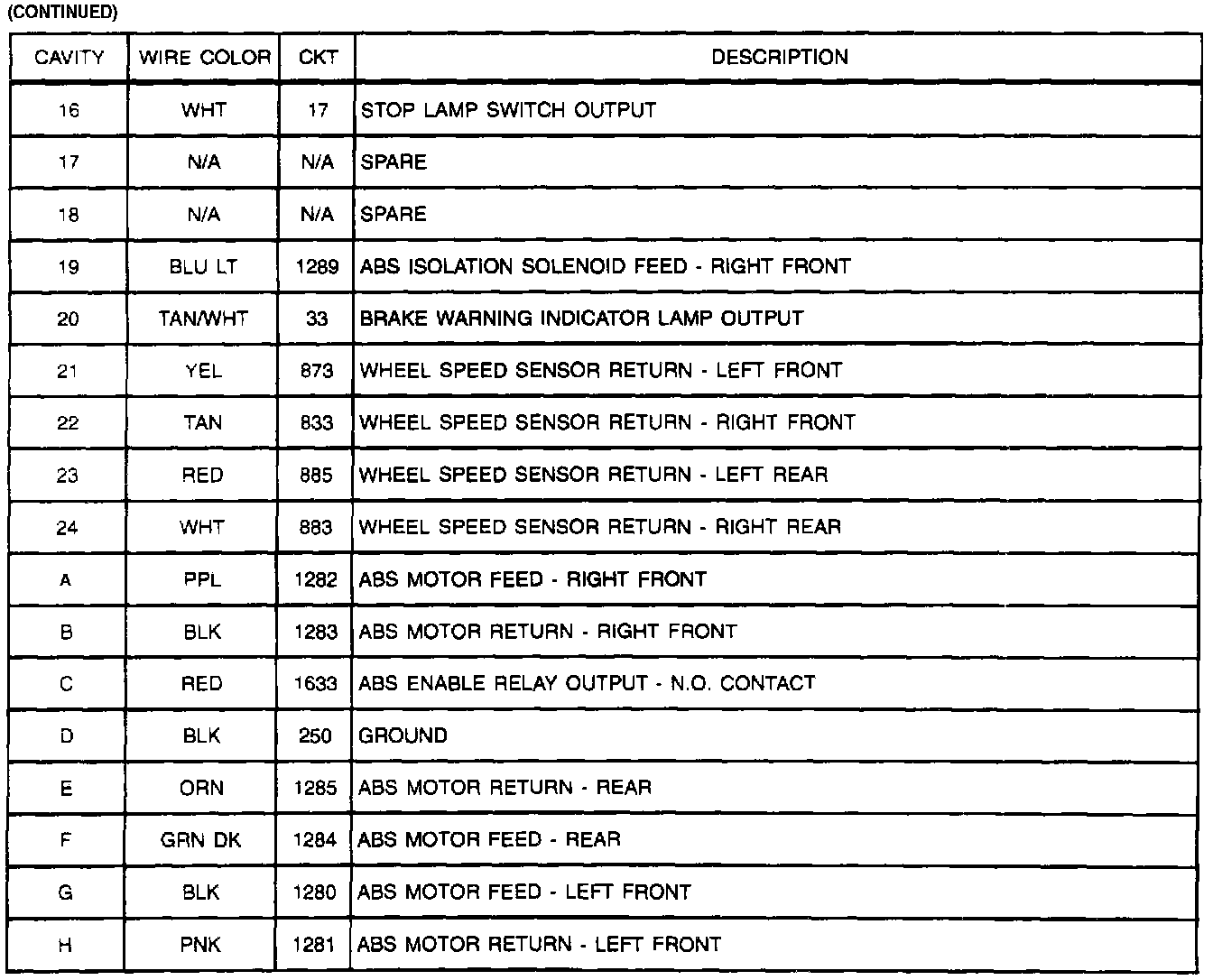

Electronic Brake Control Module (Part 2 Of 2):
