Beretta L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Daytime Running Lamp Control Unit
Daytime Running Lamp Control Unit

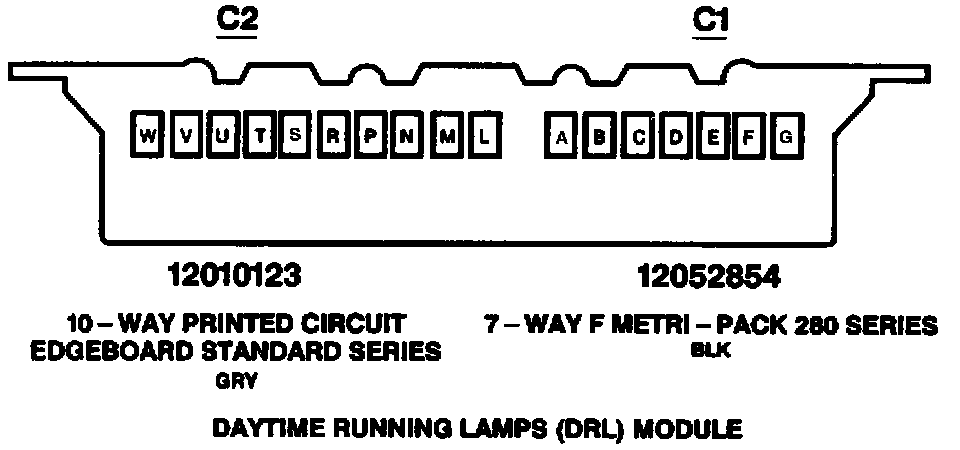

Daytime Running Lamps (DRL) Module: C1 And C2:

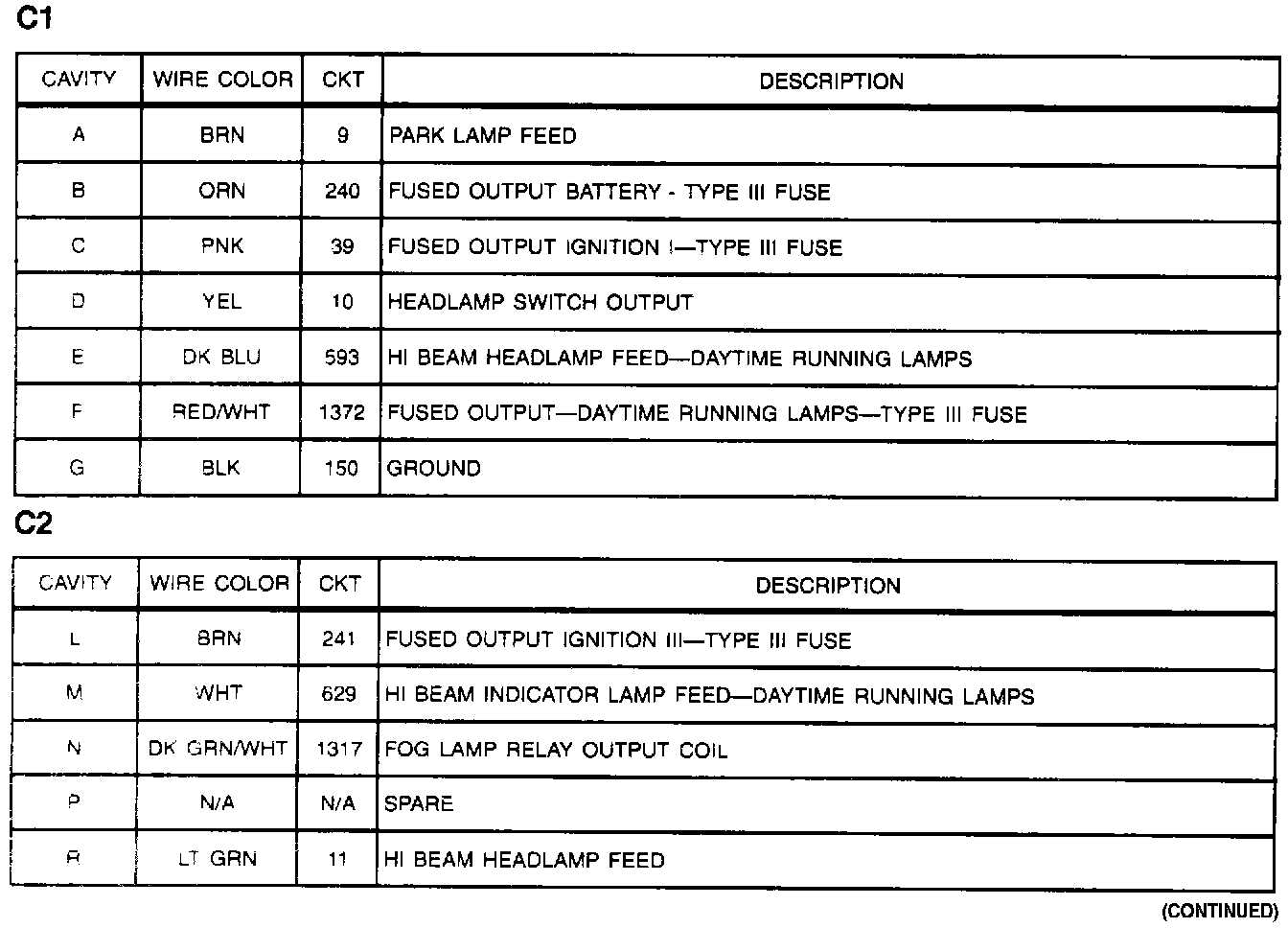

Daytime Running Lamps (DRL) Module: C1 And C2 (Part 1 Of 2):

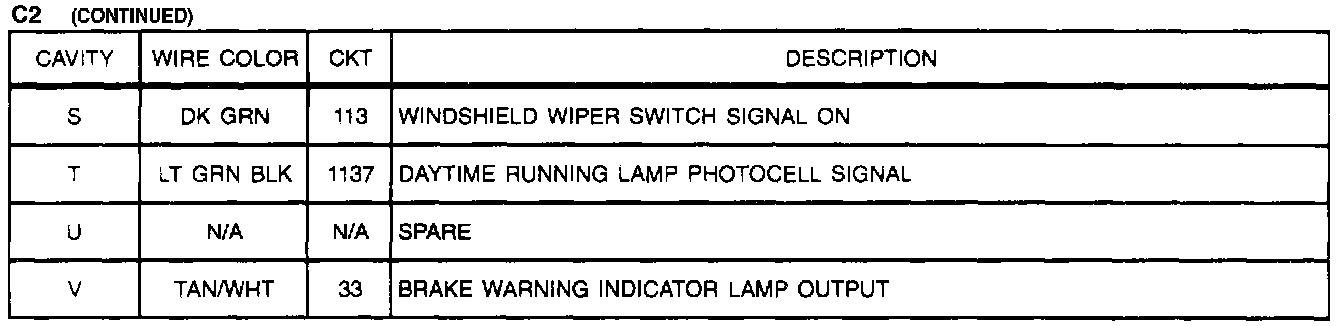

Daytime Running Lamps (DRL) Module: C1 And C2 (Part 2 Of 2):
