Beretta L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Controls
>>
Automatic Transmission/Transaxle Controls
Automatic Transmission/Transaxle Controls

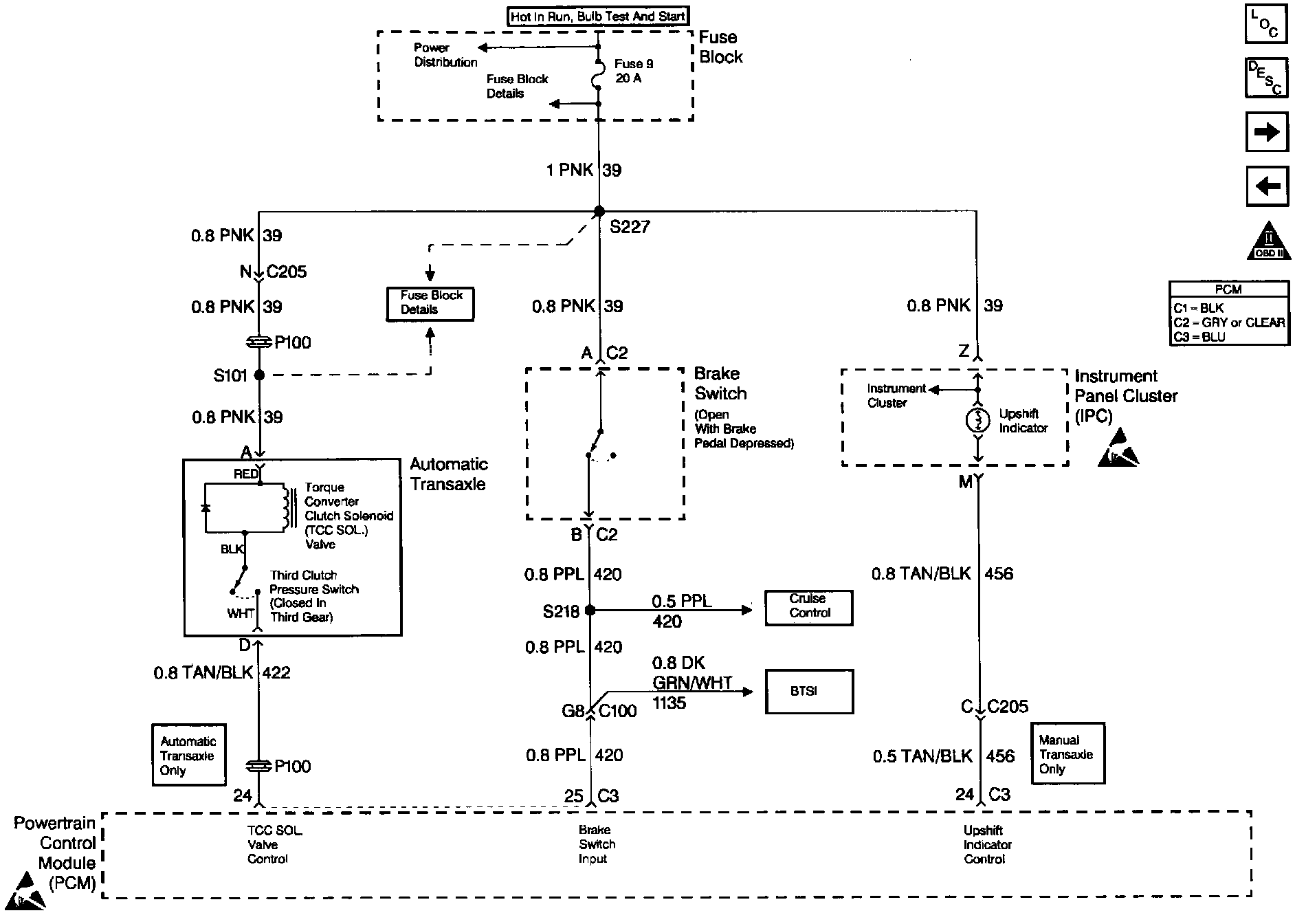

Engine Controls (Transaxle Controls):
