Audible Warning Device Control Module: Locations

LH Front I/P:

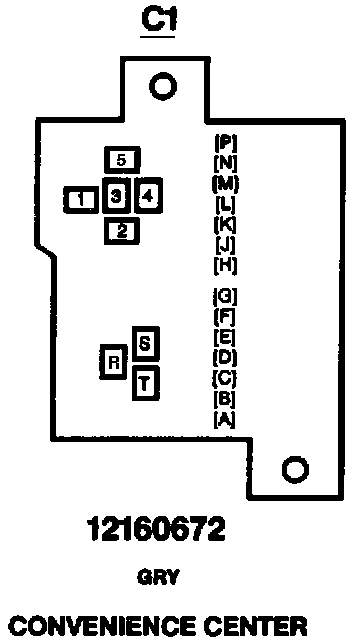

Convenience Center: C1:

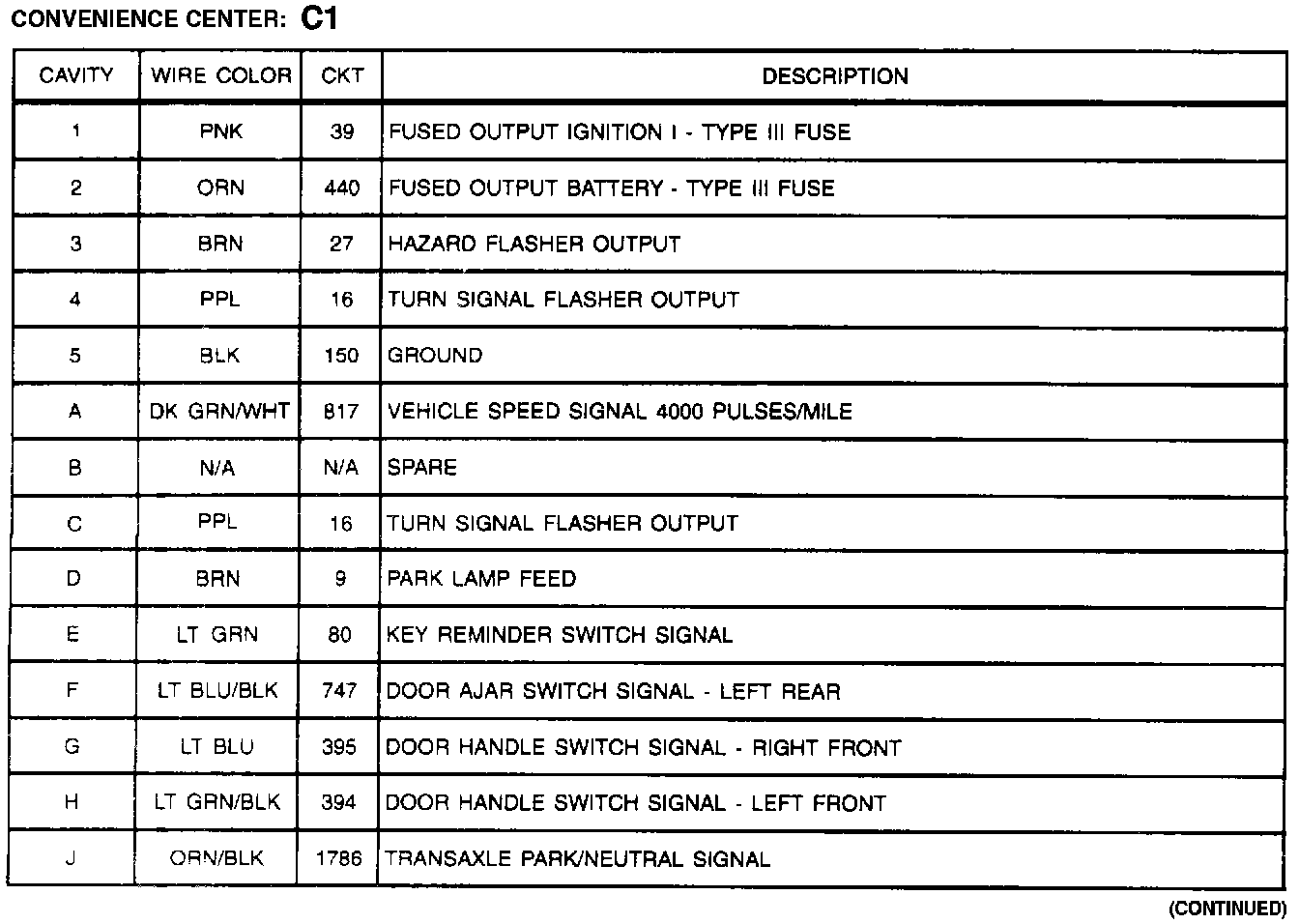

Convenience Center: C1 (Part 1 Of 2):

The Multi-Function Alarm Module is located under the instrument panel in the Convience center.
