Alternator: Service and Repair

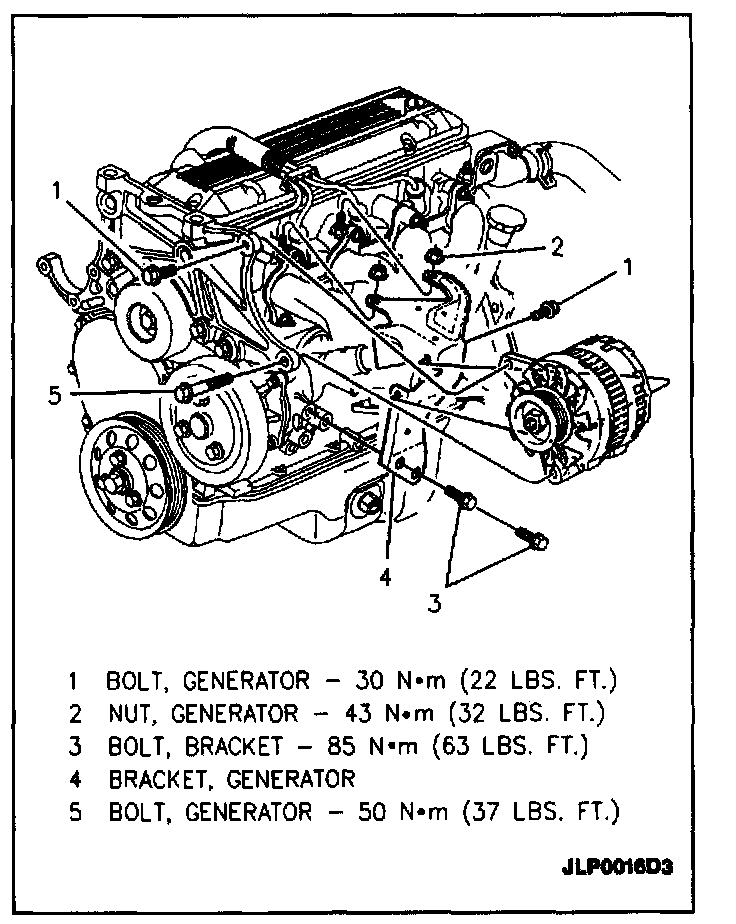

GENERATOR REPLACEMENT







Remove

1. Negative battery cable.
2. Serpentine drive belt from generator.
3. Two bolts to generator brace (includes bolt from generator to brace).
4. Bracket nuts at exhaust manifold.
5. Rear bracket bolt.
6. Electrical connections.
7. Generator.

Install

1. Generator.
2. Electrical connections.
3. Rear generator bolt.
4. Bracket nuts.
5. Upper and lower generator mounting bolts.
6. Serpentine drive belt.
7. Negative battery cable.
