Torque Specifications

Cylinder Head Bolts

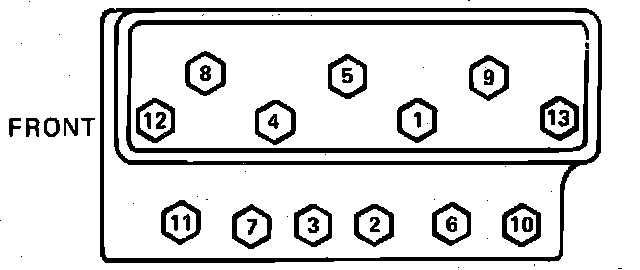

Cylinder head tightening sequence:

In the sequence shown (refer to image):

1. Torque bolts to 25 ft. lbs.
2. Torque bolts to 45 ft. lbs.
3. Torque bolts to 65 ft. lbs.
