Caprice V8-265 4.3L VIN W SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Modules
>>

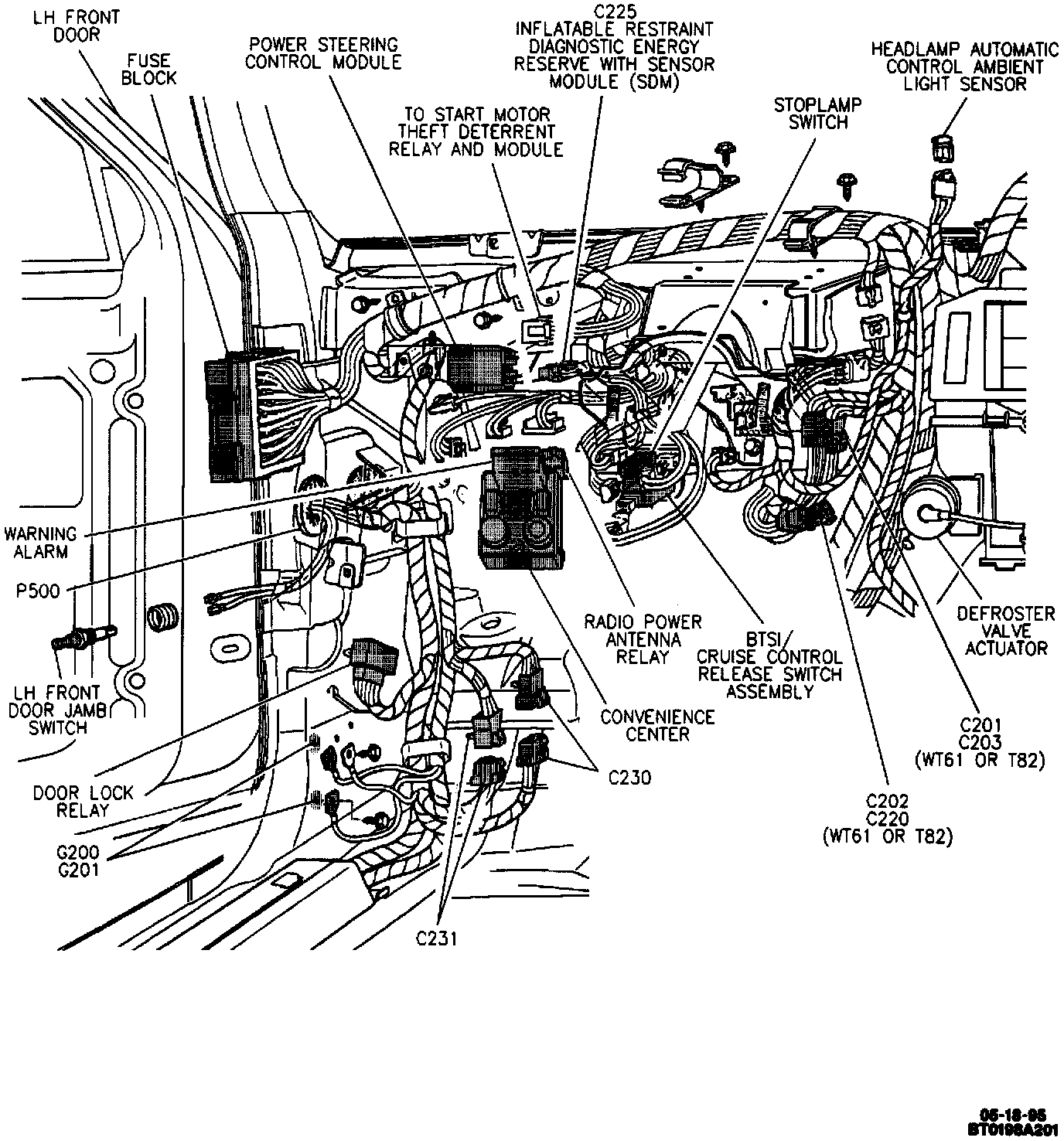

Inflatable Restraint Diagnostic Energy Reserve W/Sensor Module
Inflatable Restraint Diagnostic Energy Reserve W/Sensor Module
Behind Left Side Of I/P:
