Home >> Chevrolet >> 1996 >> Caprice V8-265 4.3L VIN W SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Alarm Module, (Vehicle Antitheft) >> Pass-Key II Theft Deterrent Module

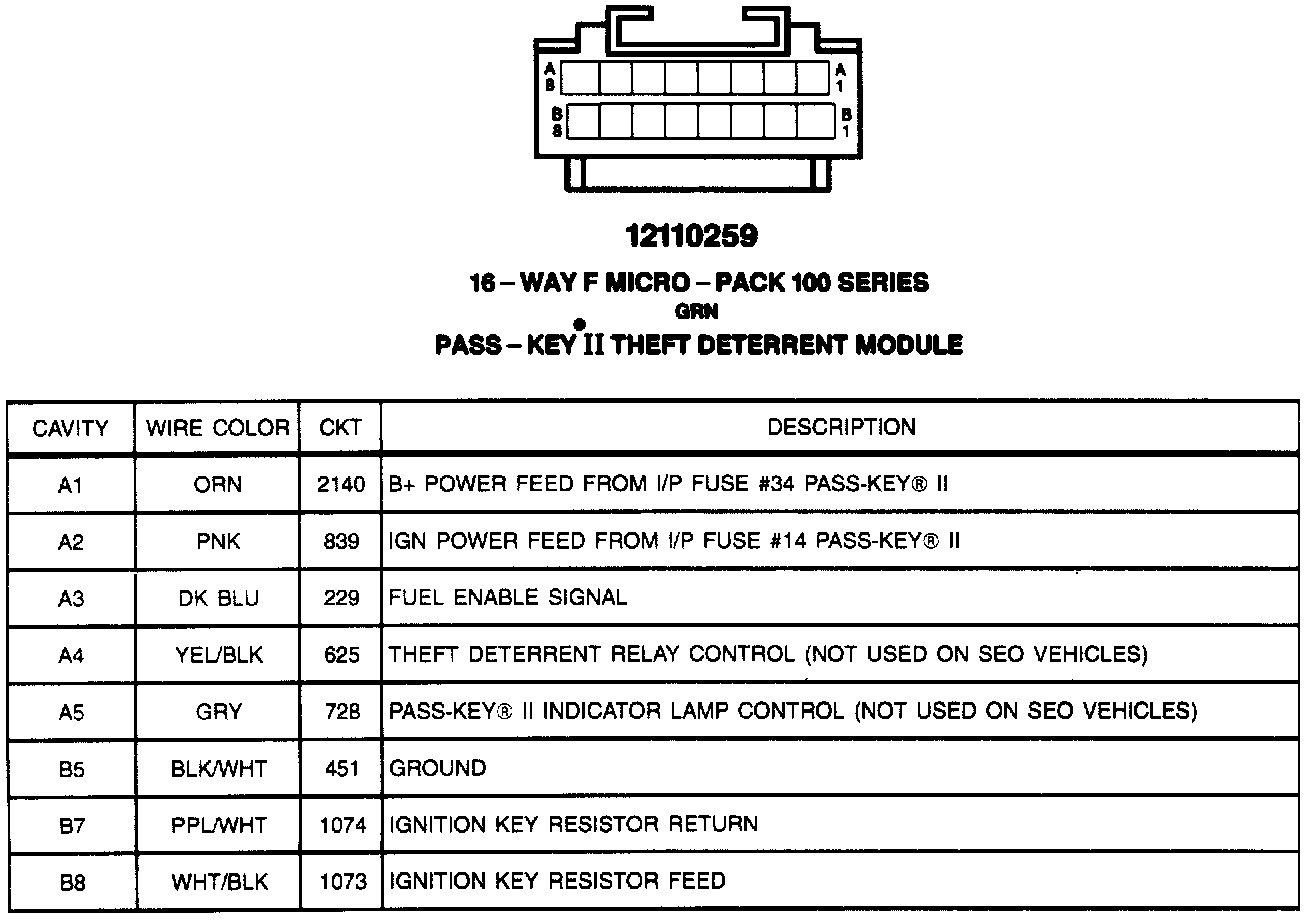

Pass-Key II Theft Deterrent Module

Pass-Key II Theft Deterrent Module:
