Caprice V8-265 4.3L VIN W SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
>>
C1 (Red)
C1 (Red)
PCM

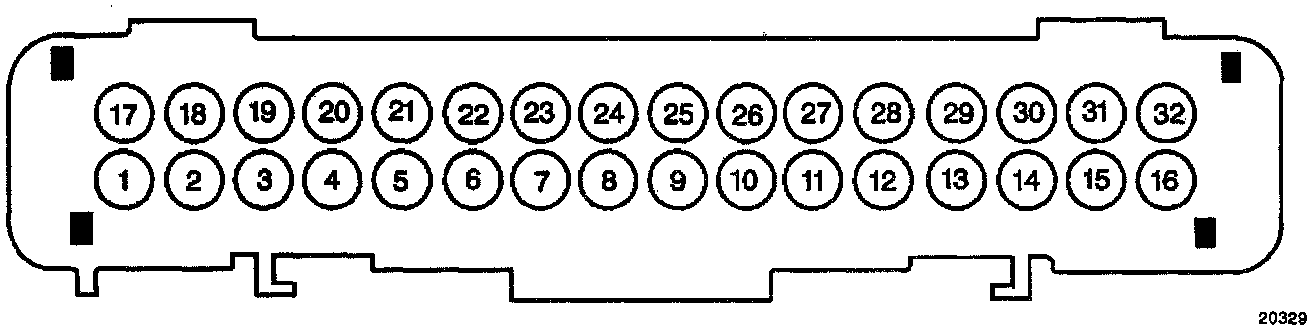

32 PIN CONNECTOR

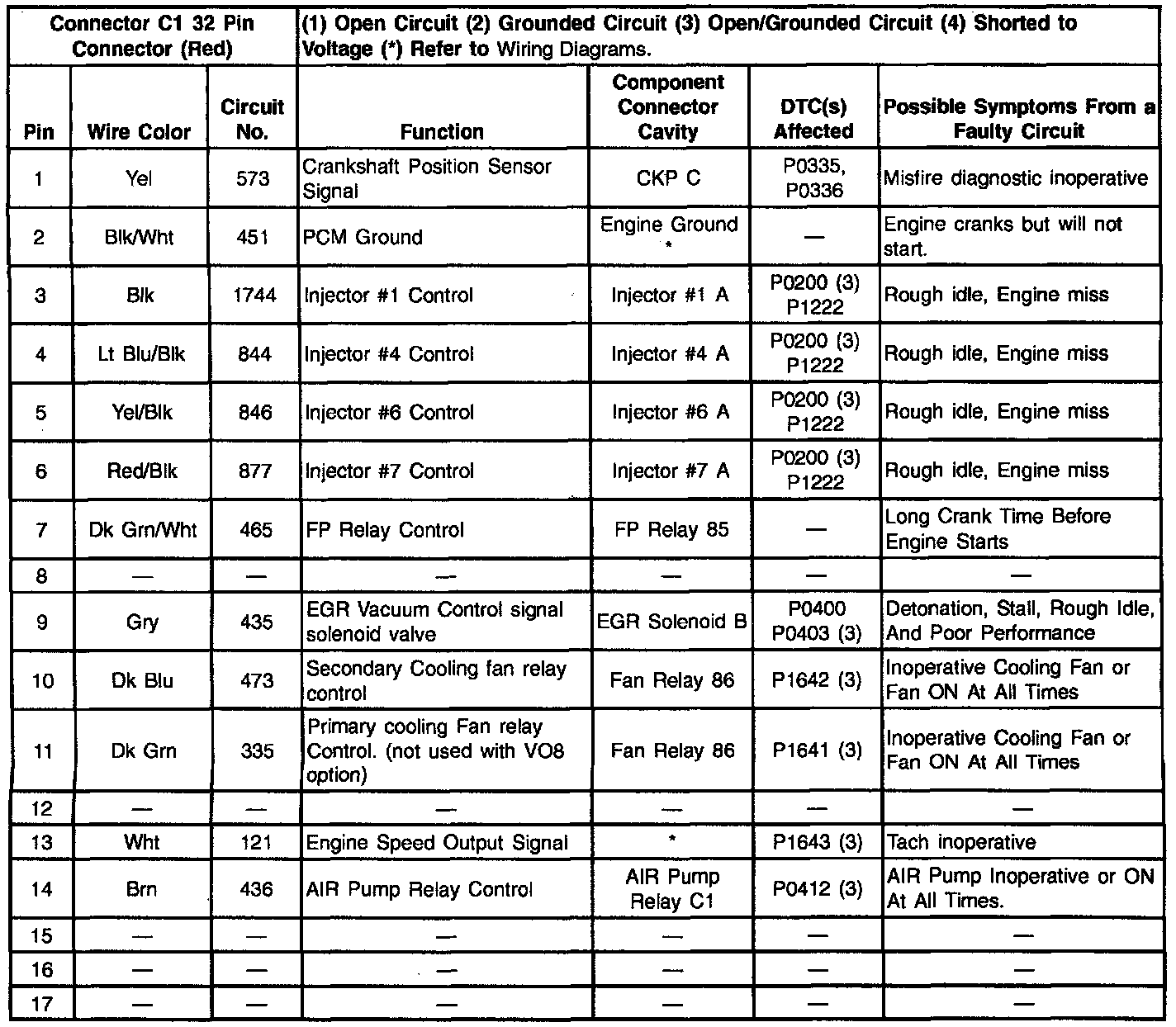

CONNECTOR C1 (RED) PINS 1 - 17
Diagnostic Chart:

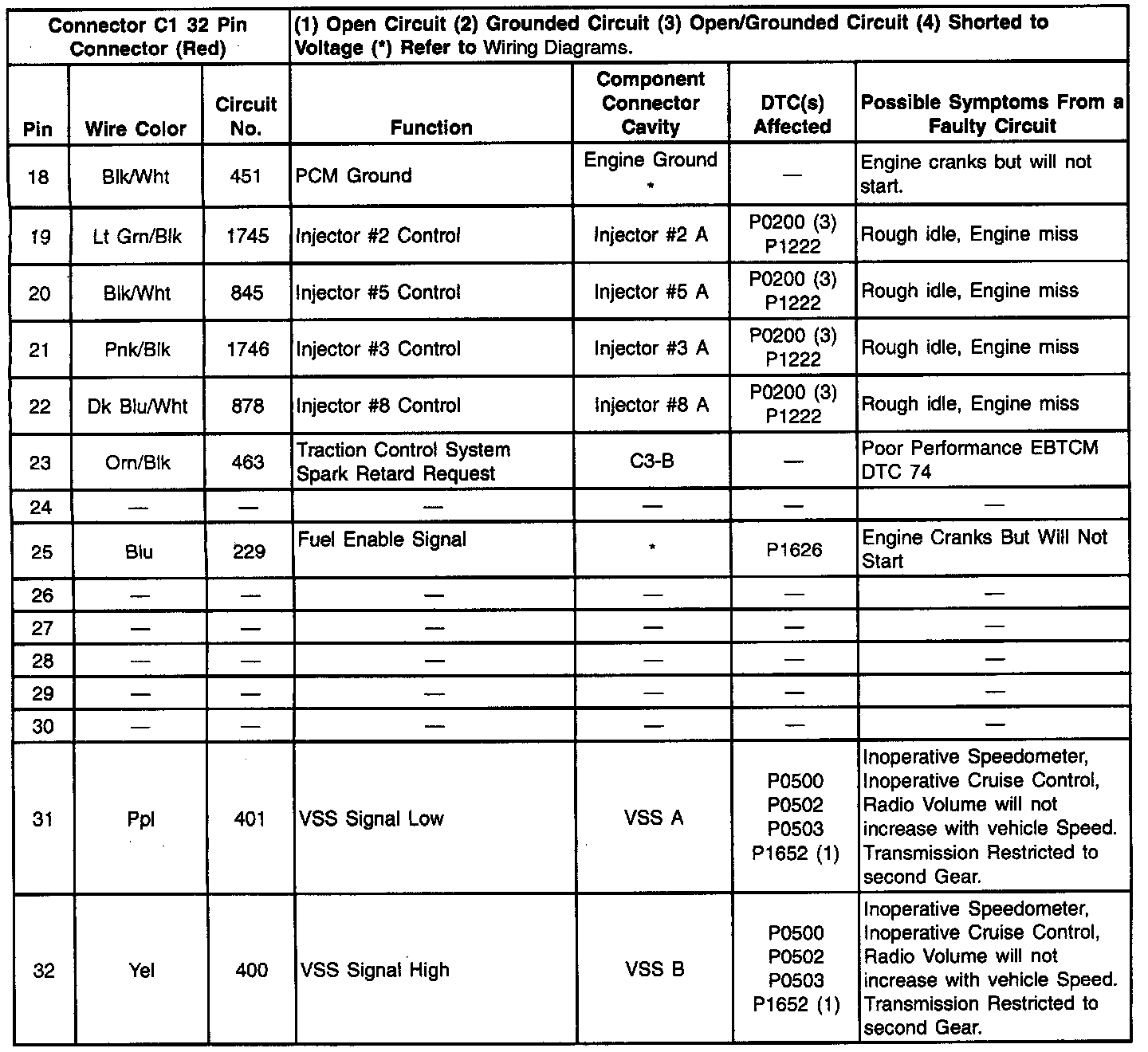

CONNECTOR C1 (RED) PINS 18 - 32
Diagnostic Chart:
