Engine Control Module
>>
Diagrams
>>
Connector Views
>>
C2 (Black)
C2 (Black)
PCM
32 PIN CONNECTOR

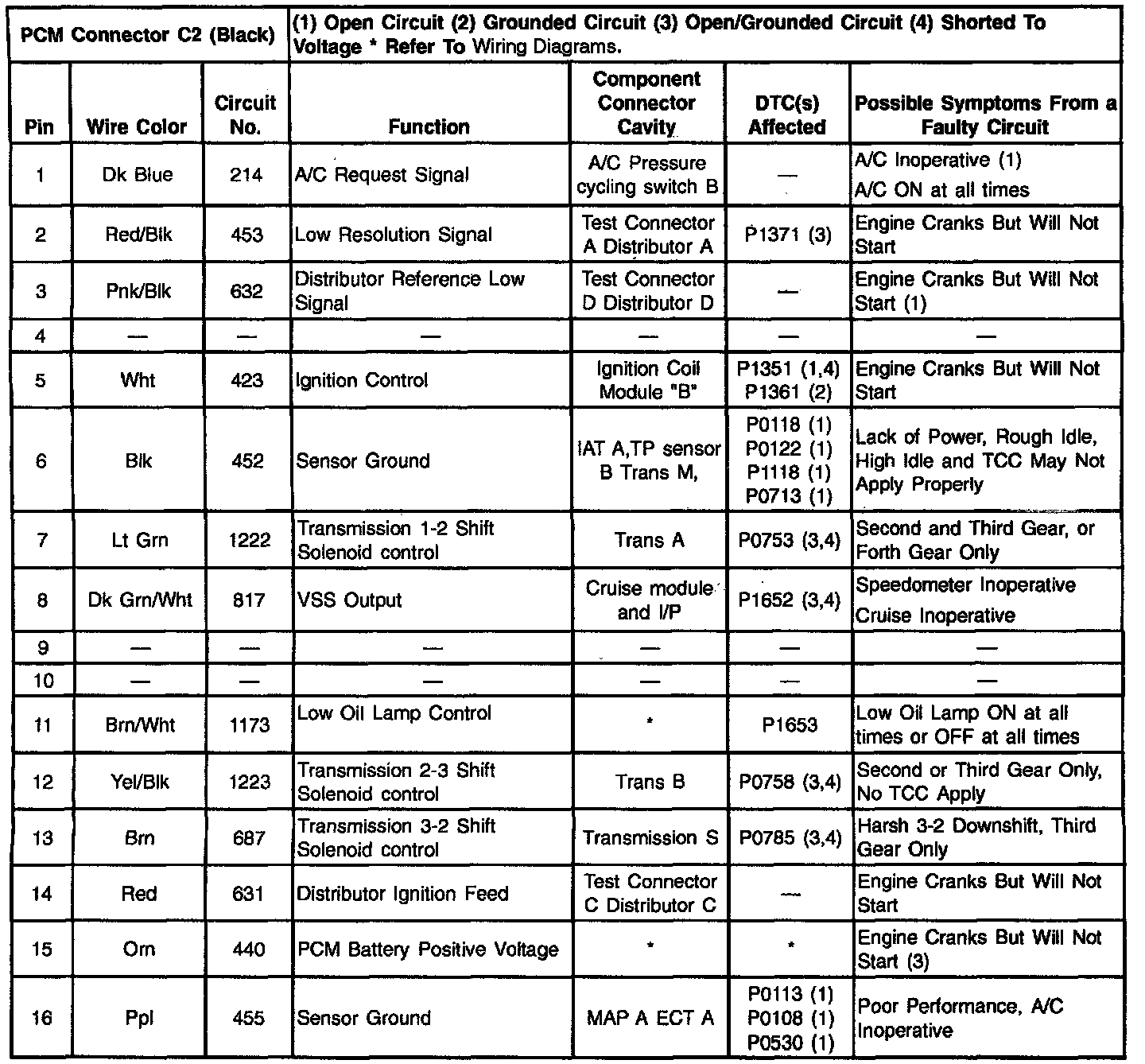

CONNECTOR C2 (BLACK) PINS 1 - 16
Diagnostic Chart:

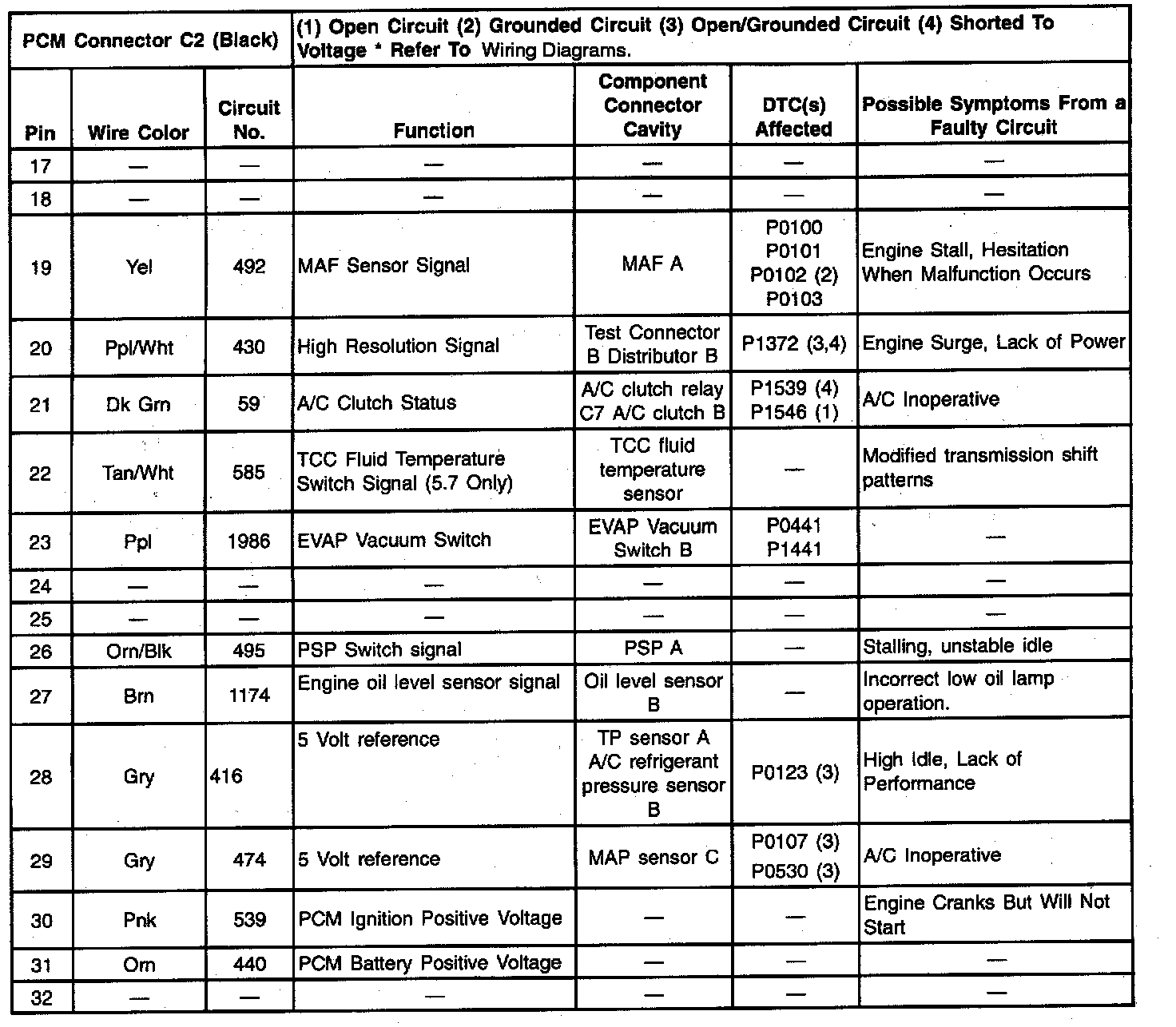

CONNECTOR C2 (BLACK) PINS 17 - 32
Diagnostic Chart:
