Caprice V8-265 4.3L VIN W SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
>>
C4 (Blue)
C4 (Blue)
PCM
32 PIN CONNECTOR

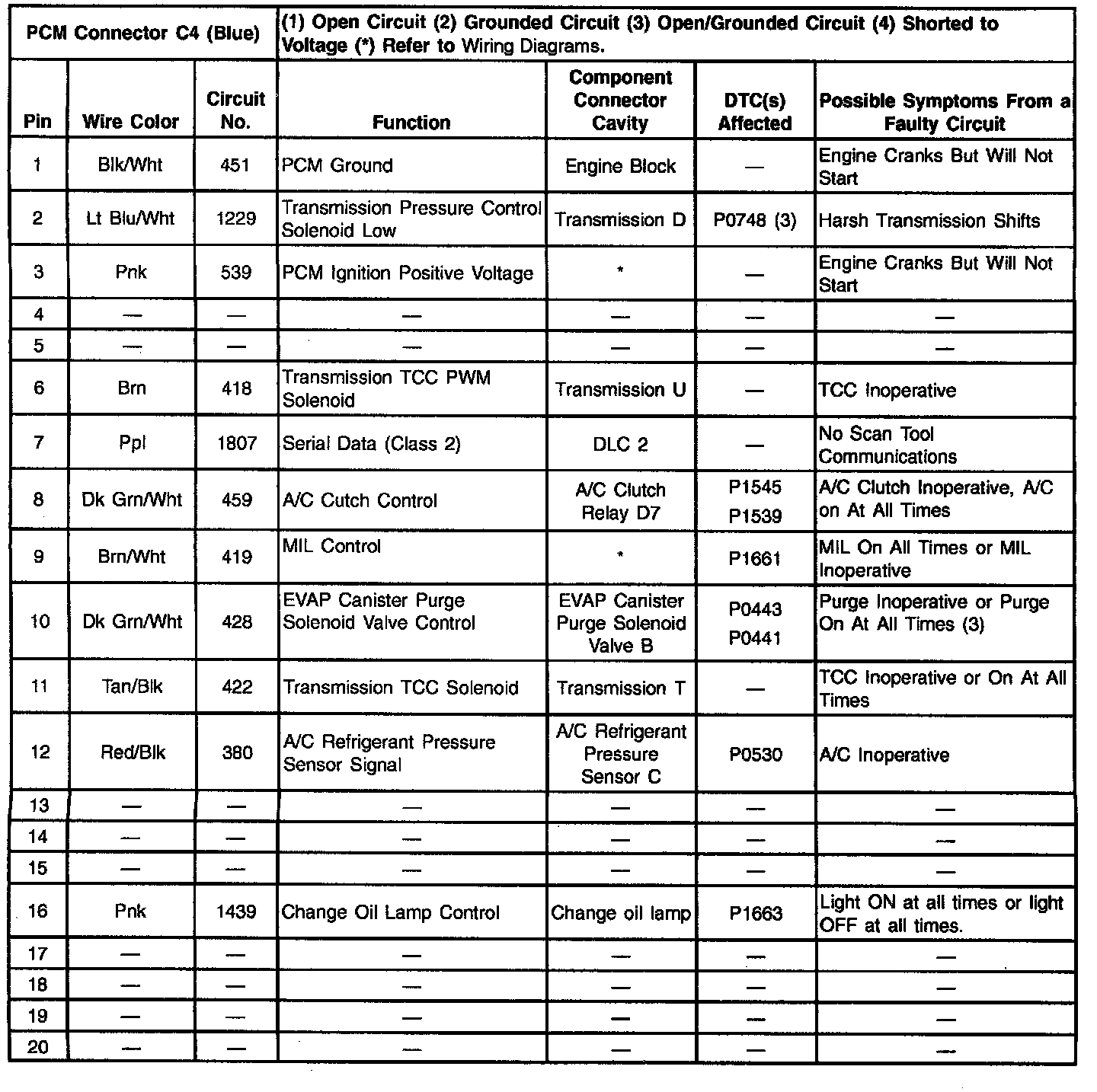

CONNECTOR C4 (BLUE) PINS 1 - 20
Diagnostic Chart:

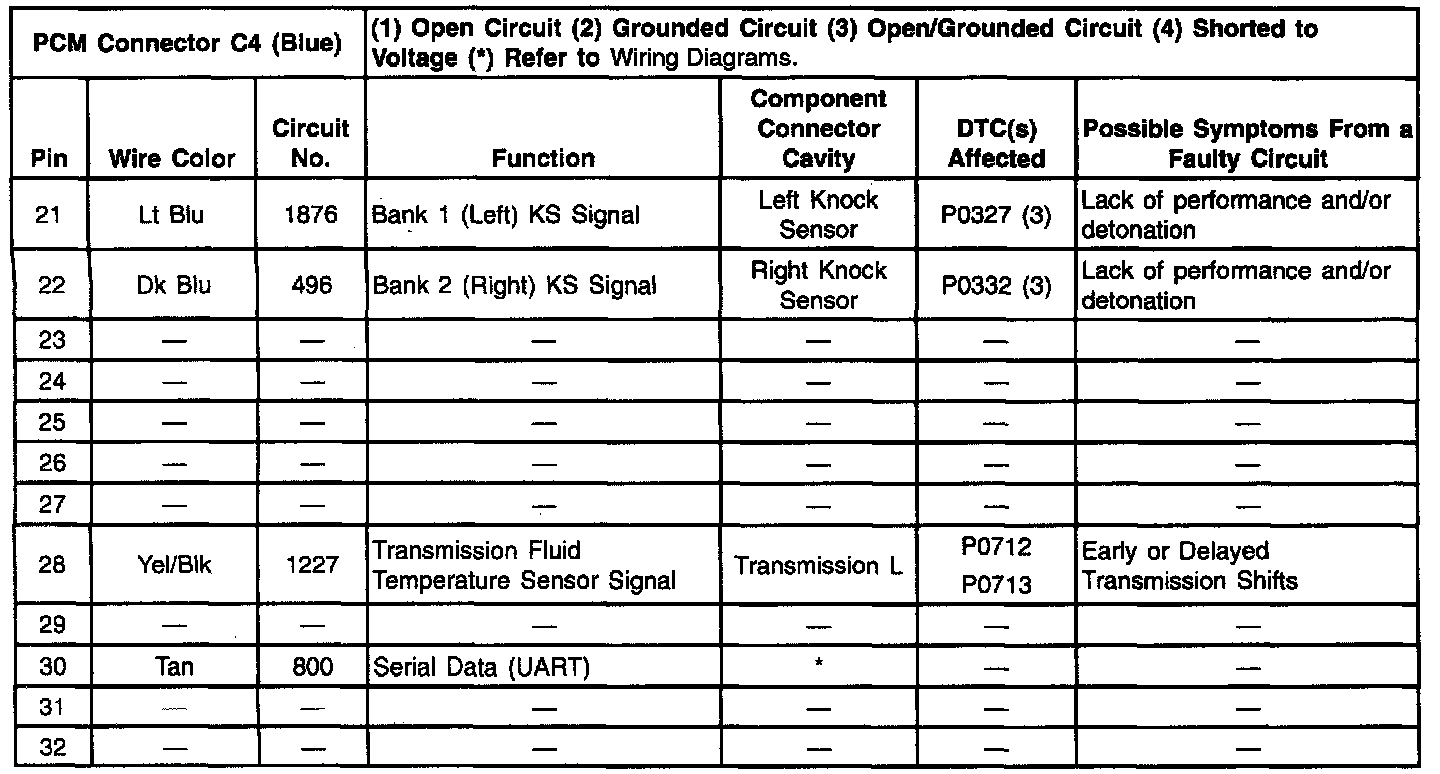

CONNECTOR C4 (BLUE) PINS 21 - 32
Diagnostic Chart:
