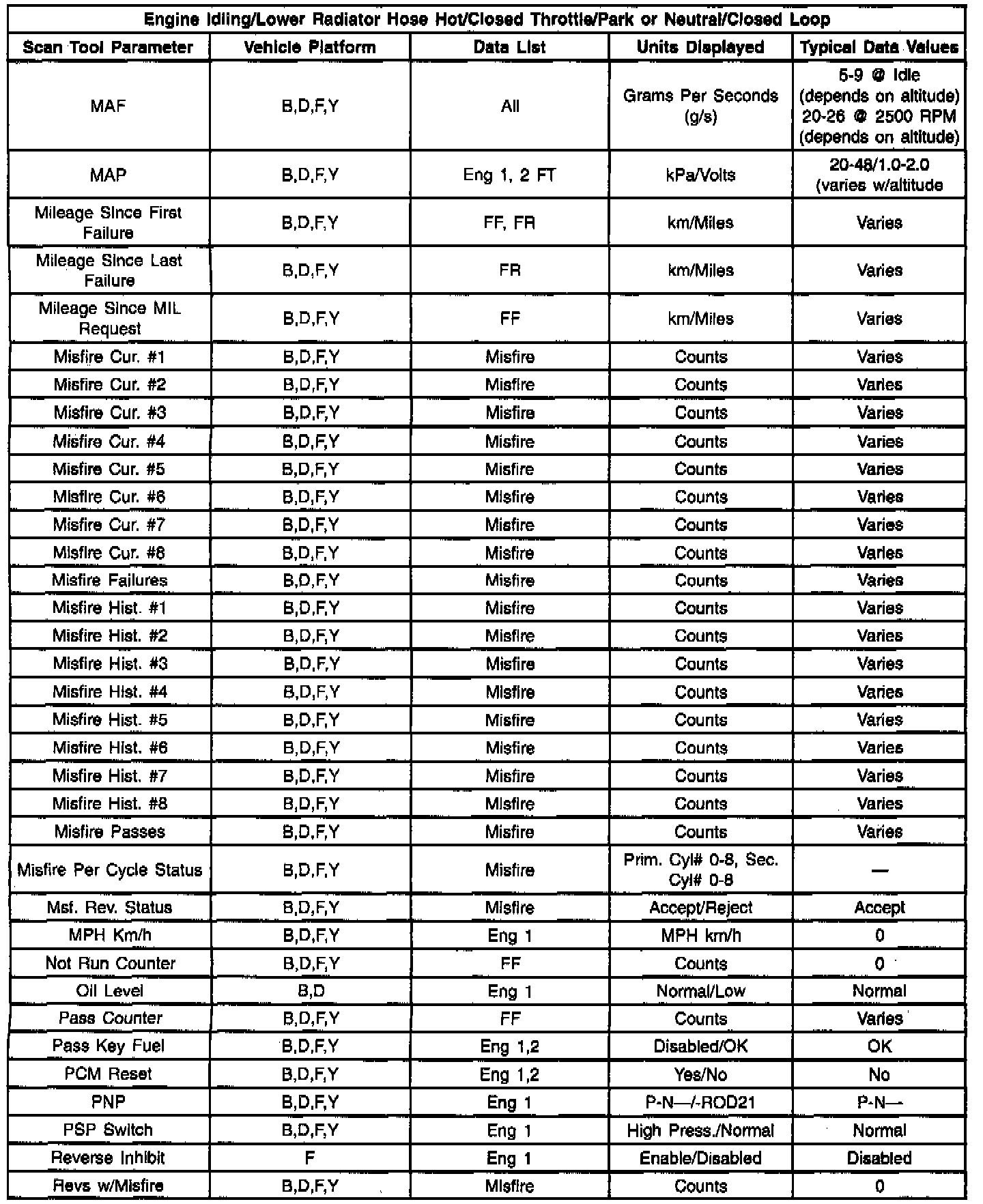

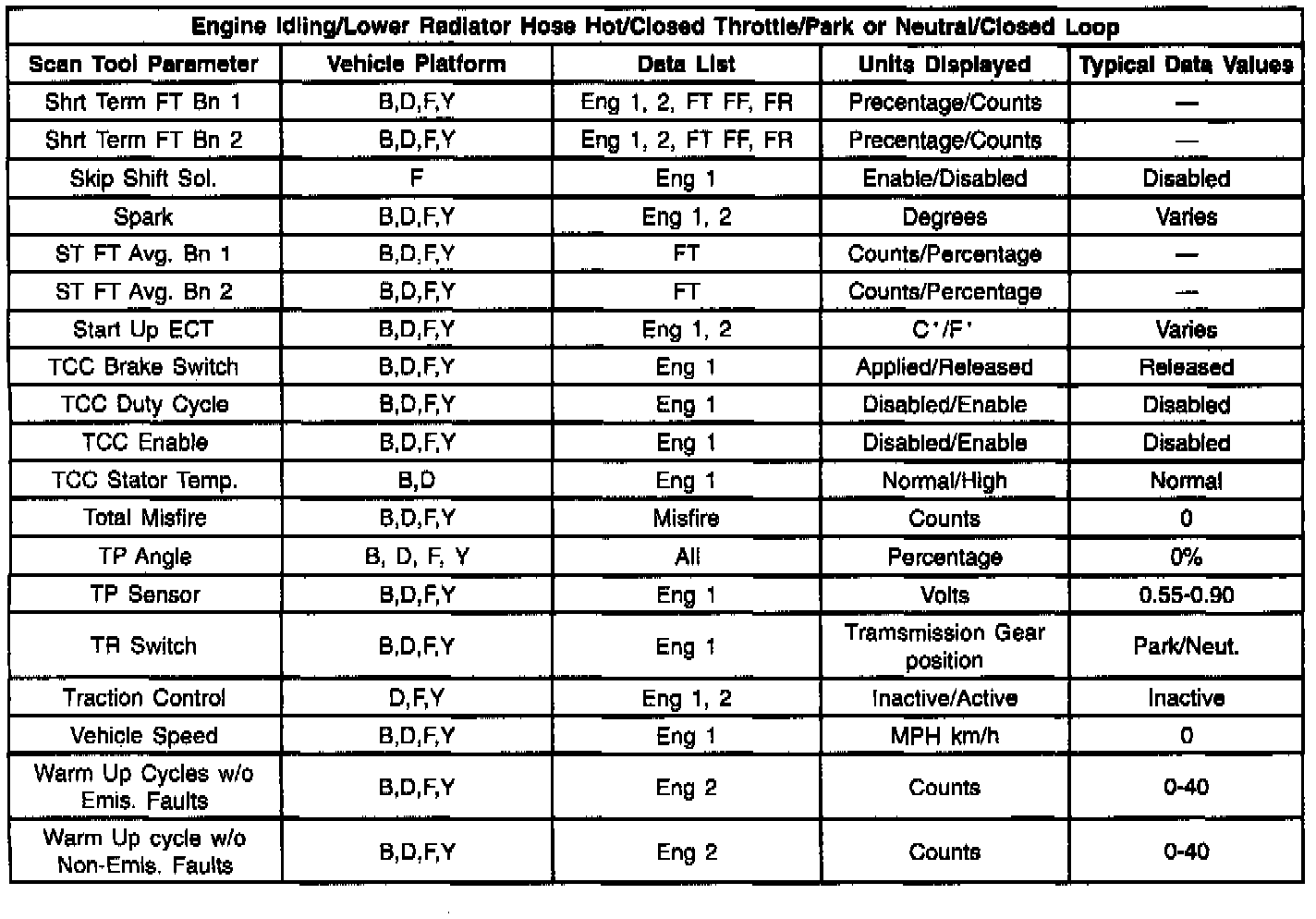

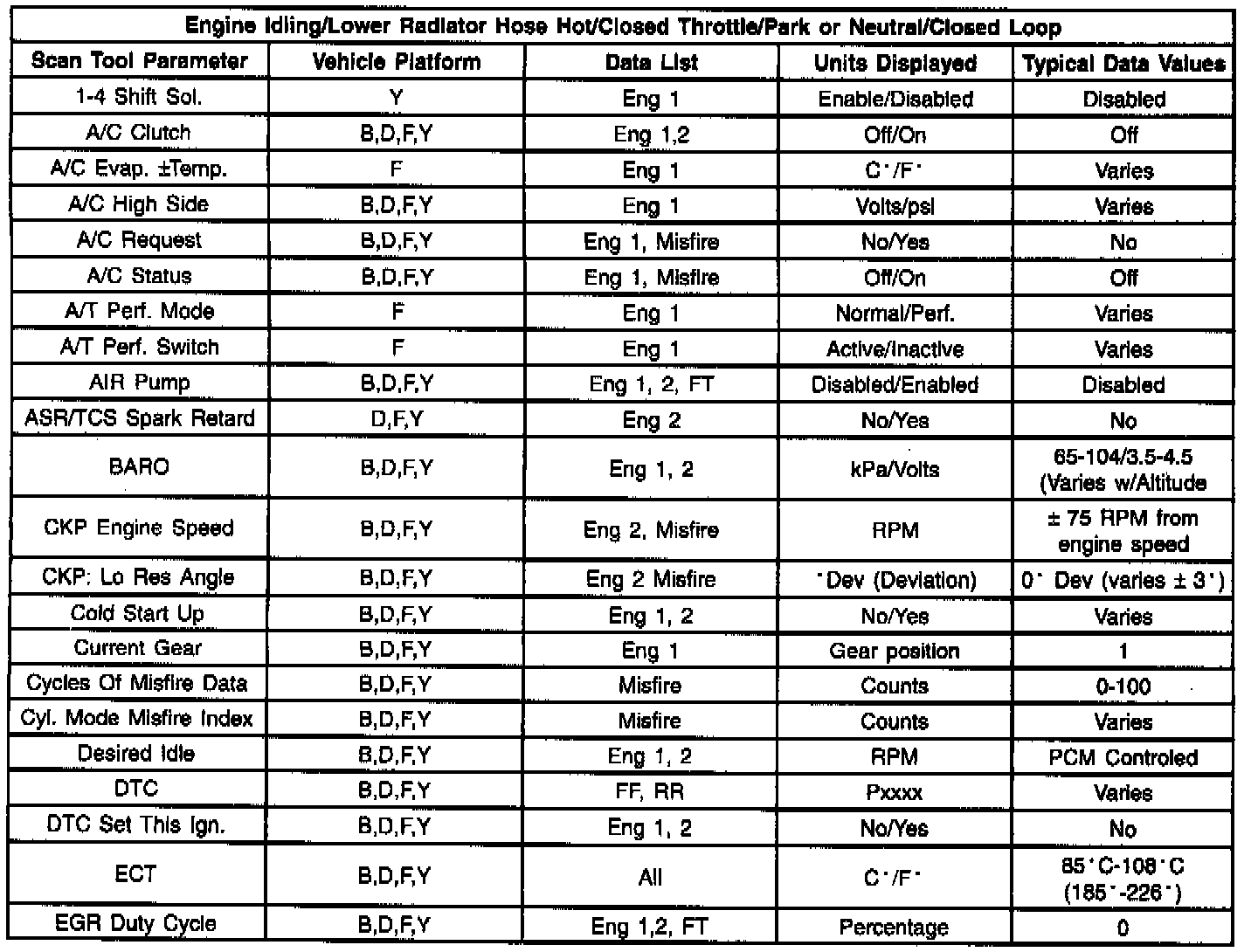

Scan Tool Data List

1-4 Shift Sol. to EGR Duty Cycle





Engine Load to LT FT Avg. Bn 2





MAF to Revs w/Misfire





Shrt Term FT Bn 1 to Warm Up cycle w/o Non-Emis. Faults
