G 20 Van V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Tank Unit
Fuel Tank Unit

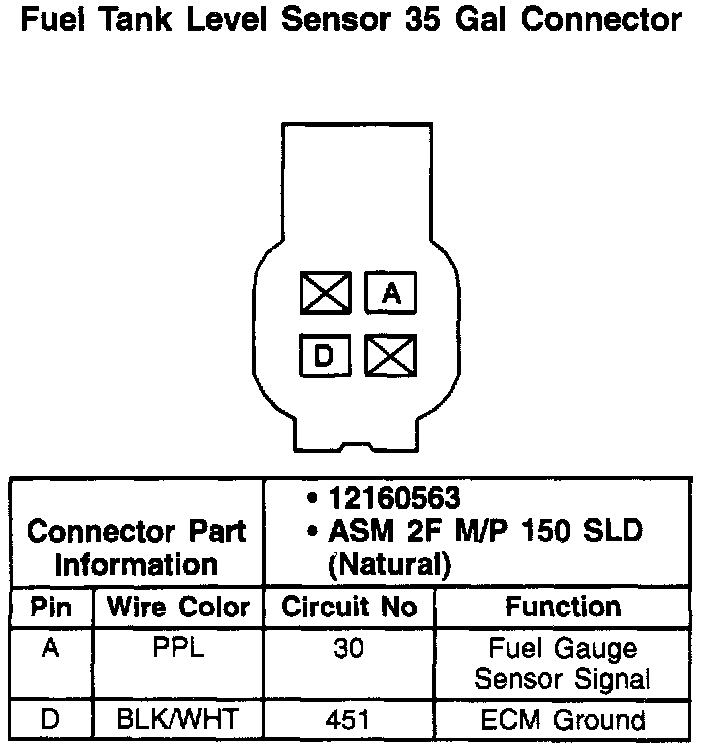

Fuel Tank Level Sensor 35 Gal Connector:

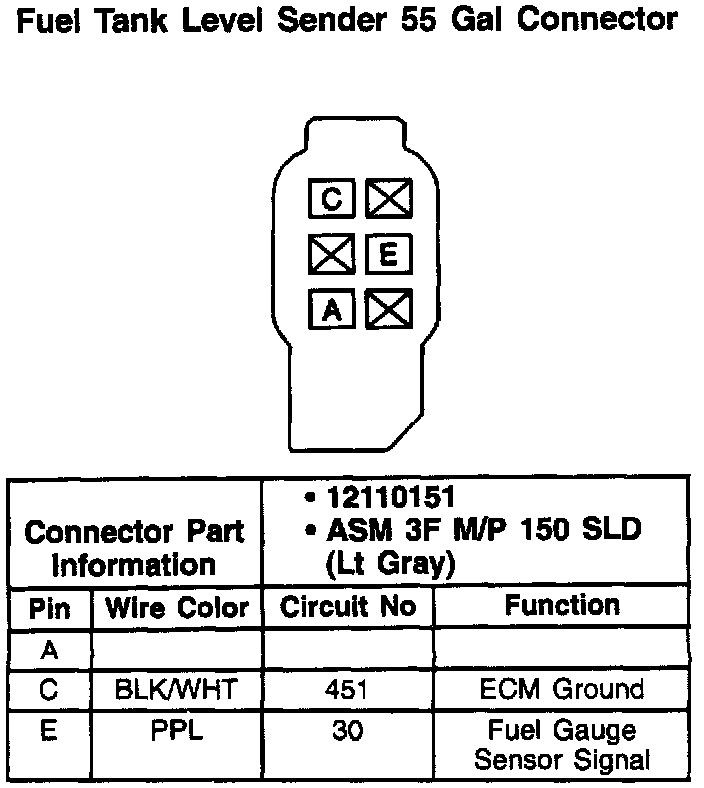

Fuel Tank Level Sender 55 Gal Connector:
