Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1996
>>
G 30 Van V8-454 7.4L VIN J SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
C100-C199
>>
C105
C105

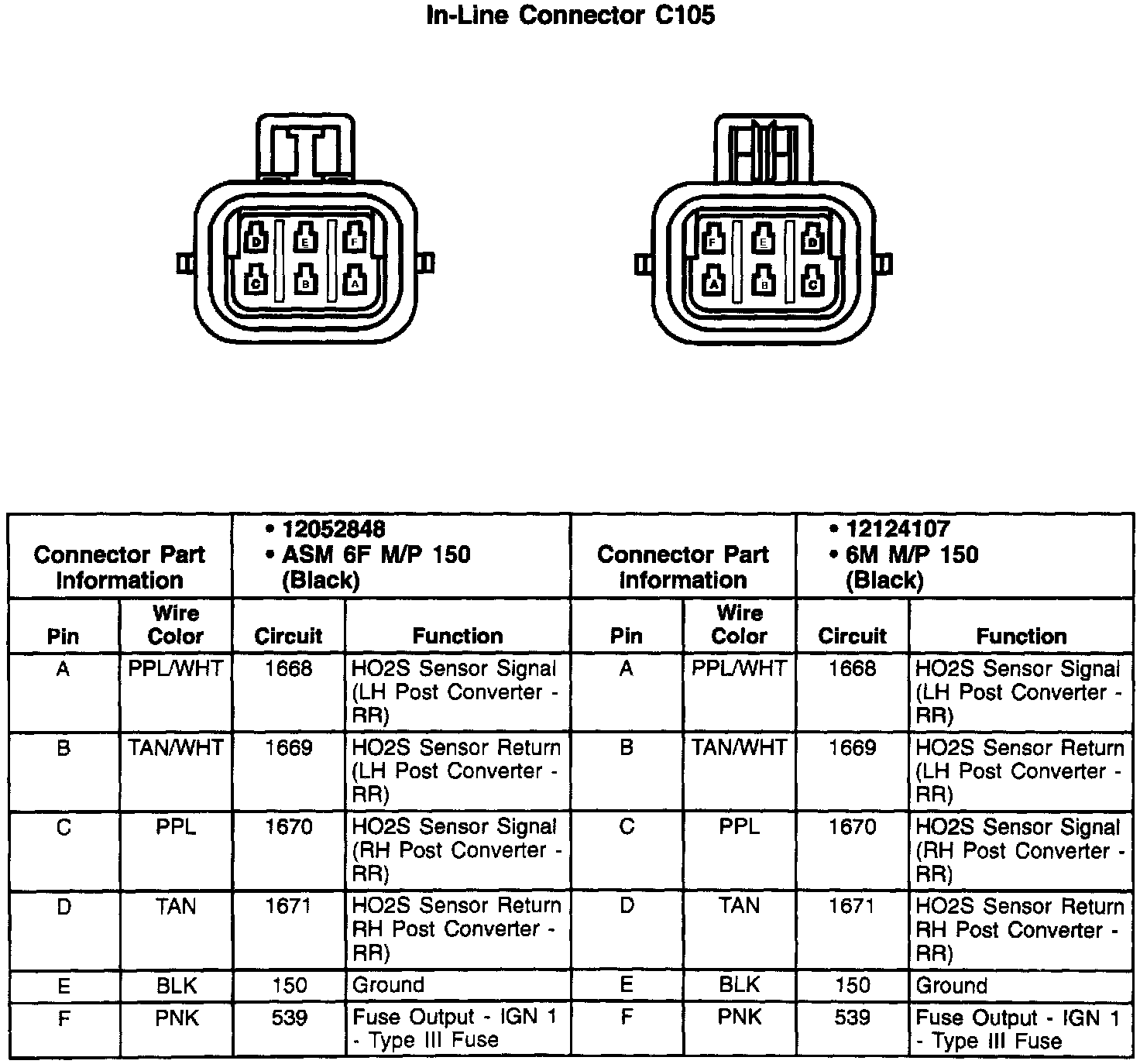

In-Line Connector C105:
