Passenger Van With Rear Auxiliary Heating and Air Conditioning

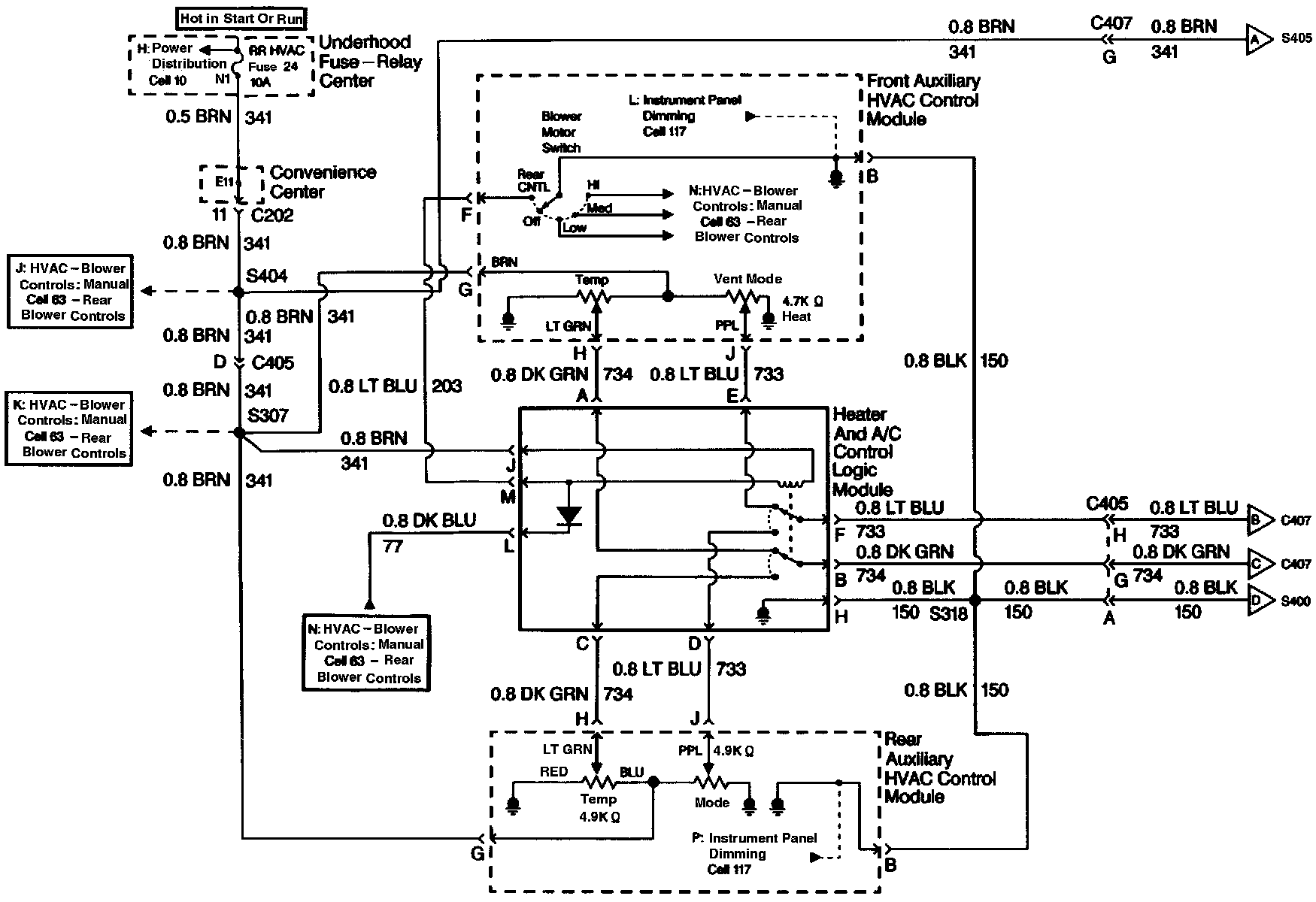

HVAC Air Delivery And Temperature Control:
