Blower Controls

HVAC-Blower Controls:

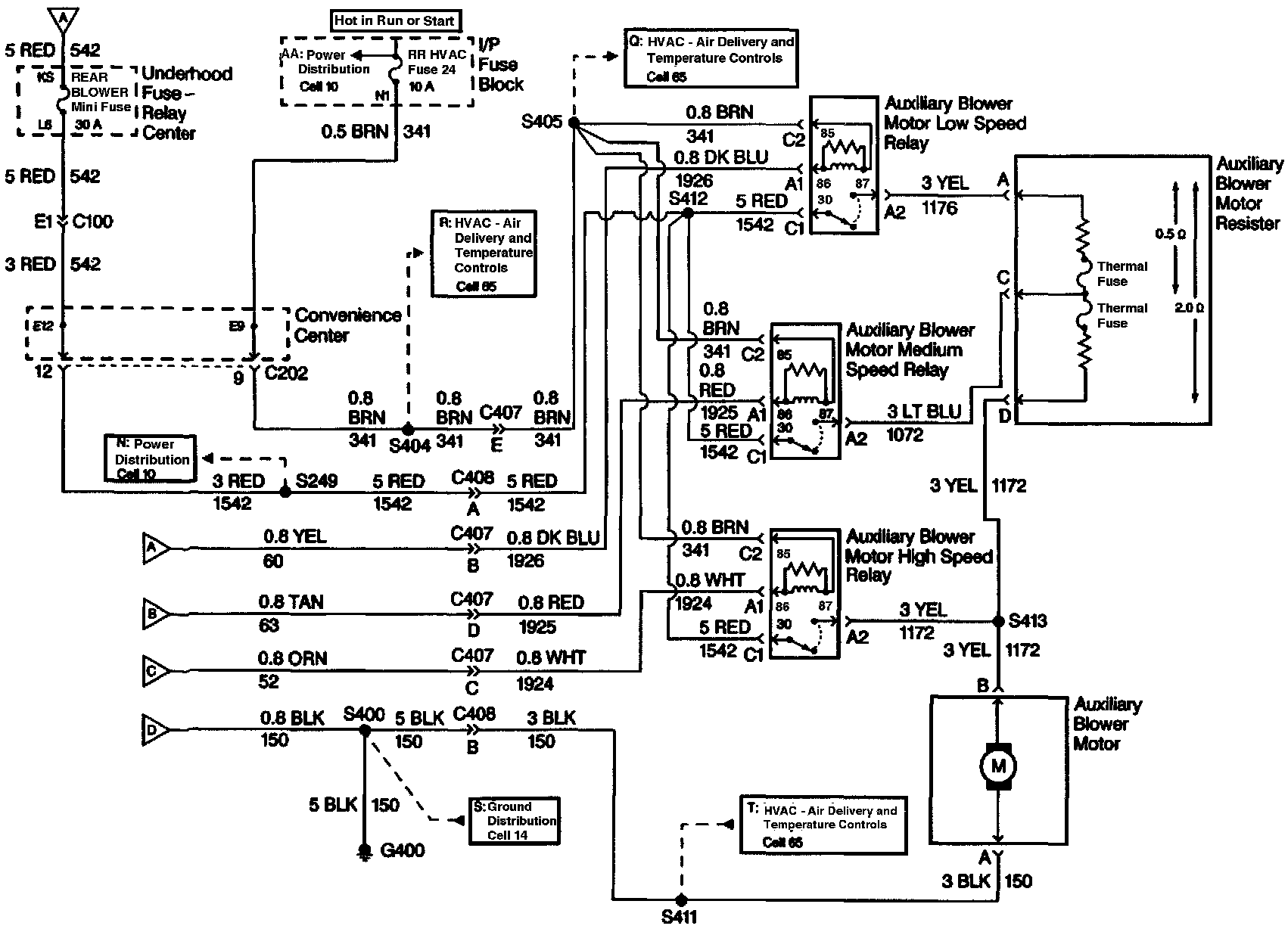

HVAC-Blower Controls (Part 1 Of 3):



HVAC-Blower Controls (Part 2 Of 3):



HVAC-Blower Controls (Part 3 Of 3):
