Lumina APV V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
I/P Fuse Block
I/P Fuse Block

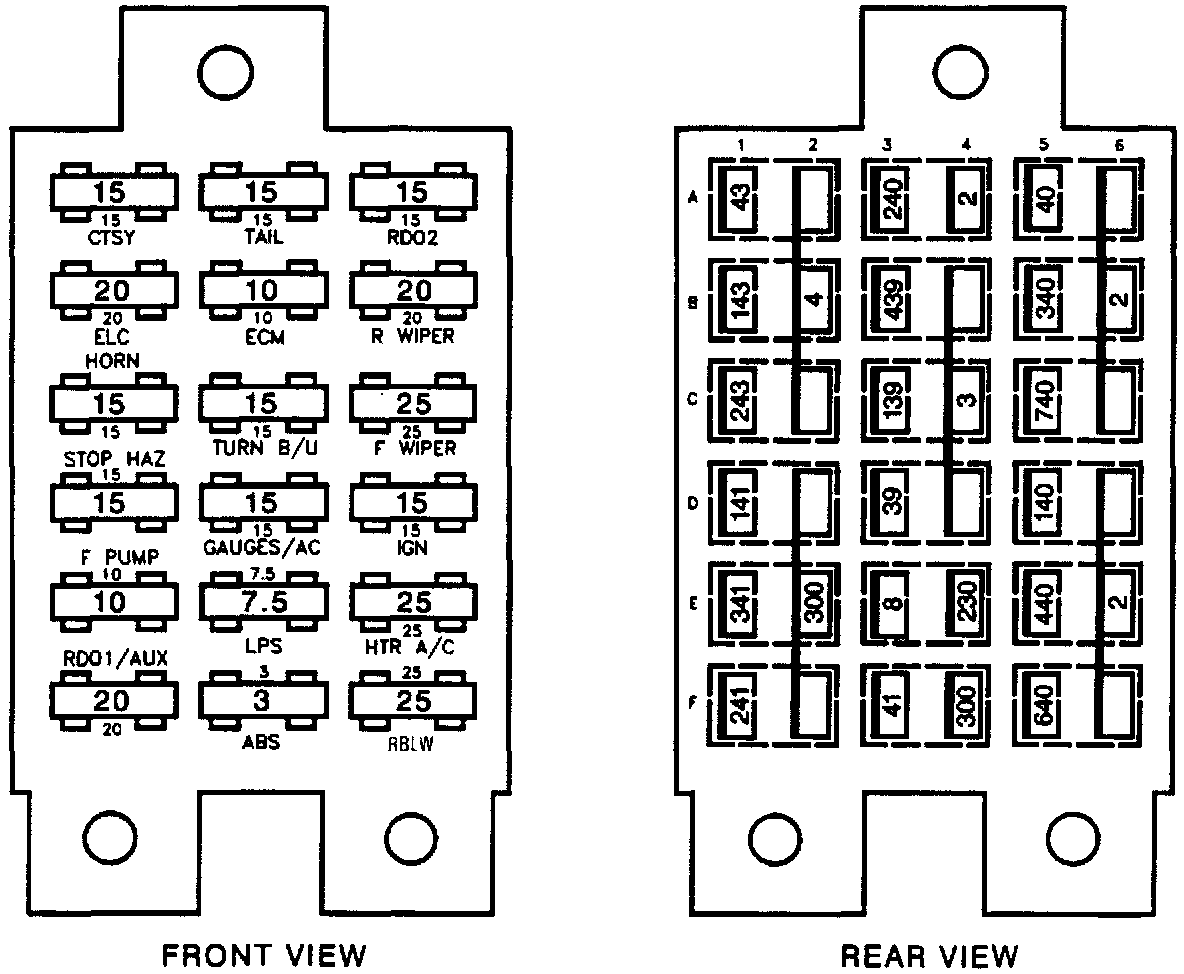

I/P Fuse Block:

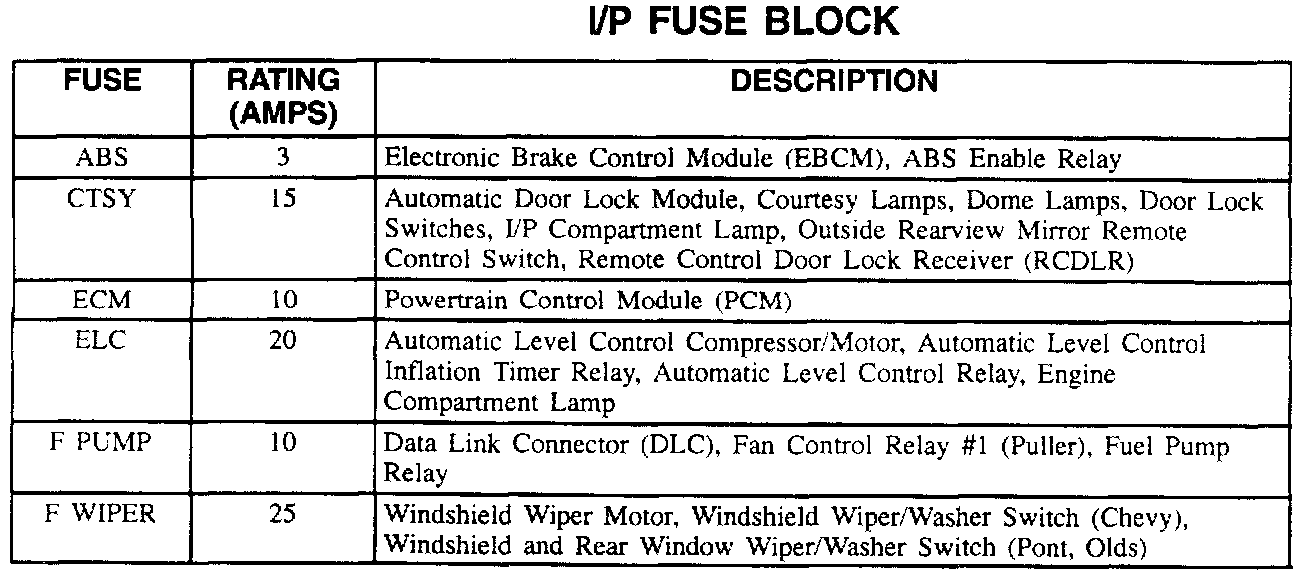

Fuse Ratings (Part 1 Of 2):

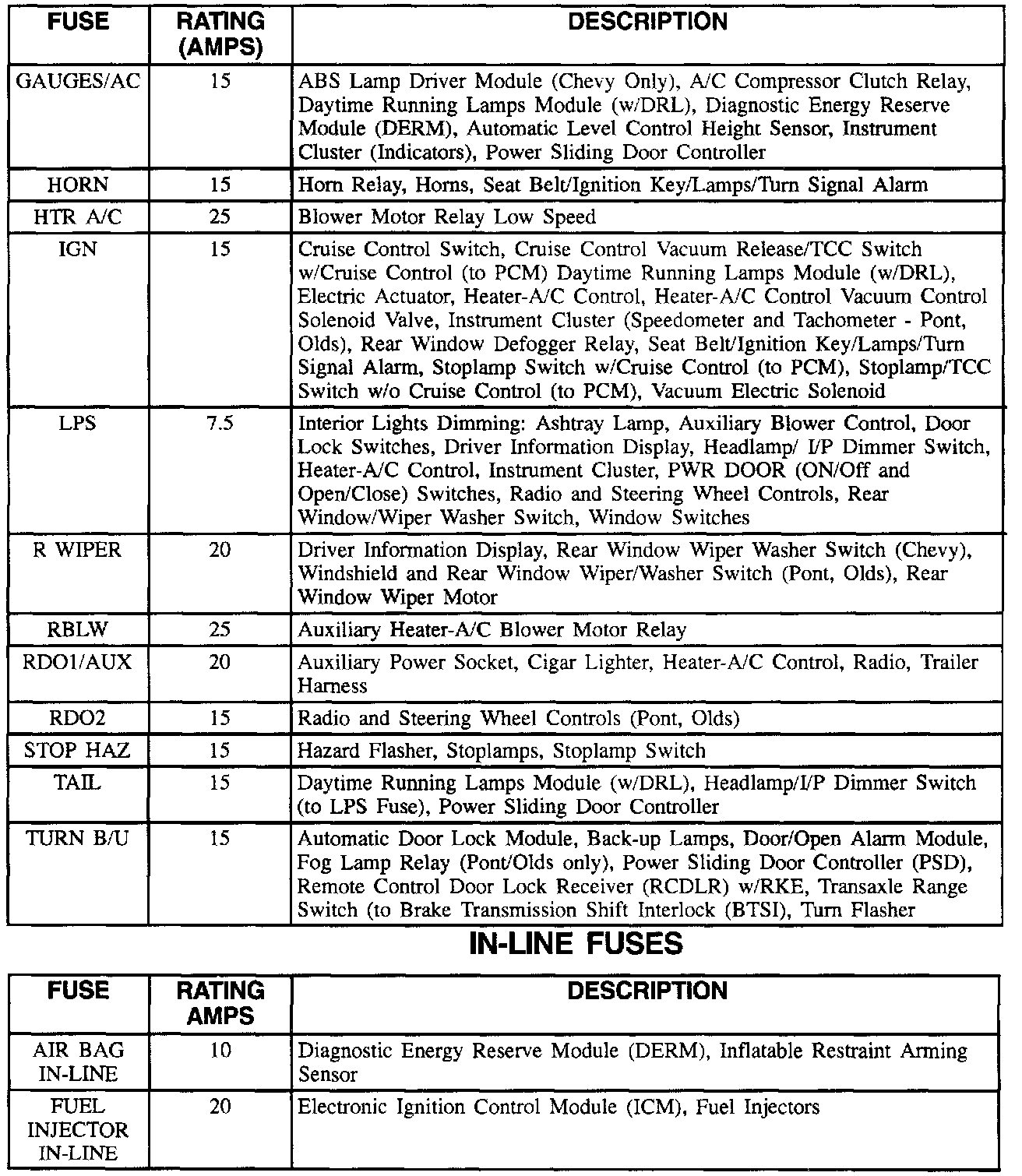

Fuse Ratings (Part 2 Of 2):
