Crankshaft Position Sensor Low Resolution 7X
>>

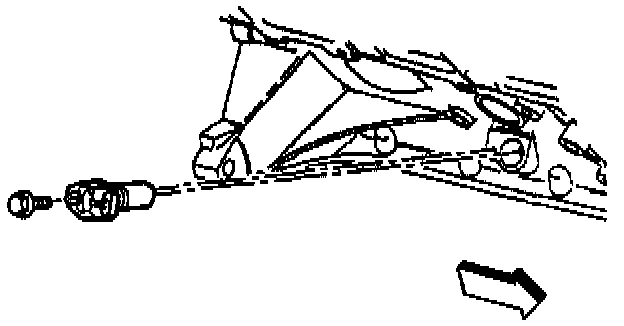

Assembly View
Assembly View
The 7X crankshaft position sensor, a magnetic sensor, is bolted to the lower right side of the engine block.
