Home >> Chevrolet >> 1998 >> Astro Van 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Locations >> Compressor >> Without Auxiliary A/C

Without Auxiliary A/C

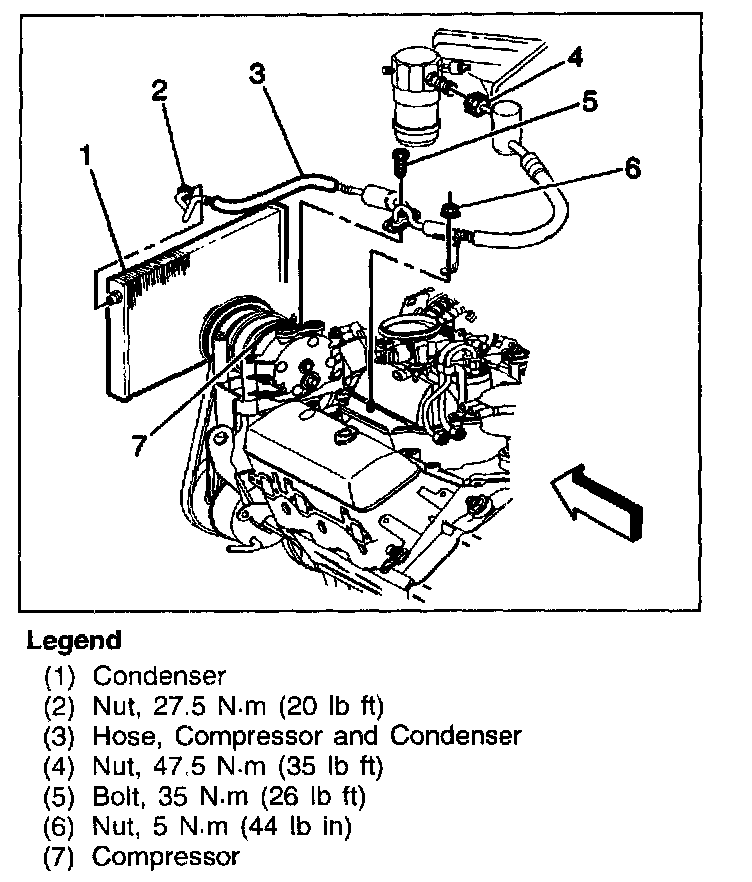

Compressor And Condenser Hose:
