Home >> Chevrolet >> 1998 >> Astro Van 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Electronic Brake Control Module >> Locations >> Component Locations

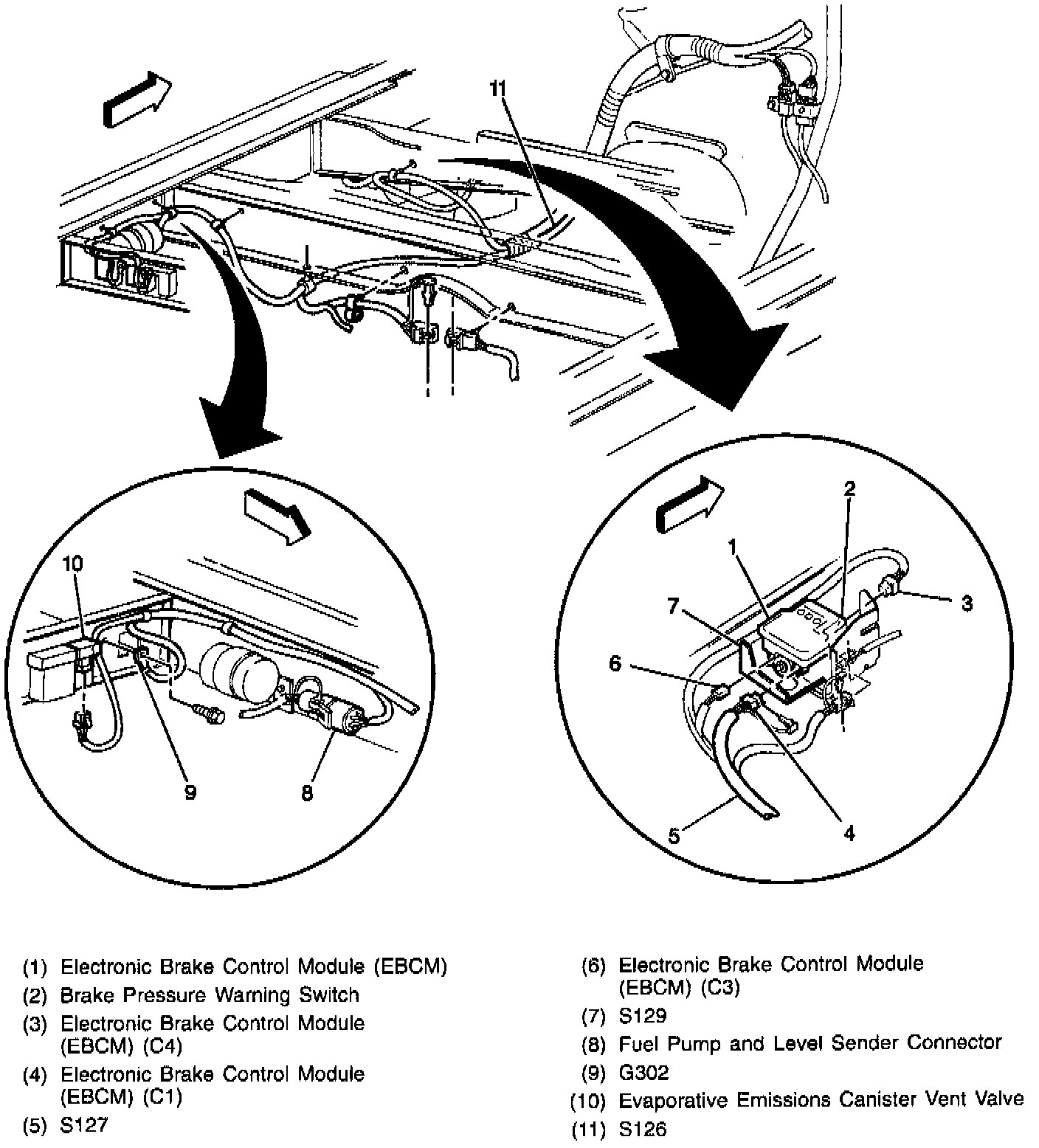

Component Locations





Left front side of frame, left of transmission.
