Differential Assembly Installation

^ Tools Required
- J8092 Driver Handle

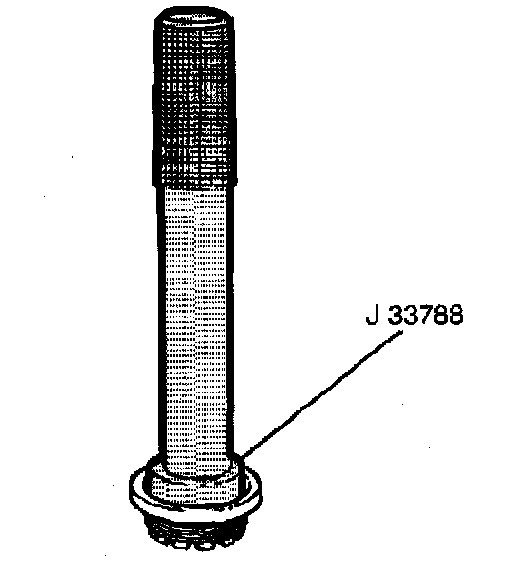

- J33788 Output Shaft Bearing Installer
- J23423-A Side Bearing Cup Installer
- J33792 Side Bearing Adjuster Socket
- J42211 Bearing Installer
- J42213 Side Bearing Adjuster Socket





1. Install the bearing into the right sleeve using the J33788.





2. Install the bearing into the left sleeve using the J42211.
3. Install the sleeves into the carrier. Thread the sleeves in completely.

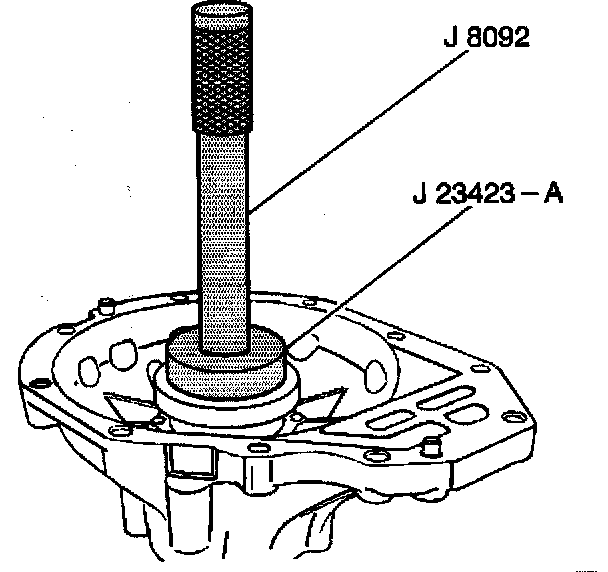

4. Install the side bearing cups into the carrier using the J23423-A and the J8092.





5. Install the differential case assembly to the carrier.
5.1. Place the differential case assembly into the carrier half that contains the pinion gear.

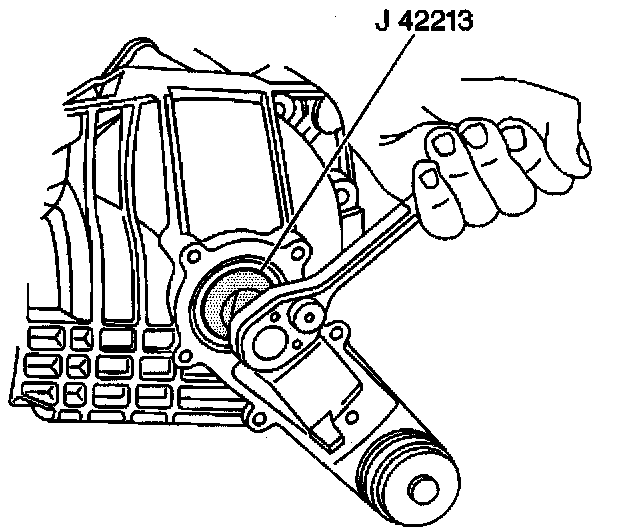

5.2. Turn the left sleeve in toward the differential case using the J42213 until backlash is felt between the ring and pinion gear.

6. Assemble the carrier halves. Do not use sealer at this time.

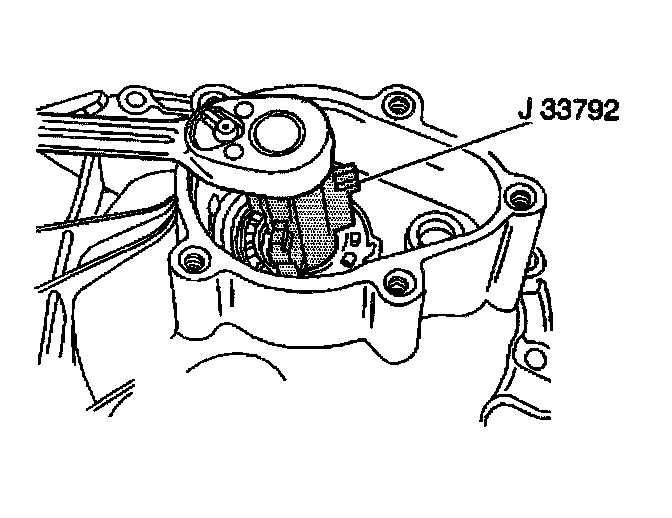

7. If the carrier halves do not contact completely, back out the right hand adjusting sleeve. Use the J33792.

NOTICE: Refer to Fastener Notice in Service Precautions.

8. Install the four carrier halves assembly bolts.
^ Tighten the bolts to 50 Nm (37 ft. lbs.).
