Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1998
>>
C 1500 Truck 2WD V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
HVAC Blower Control
>>
Without A/C
>>
Auxiliary Heater Blower
Auxiliary Heater Blower

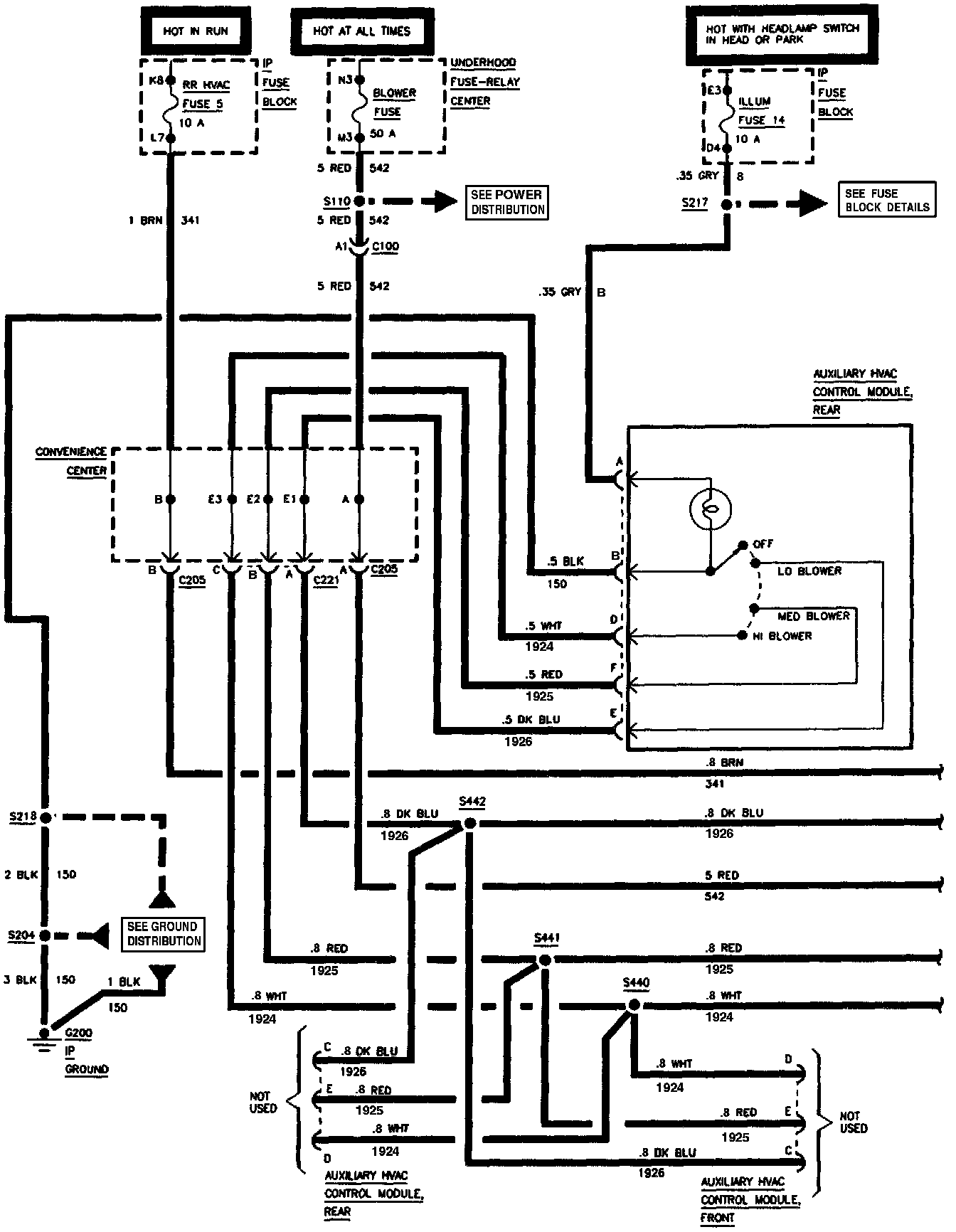

Auxiliary Heater Blower, W/O A/C (Part 1 Of 2):
Auxiliary Heater Blower, W/O A/C (Part 2 Of 2):
