Front Toe Adjustment

ADJUSTMENT PROCEDURE
1. Ensure that the steering wheel is set in a straight-ahead position within +3.6°.
2. Make toe adjustments separately at each individual tire and wheel.

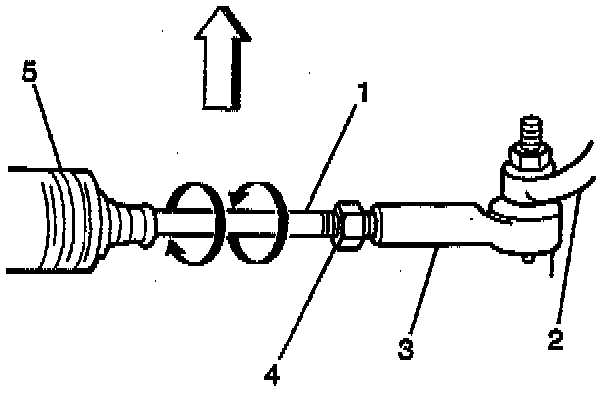

3. Loosen the nut on the inner tie rod.
4. Adjust the toe to specification by turning the inner tie rod. Refer to ALIGNMENT SPECIFICATIONS.
5. Verify that the steering gear boot seal is not twisted.

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

Tighten
Tighten the nut to 47 Nm (35 ft. lbs.).

6. Check the toe alignment specifications for adjustment. Readjust the assembly by repeating steps if necessary. Refer to ALIGNMENT SPECIFICATIONS.
