Fluid - M/T: Testing and Inspection

1. Raise and suitably support the vehicle.
2. Clean any dirt from around the fill plug.

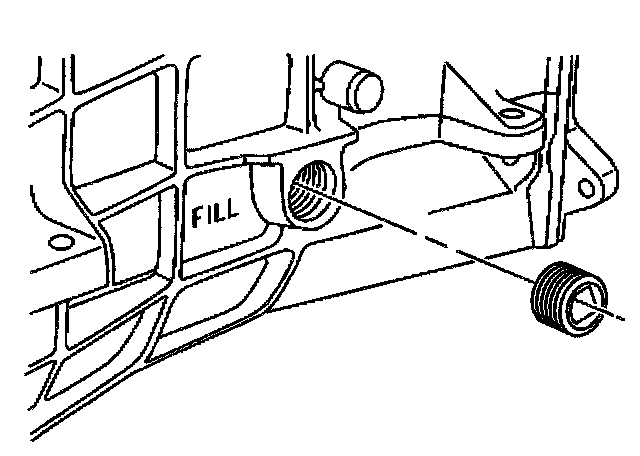

3. Remove the transmission case fill plug.

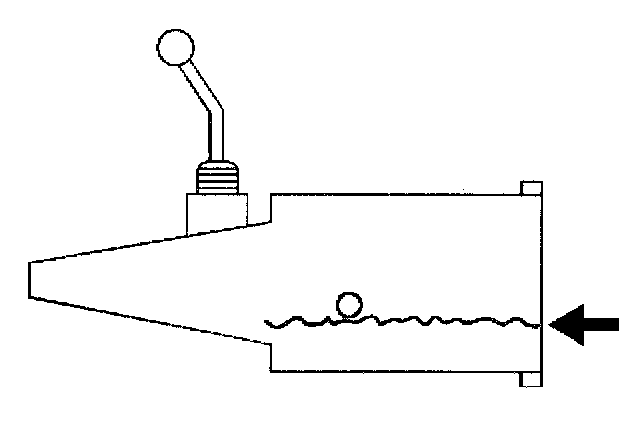

4. Check that the transmission fluid level is even with the bottom of the fill plug hole.
5. Add Dexron III transmission fluid, if necessary.

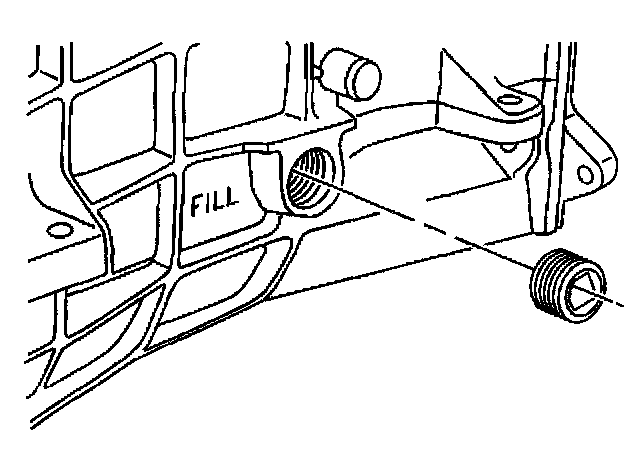

6. Install the transmission case fill plug.
^ Tighten the transmission case fill plug to 27 Nm (20 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

7. Lower the vehicle.
